FAG INA Schaeffler
INA
BE20-XL
Radial insert ball bearing BE20-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
55 mm
Outside diameter
Cr
12,800 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
Cur
345 N
Fatigue load limit, radial
≈m
0.188 kg
Weight

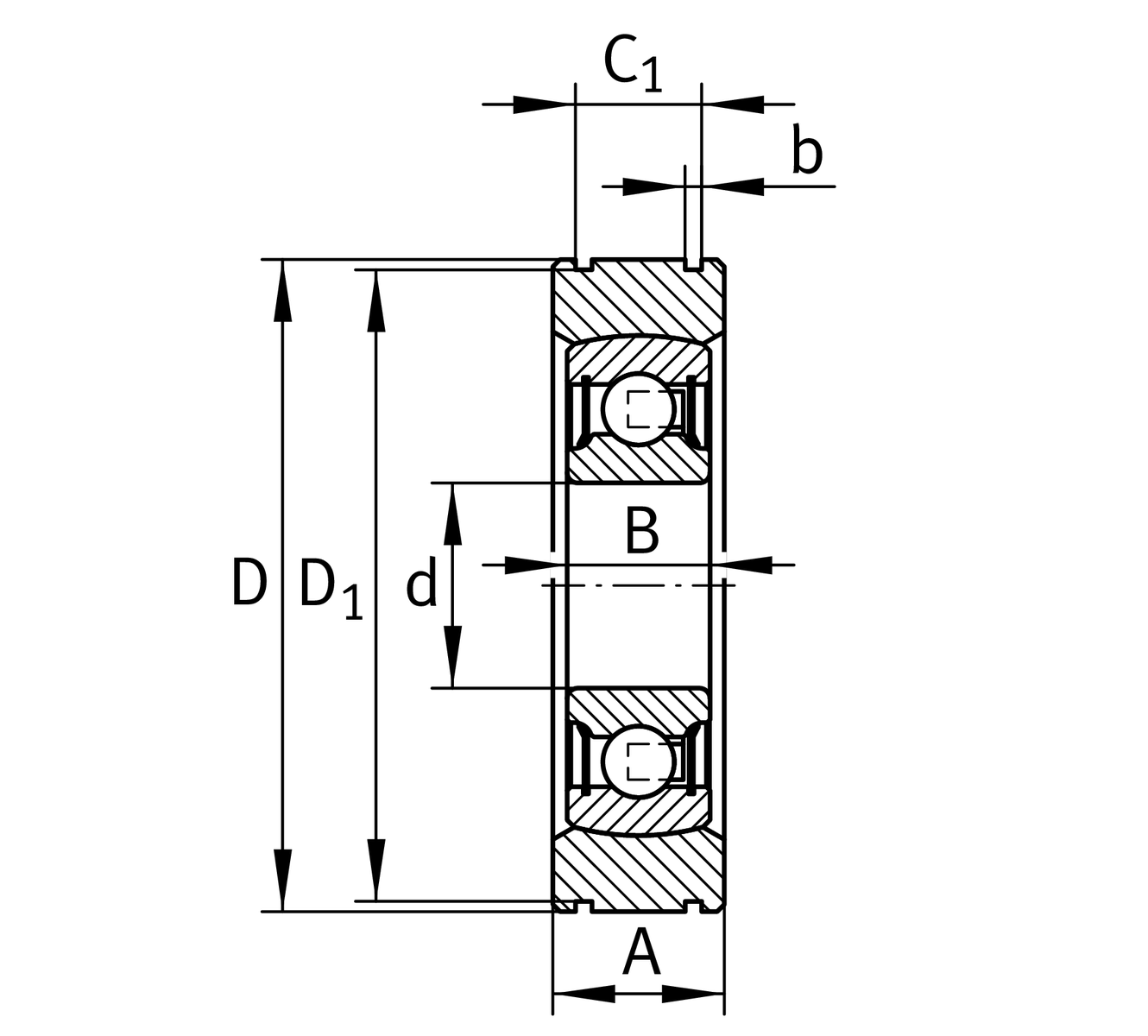

Dimensions
A
16 mm
Width, outer ring
C1
11.2 mm
Distance ring grooves
0.2 mm
Upper distance ring groove tolerance
b
1.35 mm
Width retaining slot
0.3 mm
Nut width upper tolerance
D1
52.6 mm
Diameter of groove
-0.5 mm
Nut diameter lower tolerance

Calculation factors
f0
13.1
Calculation factor

Additional information
204-XL-NPP-B
Bearing designation
