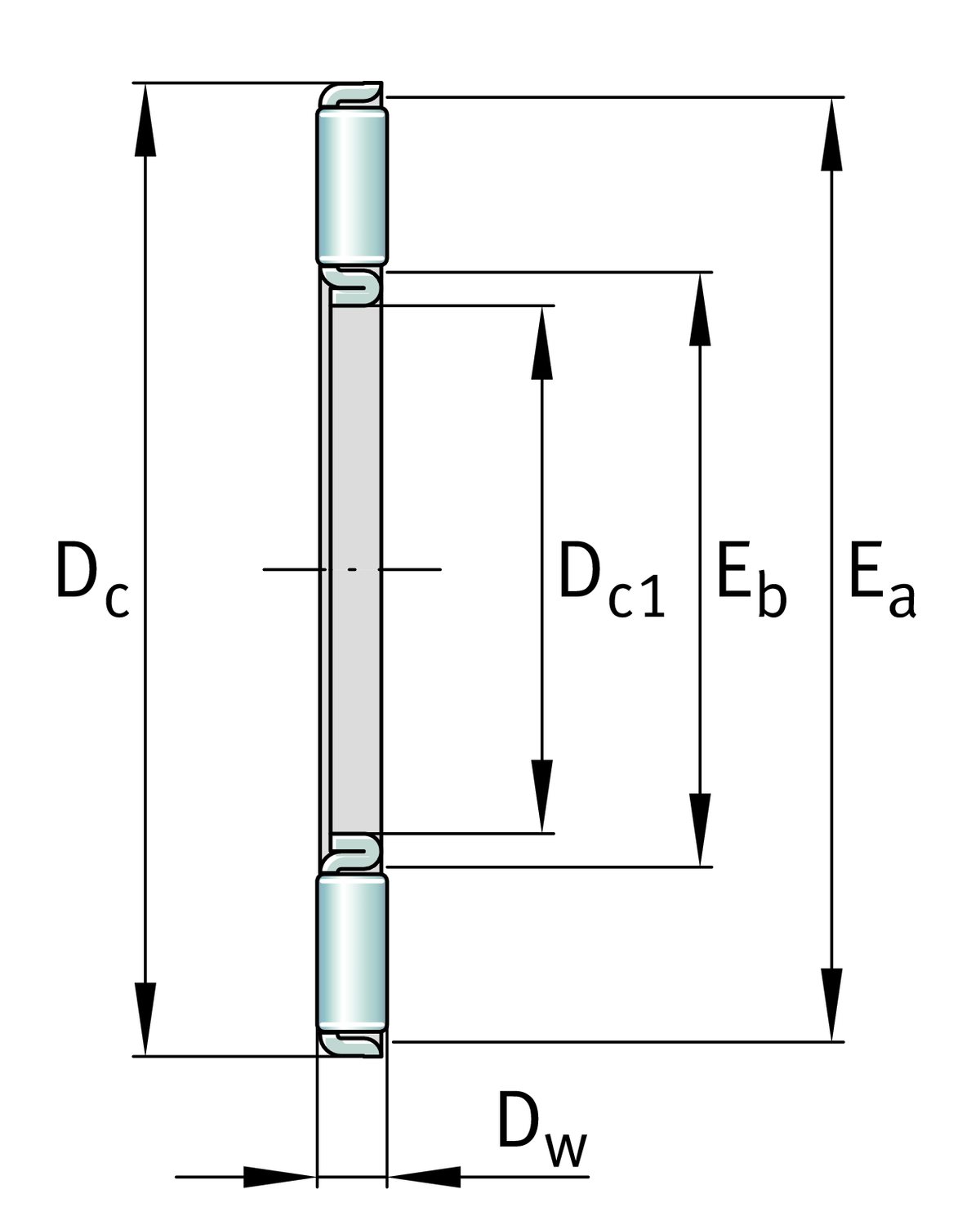

Main Dimensions & Performance Data
| Dc1 | 20 mm | Bore diameter cage |
| Dc | 35 mm | Outside diameter |
| Dw | 2 mm | Rolling element diameter |

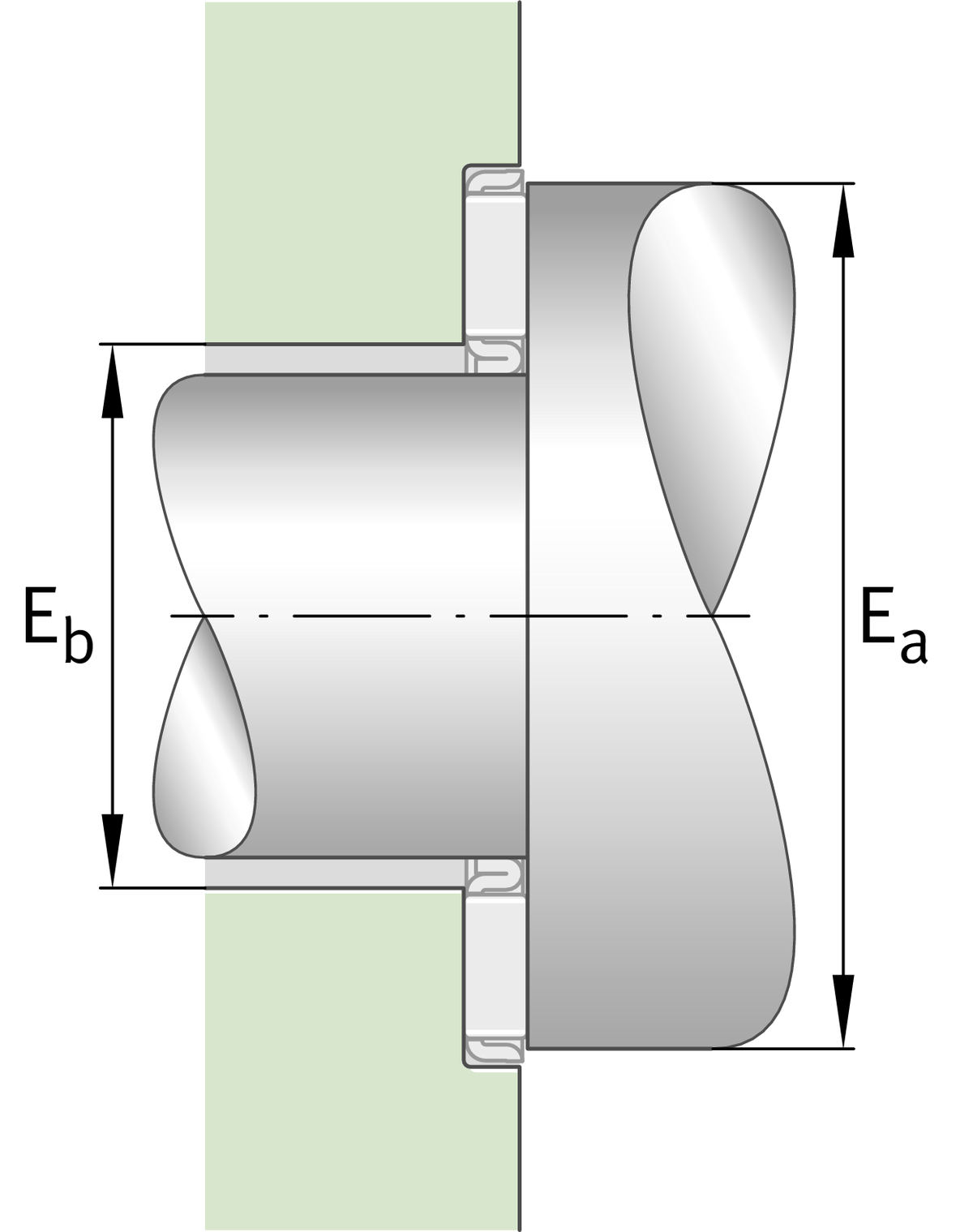

| Ea | 34 mm | Raceway dimension |
| Eb | 22 mm | Raceway dimension |
| ca | 13,100 N | Basic dynamic load rating, axial |
| c0a | 46,500 N | Basic static load rating, axial |
| cua | 4,800 N | Fatigue load limit, axial |
| nG | 10,500 1/min | Limiting speed |
| nϑr | 4,350 1/min | Reference speed |
| ≈m | 5.4 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS2035 | Axial bearing washer |
