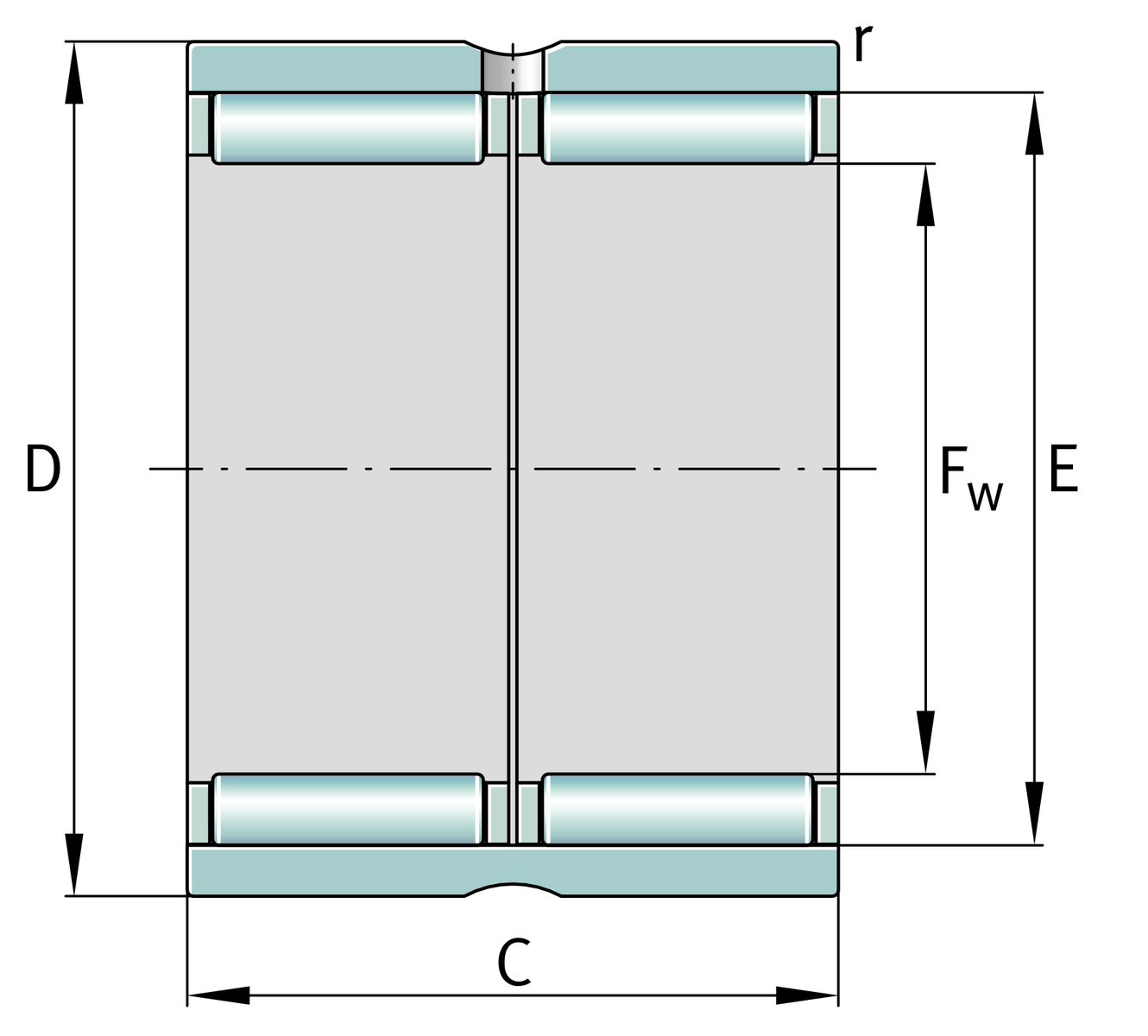

Main Dimensions & Performance Data
| Fw | 18 mm | Under roller diameter |
| D | 30 mm | Outside diameter |
| C | 24 mm | Width, outer ring |
| Cr | 24,800 N | Basic dynamic load rating, radial |
| C0r | 30,000 N | Basic static load rating, radial |
| Cur | 5,400 N | Fatigue load limit, radial |
| nG | 21,800 1/min | Limiting speed |
| nϑr | 14,000 1/min | Reference speed |
| ≈m | 69 g | Weight |

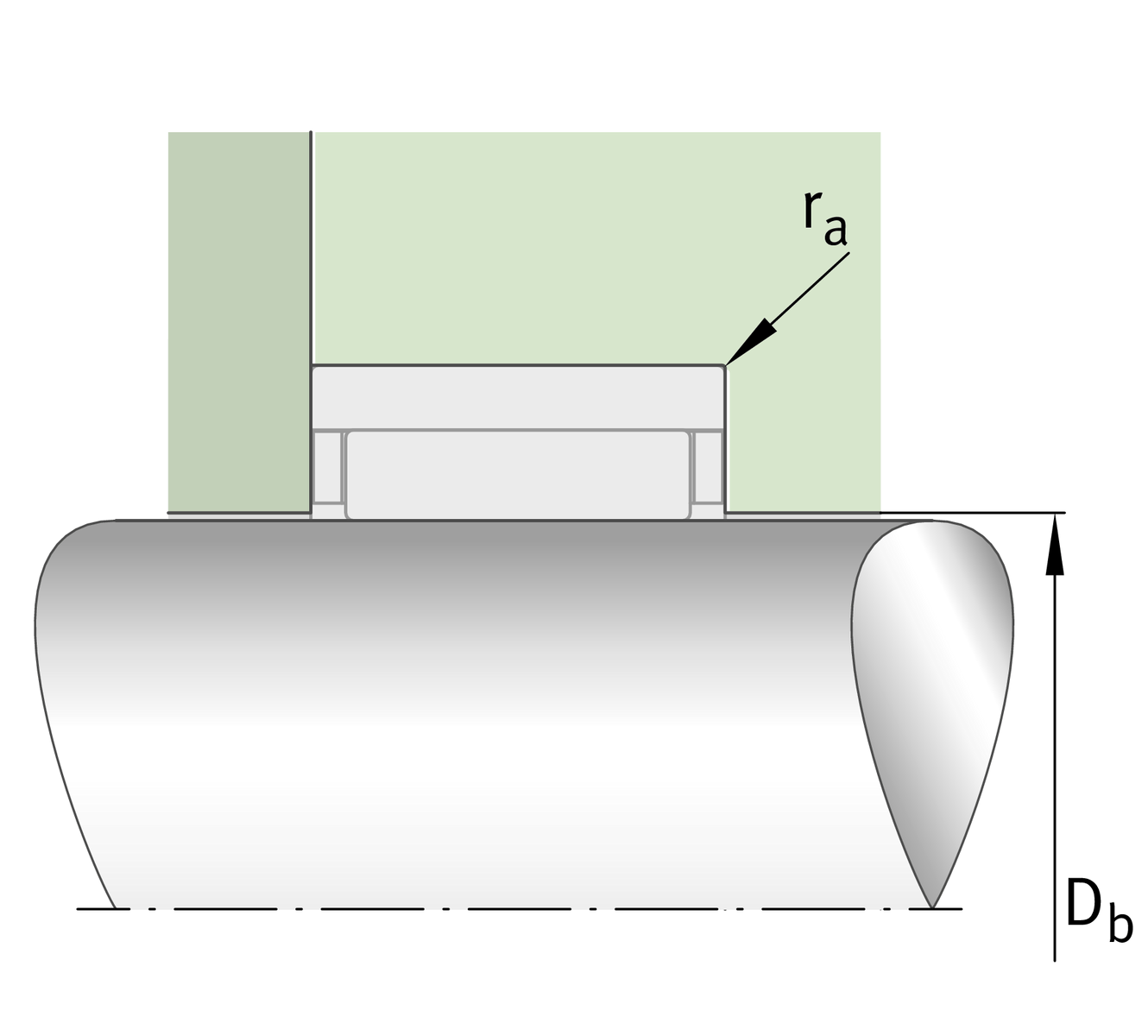

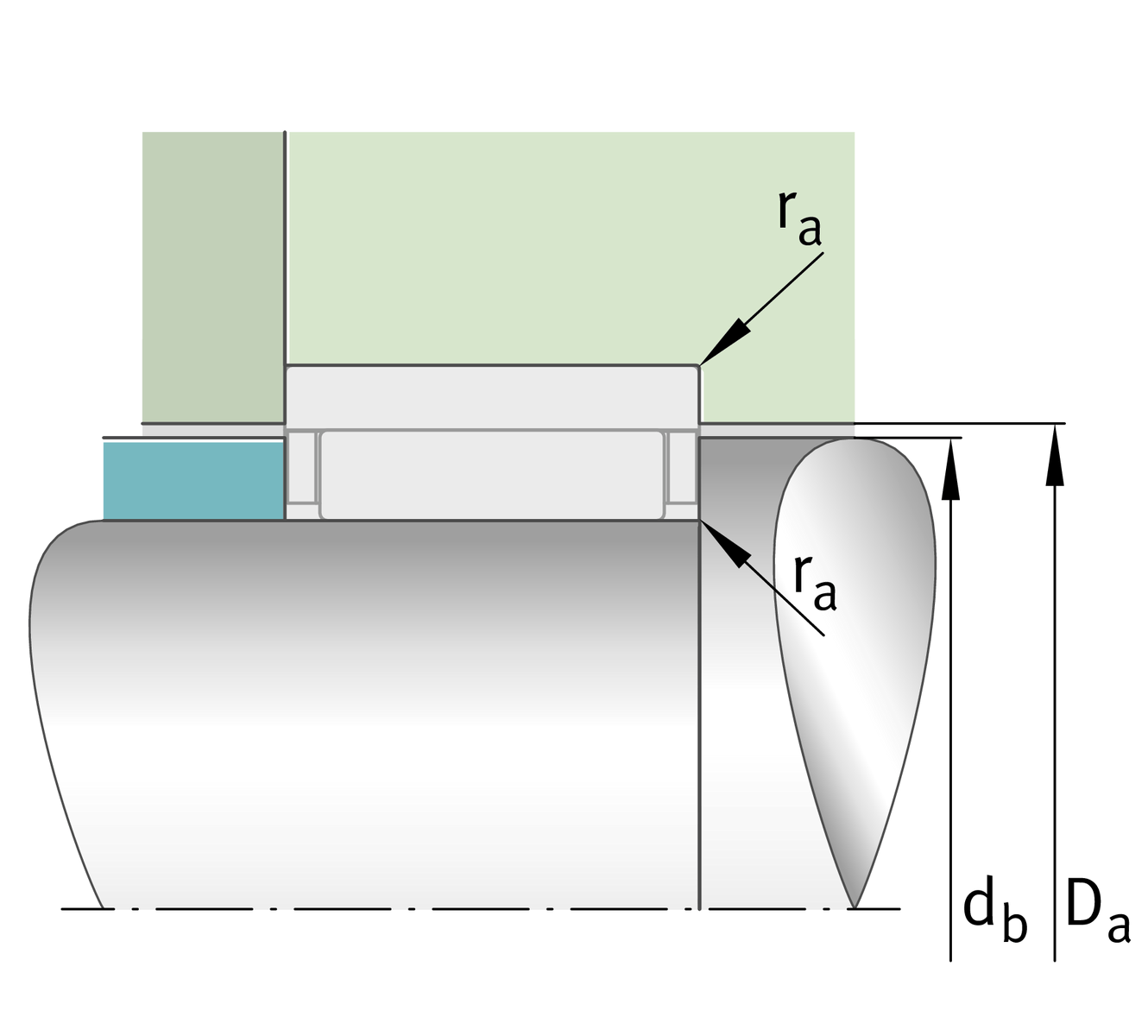

Mounting dimensions
| Db | 18.4 mm | Shoulder diameter axial guidance NK/housing |
| db | 23.6 mm | Shoulder diameter axial guidance NK/shaft |
| Da | 24.5 mm | Shoulder diameter outer ring |
| ra max | 0.3 mm | Maximum recess radius |
Dimensions
| E | 24 mm | Raceway diameter outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Lubrication hole | ASR1 | ASR1 |
| Number of rolling element rows | ZW | Double-row design |
