Main Dimensions & Performance Data
| d | 110 mm | Bore diameter |
| D | 200 mm | Outside diameter |
| B | 38 mm | Width |
| Cr | 345,000 N | Basic dynamic load rating, radial |
| C0r | 3,650,000 N | Basic static load rating, radial |
| Cur | 78,000 N | Fatigue load limit, radial |
| nG | 5,400 1/min | Limiting speed |
| nϑr | 3,300 1/min | Reference speed |
| ≈m | 5.39 kg | Weight |
Mounting dimensions
| da max | 132 mm | Maximum diameter of shaft shoulder |
| Da max | 188 mm | Maximum diameter of housing shoulder |

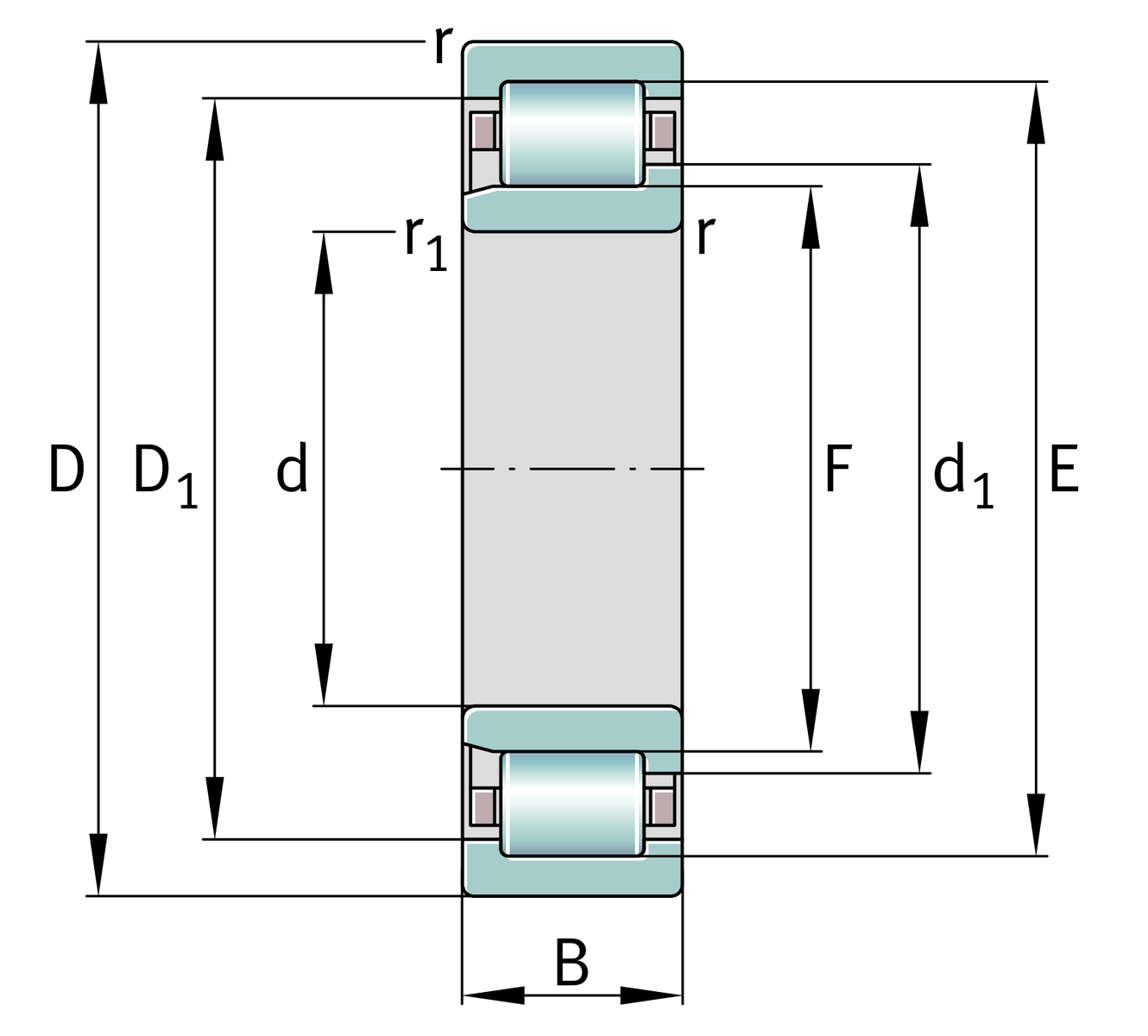

Dimensions
| rmin | 2.1 mm | Minimum chamfer dimension |
| r1 min | 2.1 mm | Minimum chamfer dimension |
| s | 1.5 mm | Axial displacement |
| E | 180.5 mm | Raceway diameter outer ring |
| F | 132.5 mm | Raceway diameter inner ring |
| D1 min | 173.82 mm | Minimum rib diameter outer ring |
| d1 | 141.55 mm | Maximum rib diameter inner ring |
Your current product variant
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Tolerance class | PN | Normal (PN) |
| Number of rolling element rows | 1 | Single-row design |
