FAG INA Schaeffler
INA
RSRB16-222-L0-FA125
Idler pulley units RSRB16-222-L0-FA125
Thêm vào yêu cầu báo giá

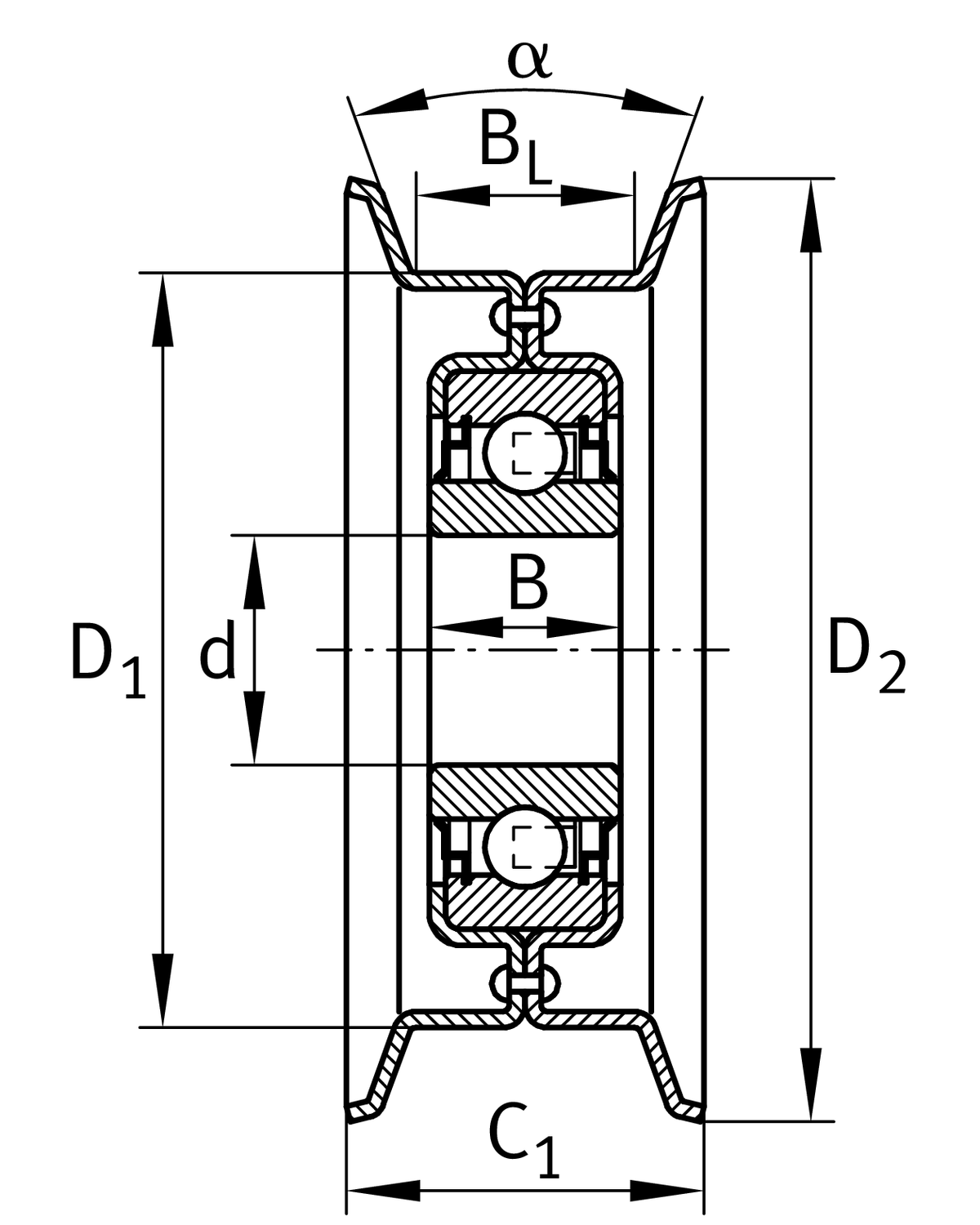

Main Dimensions & Performance Data
d
16.2 mm
Bore diameter
d
0.1 mm
Upper tolerance
d
0 mm
Lower tolerance
D1
203.2 mm
Raceway diameter idler pulley
C1
48.4 mm
Width idler pulley
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
219 N
Fatigue load limit, radial
≈m
1.31 kg
Weight

Mounting dimensions
a
10 °
Angle idler pulley raceway

Dimensions
D2
222 mm
Outside diameter idler pulley
B
18.3 mm
Width
BL
38.1 mm
Width idler pulley raceway

Your current product variant
Manufacturing instructionFA125Unit with Corrotect coating, corrosion-resistant
