BKE.TKSD45
Braking/clamping element BKE.TKSD45
Thêm vào yêu cầu báo giá

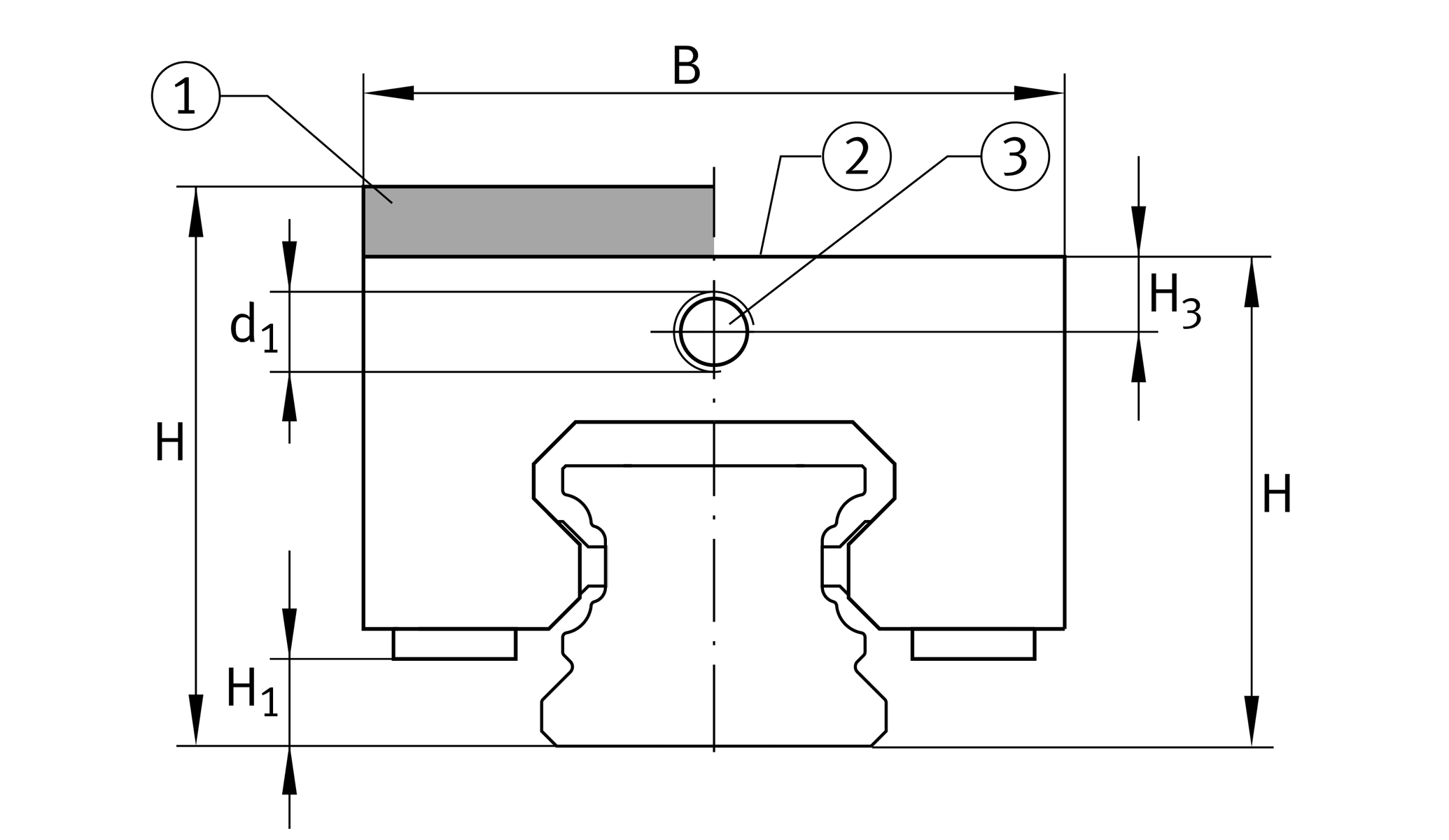

Main Dimensions & Performance Data
H
60 mm
height sytem
without
adapter plate
B
85 mm
width of braking and clamping element
L
141 mm
length braking and clamping element
4,300 N
clamping force 1
≈m
2.96 kg
Weight

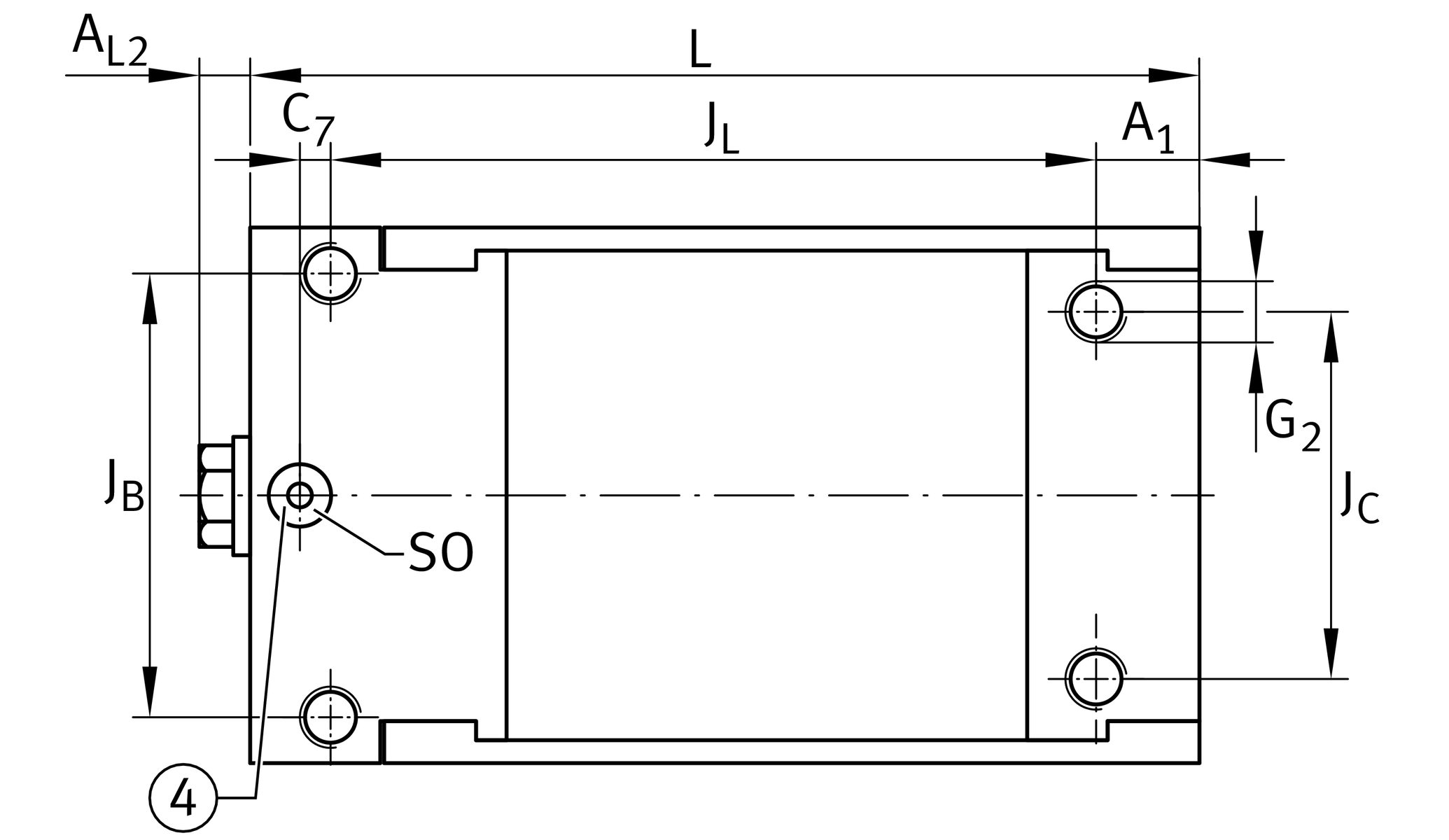

Dimensions
JB
70 mm
hole pattern
JC
60 mm
hole pattern
A1
15 mm
distance
JL
113 mm
hole pattern
H1
11.8 mm
space (system)
H3
10 mm
mounting dimension
AL2
5 mm
distance
d1
M8x1
size thread
G2
M10
size thread above for DIN ISO 4762-12.9
MA
83 Nm
tightening torque above 2

Your current product variant
Size code45
