RSRA16-186-L0
Idler pulley units RSRA16-186-L0
Thêm vào yêu cầu báo giá

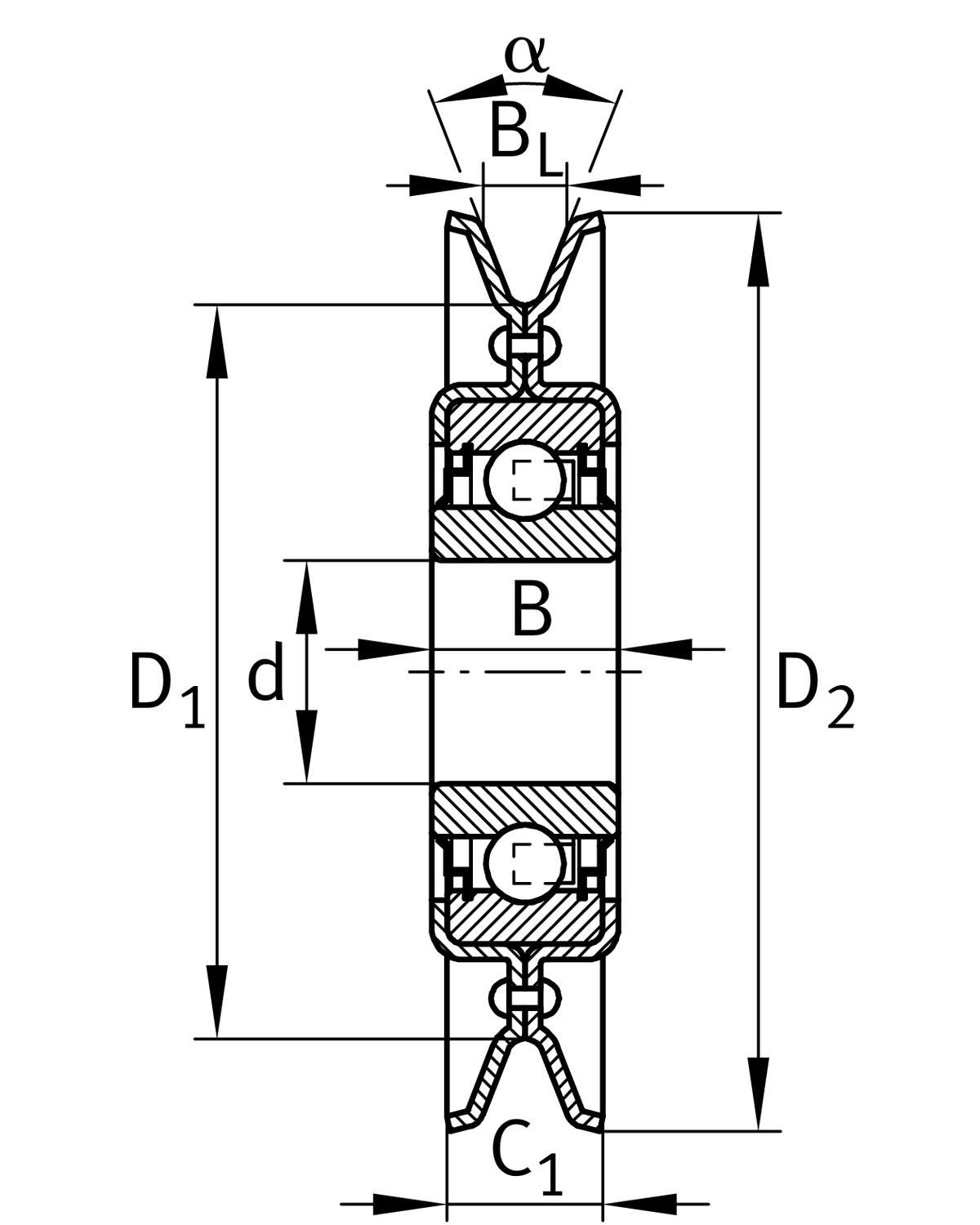

Main Dimensions & Performance Data
d
16 mm
Bore diameter
d
0.26 mm
Upper tolerance
d
0.13 mm
Lower tolerance
D1
130.8 mm
Raceway diameter idler pulley
C1
32 mm
Width idler pulley
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
219 N
Fatigue load limit, radial
≈m
0.99 kg
Weight

Mounting dimensions
a
32 °
Angle idler pulley raceway
13, 17, 20, 22
Vee belt size

Dimensions
D2
186 mm
Outside diameter idler pulley
B
18.3 mm
Width
BL
22.1 mm
Width idler pulley raceway
