Technical data
Relubrication of tooth sets | Usage | |
left hand helical teeth | Design | |
radial | Lubricant feed | |
open cell PU foam | Material | |
| top | -30 °C ... +140 °C | Operating temperature |
5 m/s | Max. permissible circumferential speed at outside diameter | |
Oil, greases up to NLGI 2 | Lubricant | |

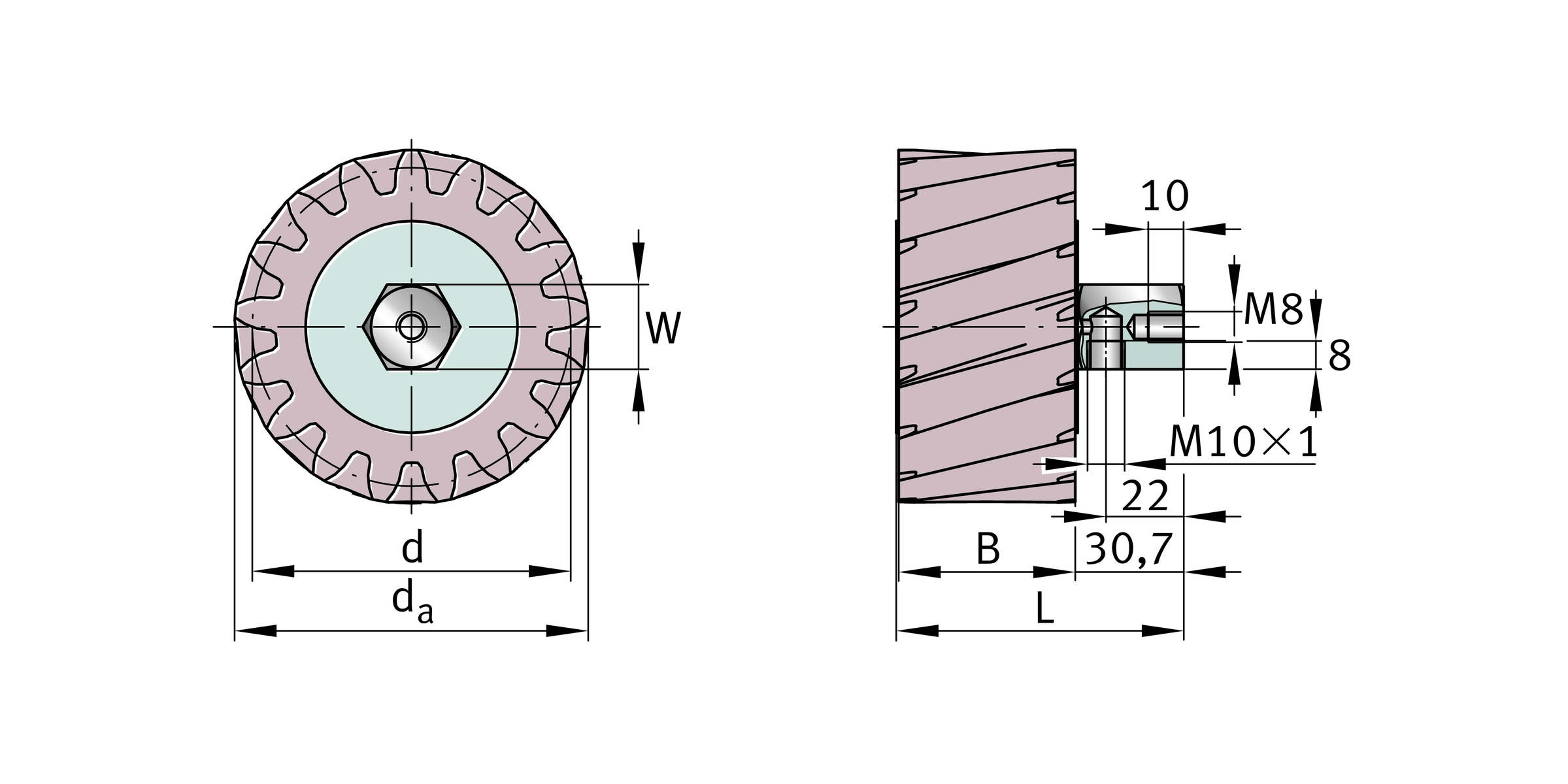

| m | 8 mm | Modulus |
| z | 17 | Teeth number |
| d | 144.3 mm | Pitch circle diameter |
| da | 160.3 mm | |
| B | 80 mm | |
| L | 111 mm | |
| β | 19.53 ° | Helix angle |
| ≈m | 0.8 kg | Weight |
Your current product variant
| Version | SL | Lubrication gears, left hand helical teeth |
