FAG INA Schaeffler
Schaeffler
ARCALUB-X.PINION-MD6,0-Z17-B60-G-W
Lubrication gear ARCALUB-X.PINION-MD6,0-Z17-B60-G-W
Thêm vào yêu cầu báo giá

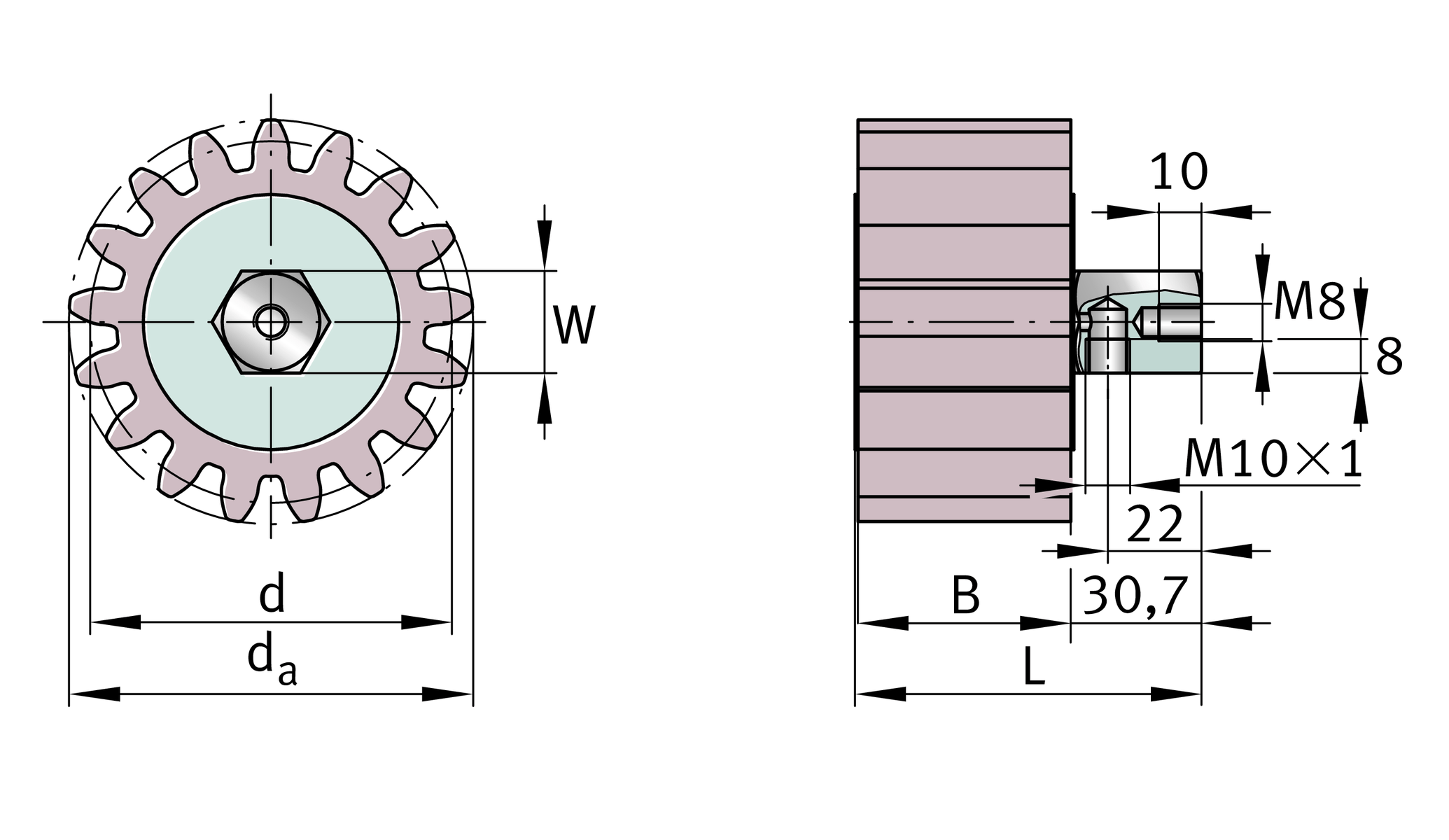

Technical data
Relubrication of tooth sets
Usage
straight teeth
Design
radial
Lubricant feed
open cell PU foam
Material
top
-30 °C ... +140 °C
Operating temperature
5 m/s
Max. permissible circumferential speed at outside diameter
Oil, greases up to NLGI 2
Lubricant
m
6 mm
Modulus
z
17
Teeth number
d
102 mm
Pitch circle diameter
da
114 mm
B
60 mm
L
91.4 mm
≈m
0.7 kg
Weight

Your current product variant
VersionGLubrication gears, straight teeth
