ARCALUB-X.PINION-MD2,0-Z17-B20-SR-W
Lubrication gear ARCALUB-X.PINION-MD2,0-Z17-B20-SR-W
Thêm vào yêu cầu báo giá
Technical data
Relubrication of tooth sets
Usage
right hand helical teeth
Design
radial
Lubricant feed
open cell PU foam
Material
top
-30 °C ... +140 °C
Operating temperature
5 m/s
Max. permissible circumferential speed at outside diameter
Oil, greases up to NLGI 2
Lubricant

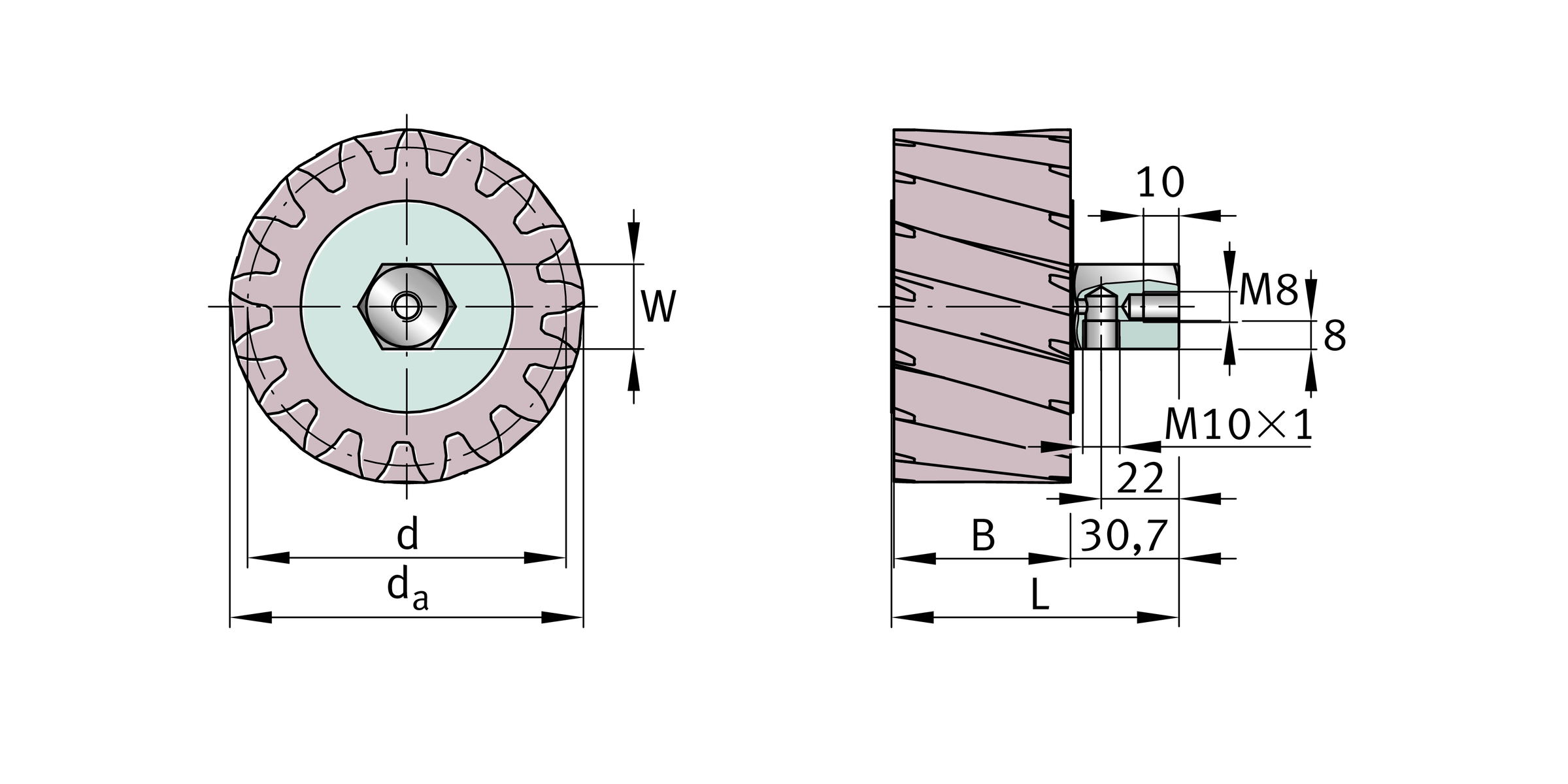

m
2 mm
Modulus
z
17
Teeth number
d
36.08 mm
Pitch circle diameter
da
40.1 mm
B
20 mm
L
51.4 mm
β
19.53 °
Helix angle
≈m
0.3 kg
Weight

Your current product variant
VersionSRLubrication gears, right hand helical teeth
