Technical data
Relubrication of tooth sets | Usage | |
straight teeth | Design | |
axial | Lubricant feed | |
open cell PU foam | Material | |
| top | -30 °C ... +140 °C | Operating temperature |
5 m/s | Max. permissible circumferential speed at outside diameter | |
Oil, greases up to NLGI 2 | Lubricant | |

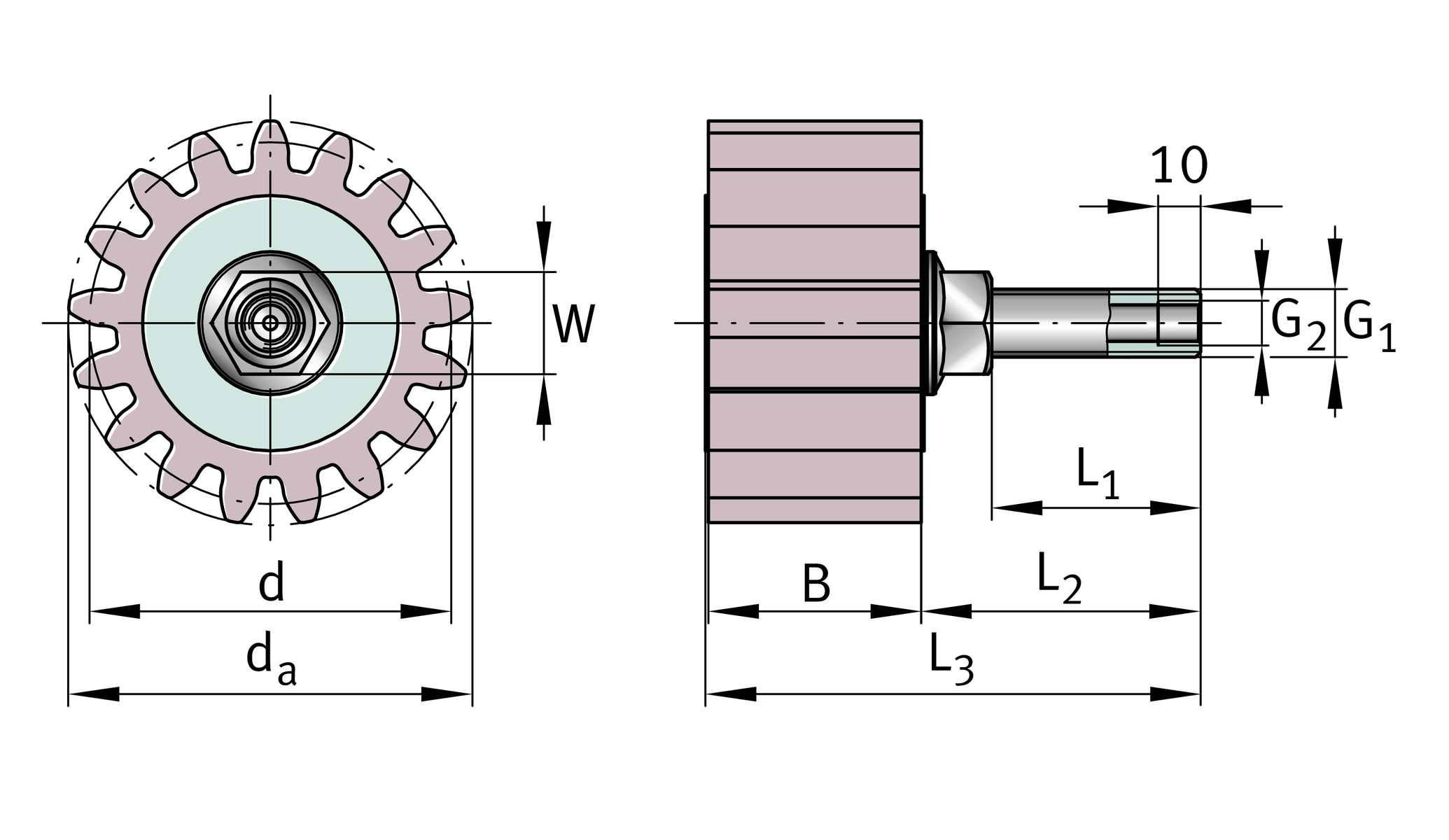

| m | 10 mm | Modulus |
| z | 17 | Teeth number |
| d | 170 mm | Pitch circle diameter |
| da | 190 mm | |
| B | 100 mm | |
| L1 | 49 mm | |
| L2 | 115.7 mm | |
| L3 | 166.4 mm | |
| G1 | M16 | Thread |
| G2 | M10x1 | Thread |
| W | 24 mm | Width across flats |
| ≈m | 0.9 kg | Weight |
Your current product variant
| Version | G | Lubrication gears, straight teeth |
