ARCALUB-X.CHAIN-PINION-16B1-Z8-G
Chain pinion ARCALUB-X.CHAIN-PINION-16B1-Z8-G
Thêm vào yêu cầu báo giá
Technical data
Lubrication of chains
Usage
Simplex (single-row)
Design
axial
Lubricant feed
top
0 °C … +60 °C
Operating temperature
7 m/s
Max. permissible circumferential speed at outside diameter
Oil
Lubricant
16 B-1
Chain type according to ISO 606
z
8
Teeth number

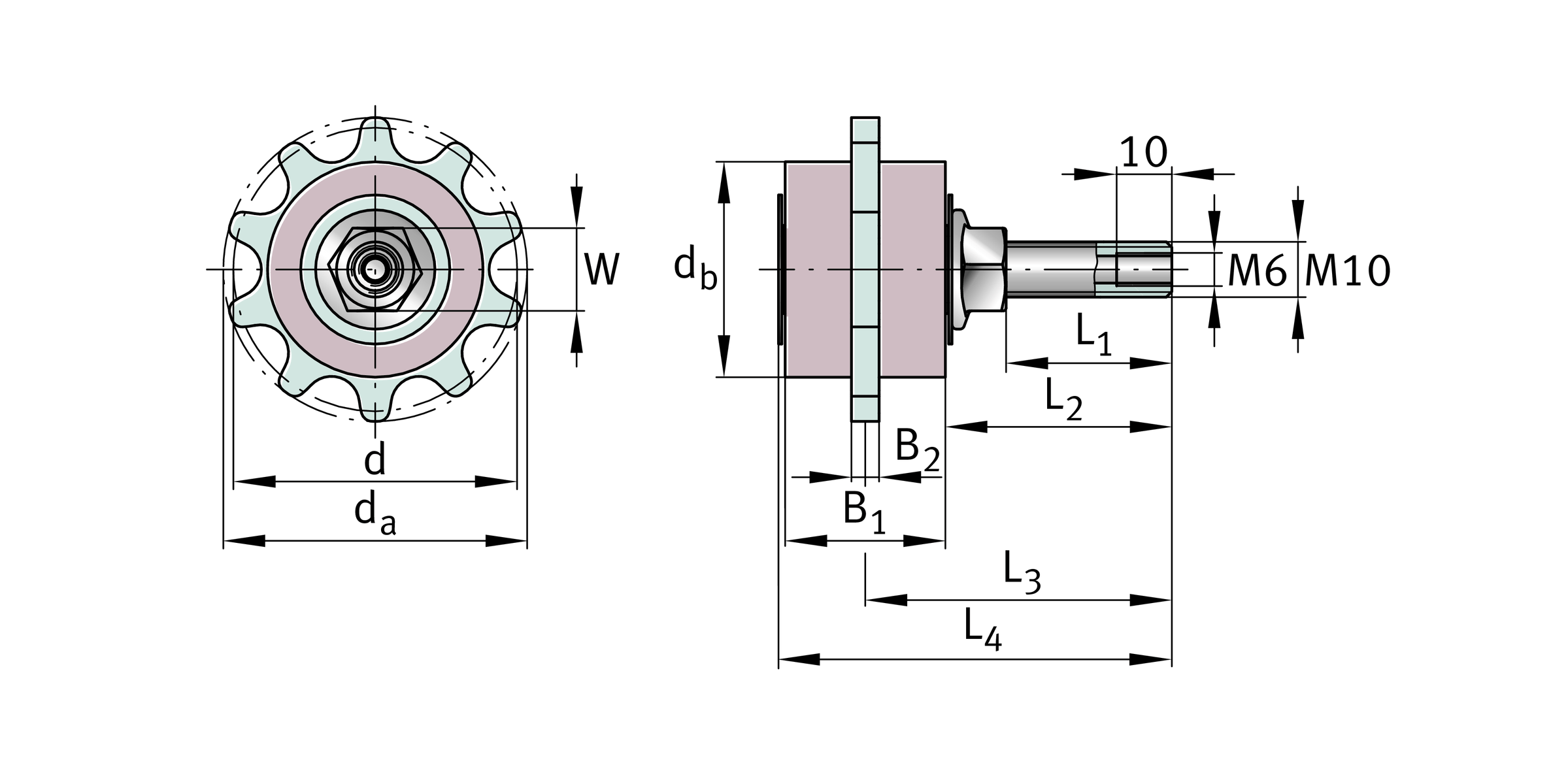

d
66.37 mm
Pitch circle diameter
da
75 mm
db
48 mm
B1
40 mm
B2
10 mm
L1
30 mm
L2
40.5 mm
L3
40 mm
L4
81.2 mm
W
15 mm
Width across flats
≈m
0.4 kg
Weight

Your current product variant
VersionAB-/B-1Chain lubrication pinions, simplex design
