MS3188
Securing plate MS3188
Thêm vào yêu cầu báo giá

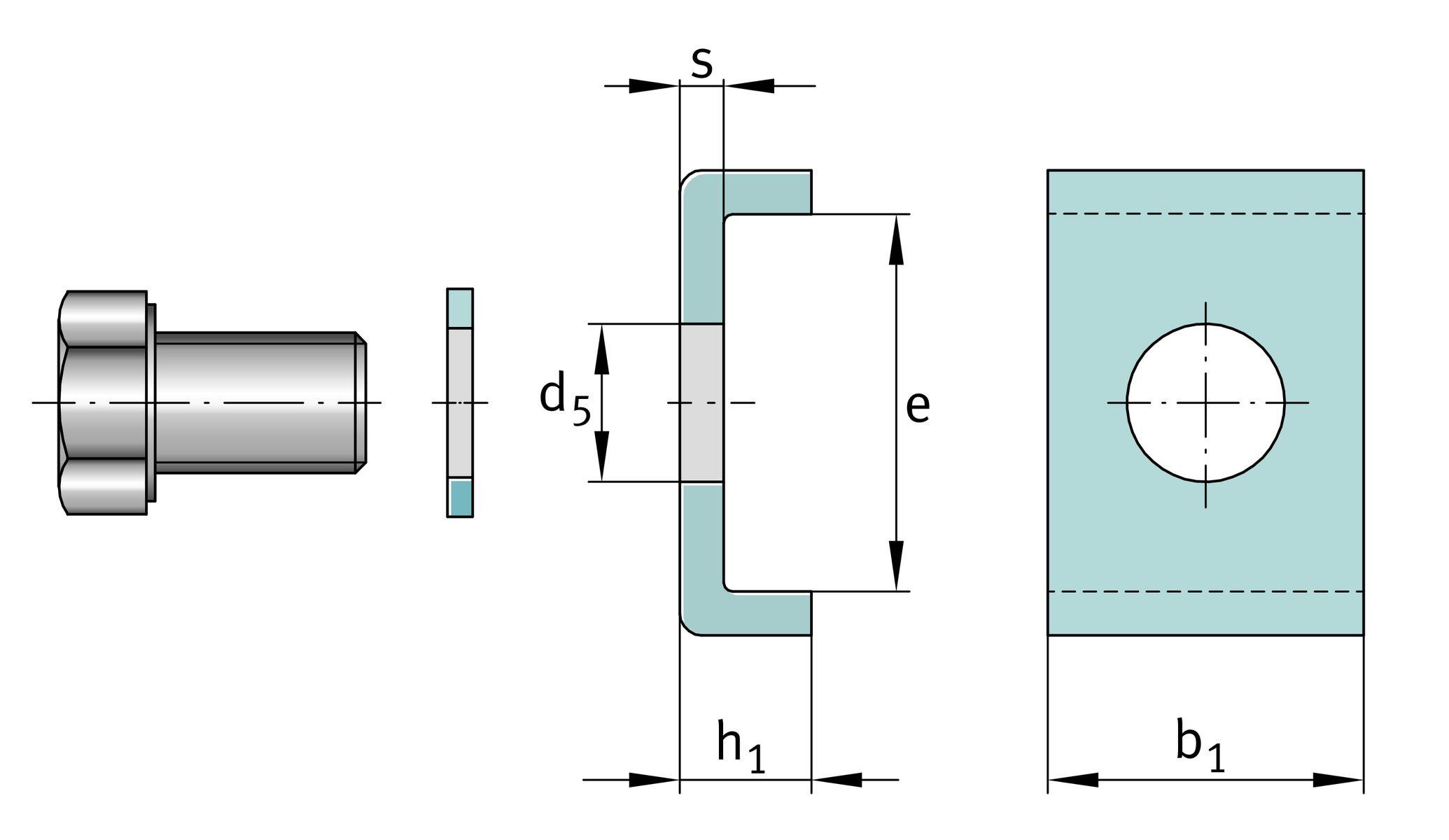

Main Dimensions & Performance Data
b1
36 mm
Length retaining ring
e
43 mm
Width inner retaining ring
h1
15 mm
Hight retaining ring
≈m
184 g
Weight

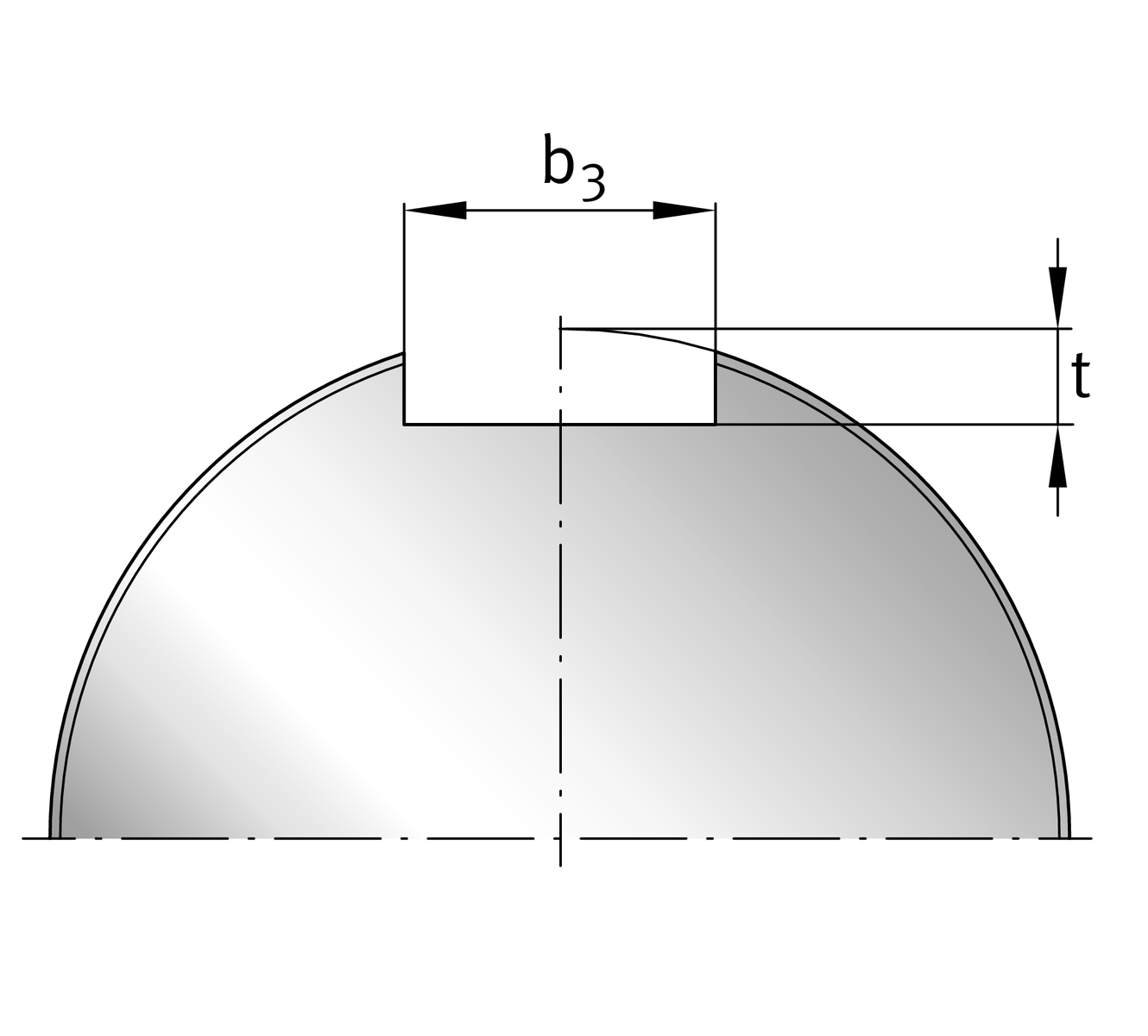

Mounting dimensions
b3
38 mm
Width retaining slot
t
10 mm
Hight retaining slot

Dimensions
s
5 mm
Thickness
d5
18 mm
Diameter fixing hole spacing

Additional information
M16x25
Hexagonal bolt
215 Nm
Mounting torque screw
