FAG INA Schaeffler
FAG
MS31/500
Securing plate MS31/500
Thêm vào yêu cầu báo giá

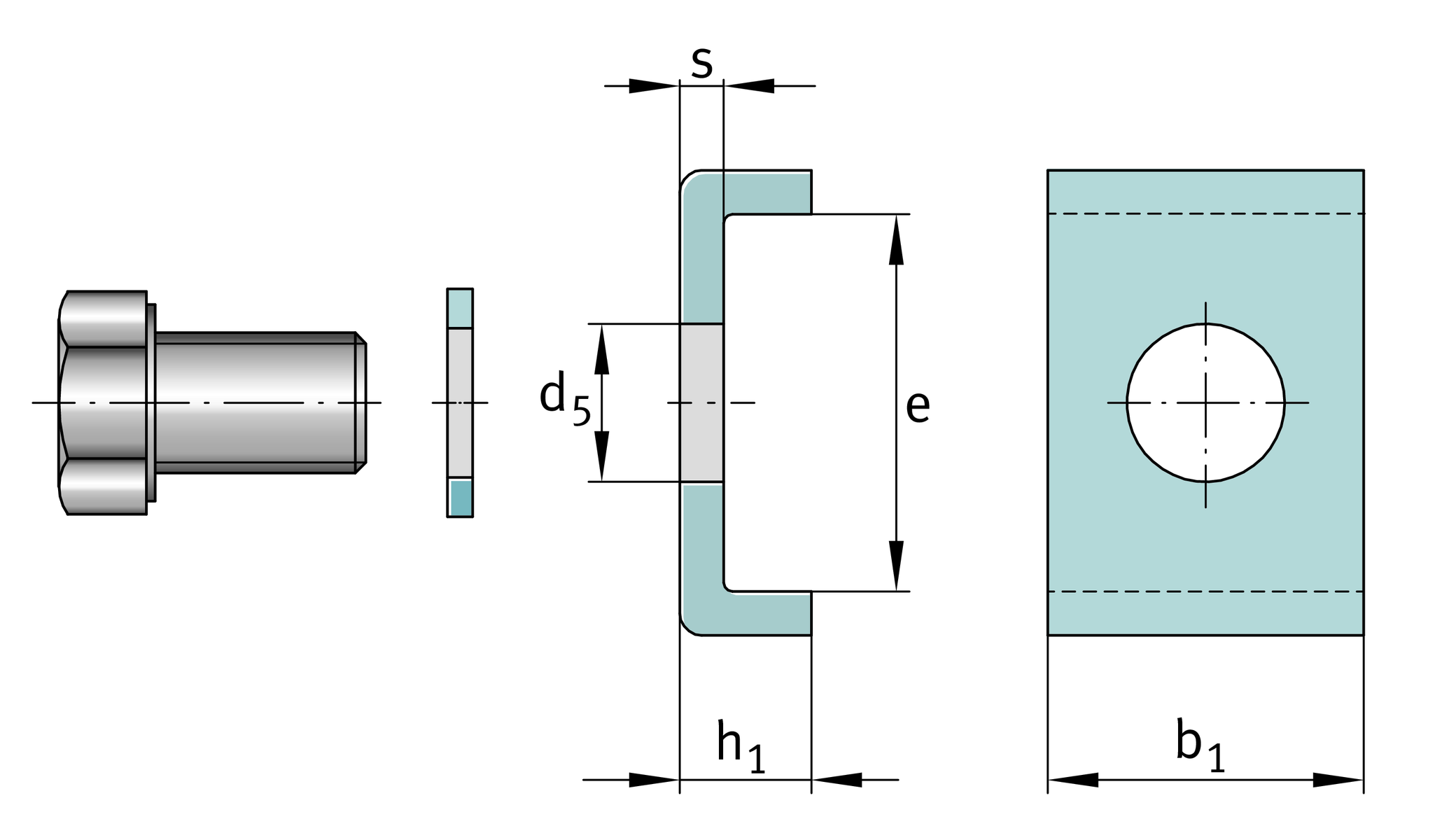

Main Dimensions & Performance Data
b1
40 mm
Length retaining ring
e
45 mm
Width inner retaining ring
h1
15 mm
Hight retaining ring
≈m
198 g
Weight

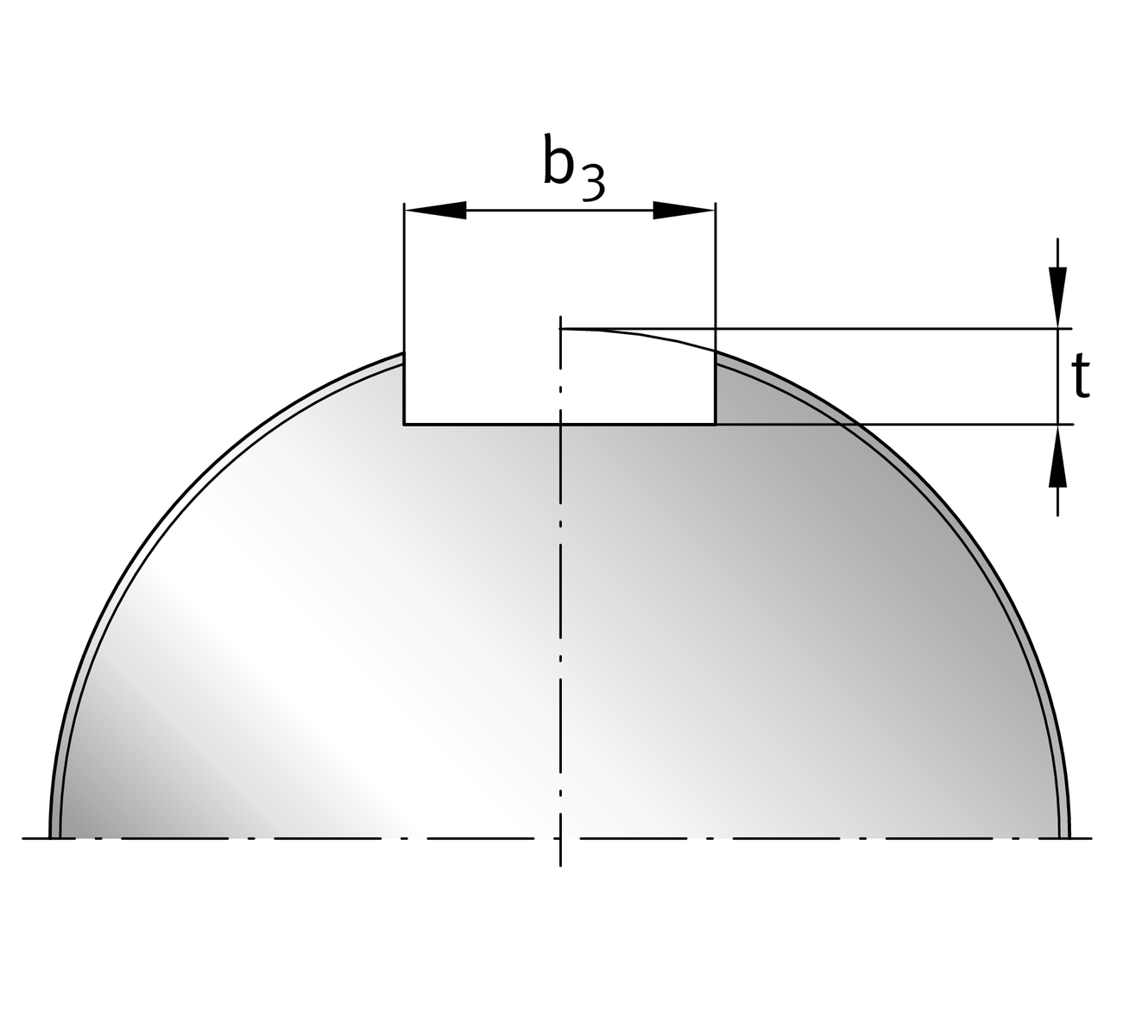

Mounting dimensions
b3
42 mm
Width retaining slot
t
12 mm
Hight retaining slot

Dimensions
s
5 mm
Thickness
d5
18 mm
Diameter fixing hole spacing

Additional information
M16x25
Hexagonal bolt
215 Nm
Mounting torque screw
