MS30/530
Securing plate MS30/530
Thêm vào yêu cầu báo giá

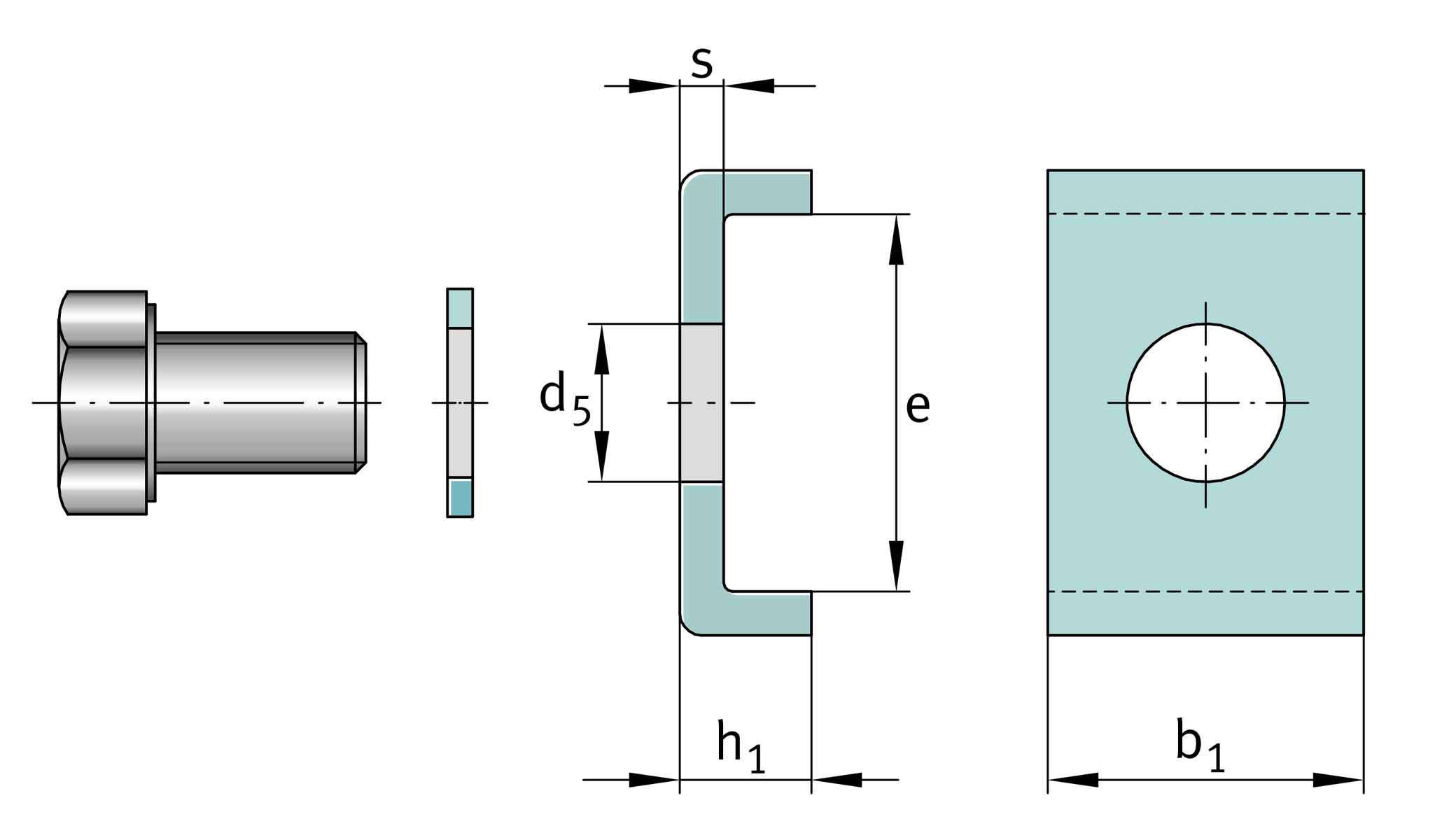

Main Dimensions & Performance Data
b1
40 mm
Length retaining ring
e
34 mm
Width inner retaining ring
h1
21 mm
Hight retaining ring
≈m
240 g
Weight

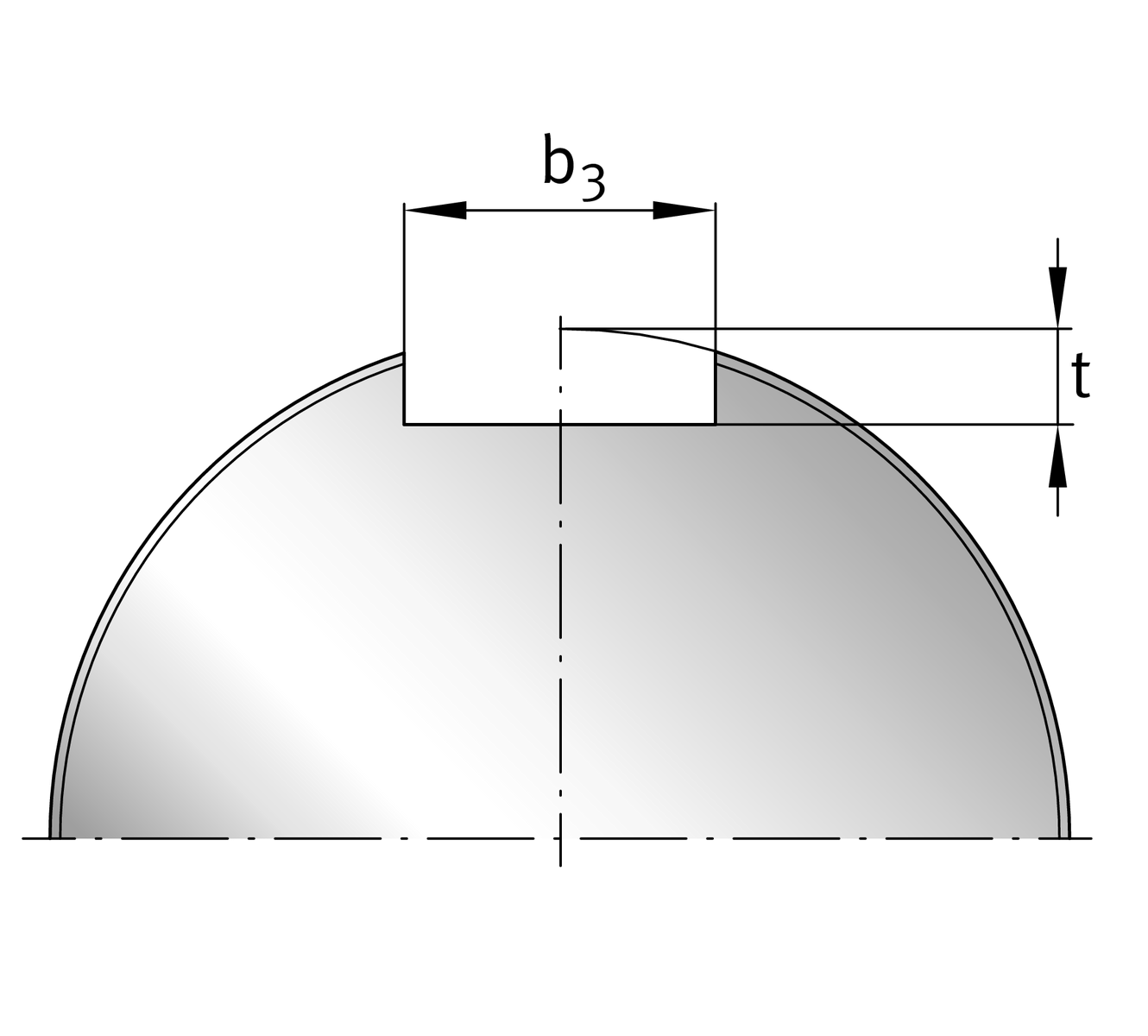

Mounting dimensions
b3
42 mm
Width retaining slot
t
14 mm
Hight retaining slot

Dimensions
s
7 mm
Thickness
d5
18 mm
Diameter fixing hole spacing

Additional information
M16x25
Hexagonal bolt
215 Nm
Mounting torque screw
