Main Dimensions & Performance Data
| d | 17 mm | Bore diameter |
| T | 9 mm | Height |
| Ca | 15,800 N | Basic dynamic load rating, axial |
| C0a | 33,500 N | Basic static load rating, axial |
| Cua | 4,700 N | Fatigue load limit, axial |
| nG | 12,300 1/min | Limiting speed |
| nϑr | 5,400 1/min | Reference speed |
| D | 30 mm | Outside diameter |
| ≈m | 23.6 g | Weight |

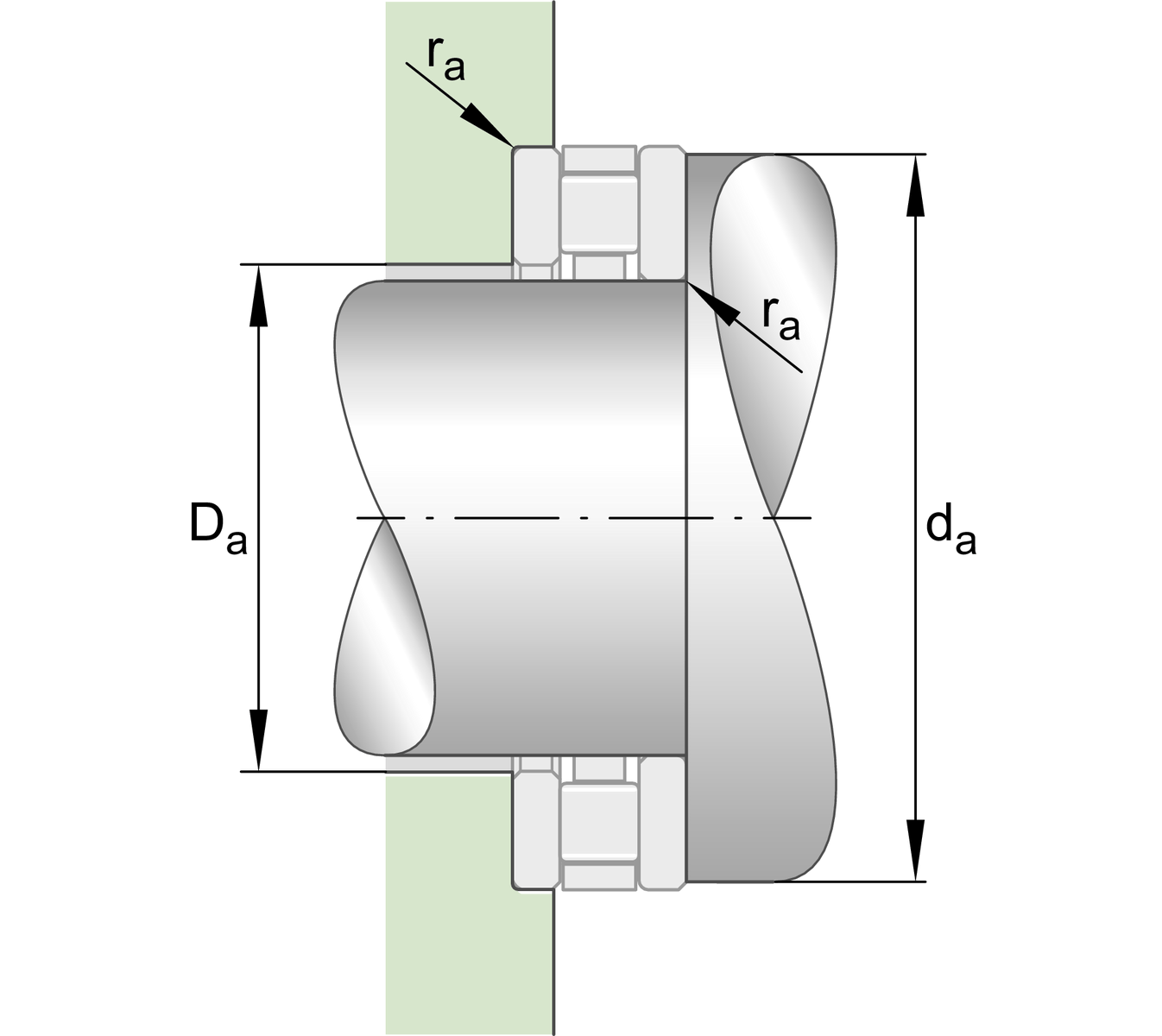

Mounting dimensions
| da min | 29 mm | Minimum diameter shaft shoulder |
| Da max | 18 mm | Maximum diameter of housing shoulder |
| ra max | 0.3 mm | Maximum recess radius |

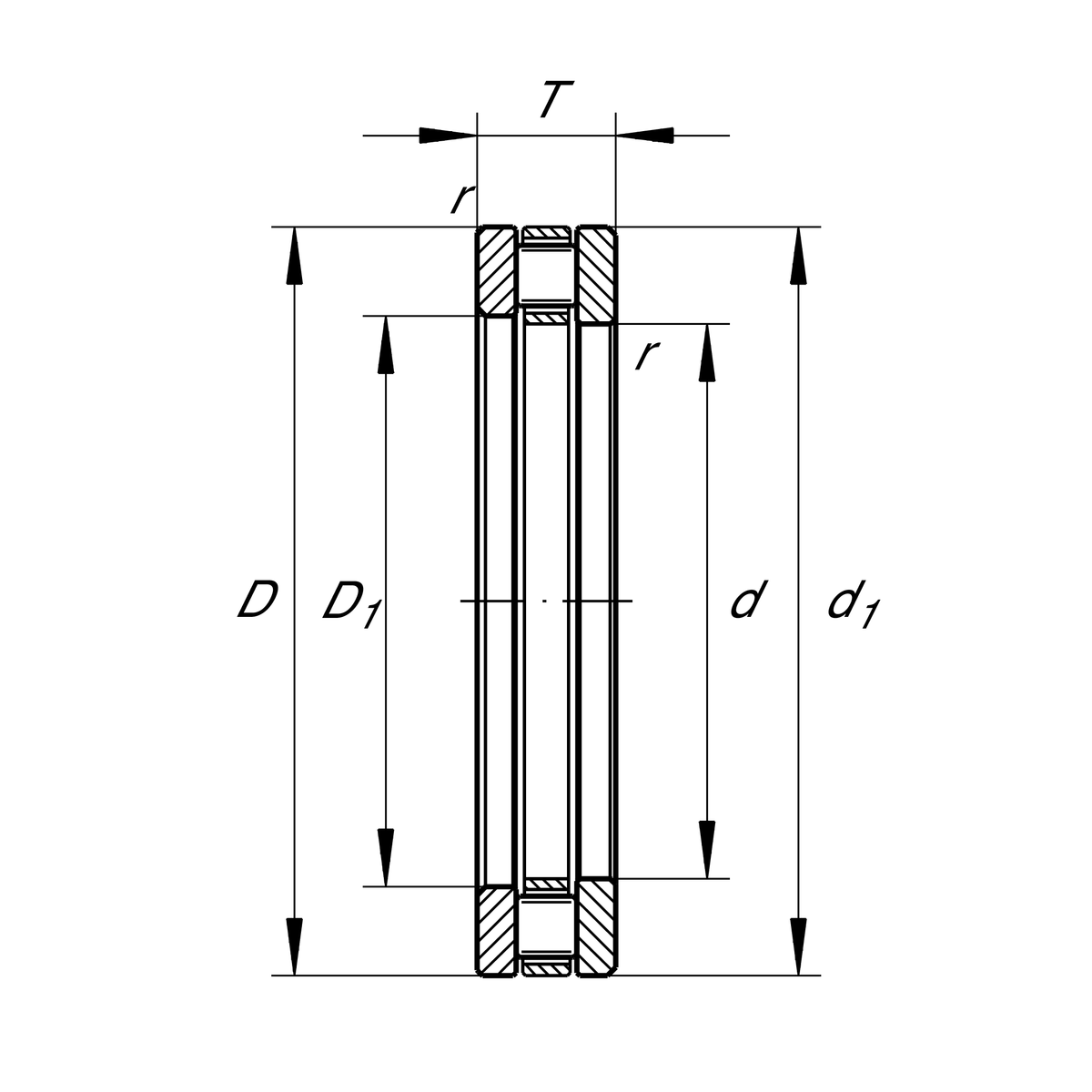

Dimensions
| D1 | 18 mm | Bore diameter housing washer |
| d1 | 30 mm | Rip diameter shaft washer |
| rmin | 0.3 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K81103-TV | Axial roller and cage assembly | |
GS81103 | Housing Washer | |
WS81103 | Shaft washer | |
LS1730 | Track Washer |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
