RSRA13-129-L0-L114
Idler pulley units RSRA13-129-L0-L114
Thêm vào yêu cầu báo giá

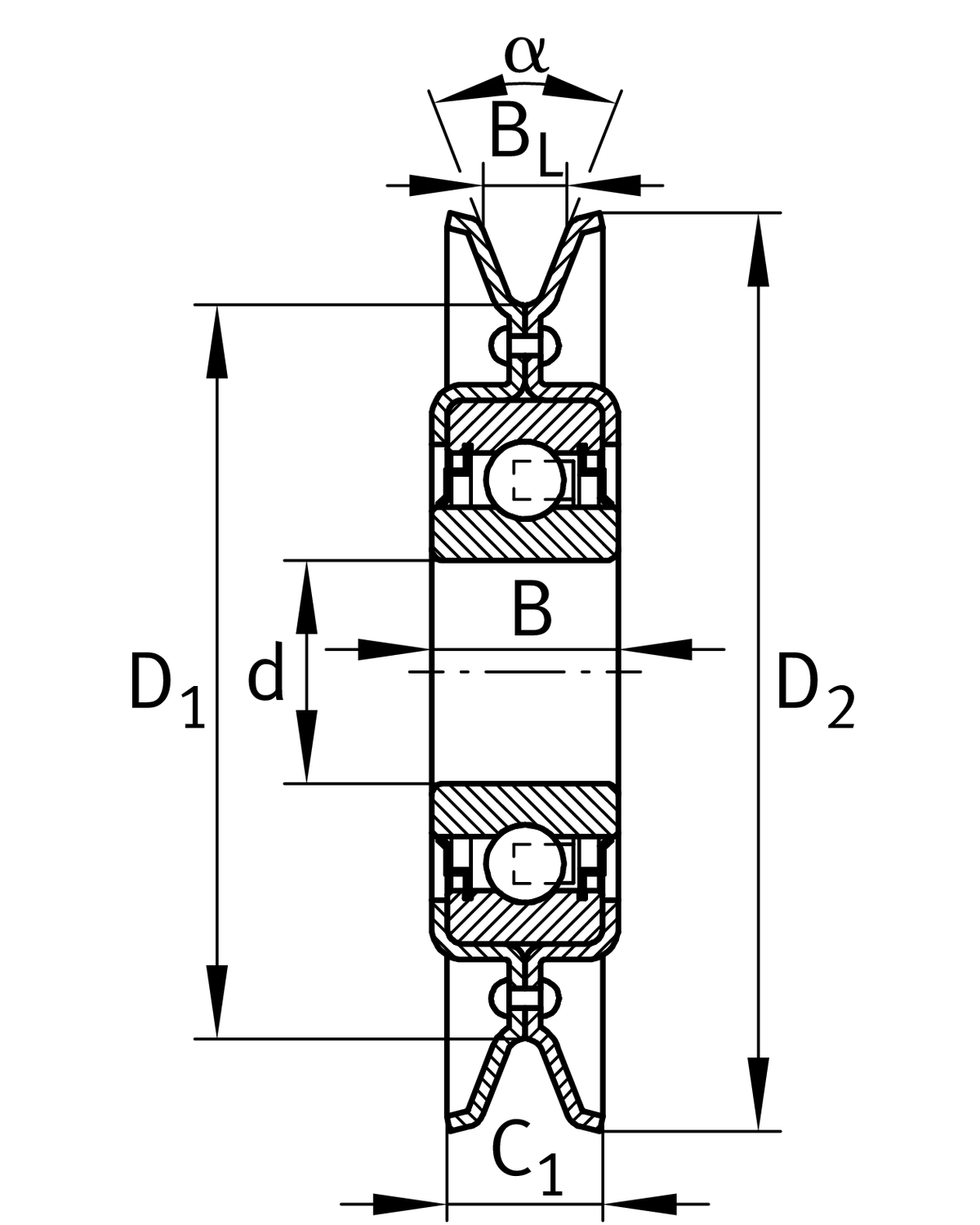

Main Dimensions & Performance Data
d
13 mm
Bore diameter
d
0.08 mm
Upper tolerance
d
-0.05 mm
Lower tolerance
D1
73.7 mm
Raceway diameter idler pulley
C1
32 mm
Width idler pulley
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
248 N
Fatigue load limit, radial
≈m
0.2 kg
Weight

Mounting dimensions
a
32 °
Angle idler pulley raceway
13, 17, 20, 22
Vee belt size

Dimensions
D2
129 mm
Outside diameter idler pulley
B
18.3 mm
Width
BL
22.1 mm
Width idler pulley raceway

Your current product variant
LubricantL114Grease (L114)
