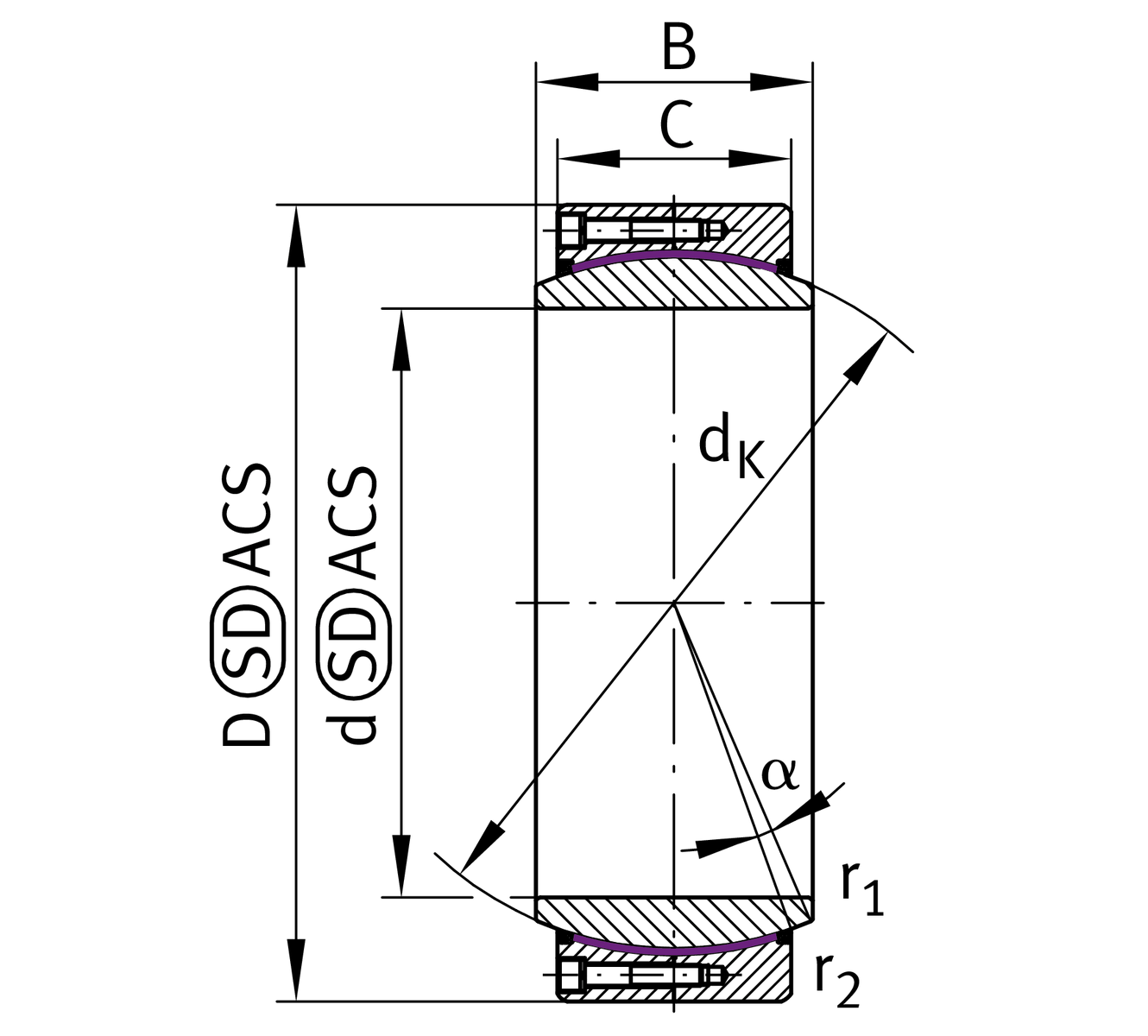

Main Dimensions & Performance Data
| d | 670 mm | Bore diameter bearing |
| D | 900 mm | Outside diameter bearing |
| B | 308 mm | Width Inner ring |
| C | 260 mm | Width Outer ring |
| Cr | 54,600,000 N | Basic dynamic load rating, radial |
| C0r | 91,100,000 N | Basic static load rating, radial |
| ≈m | 595.2 kg | Weight |

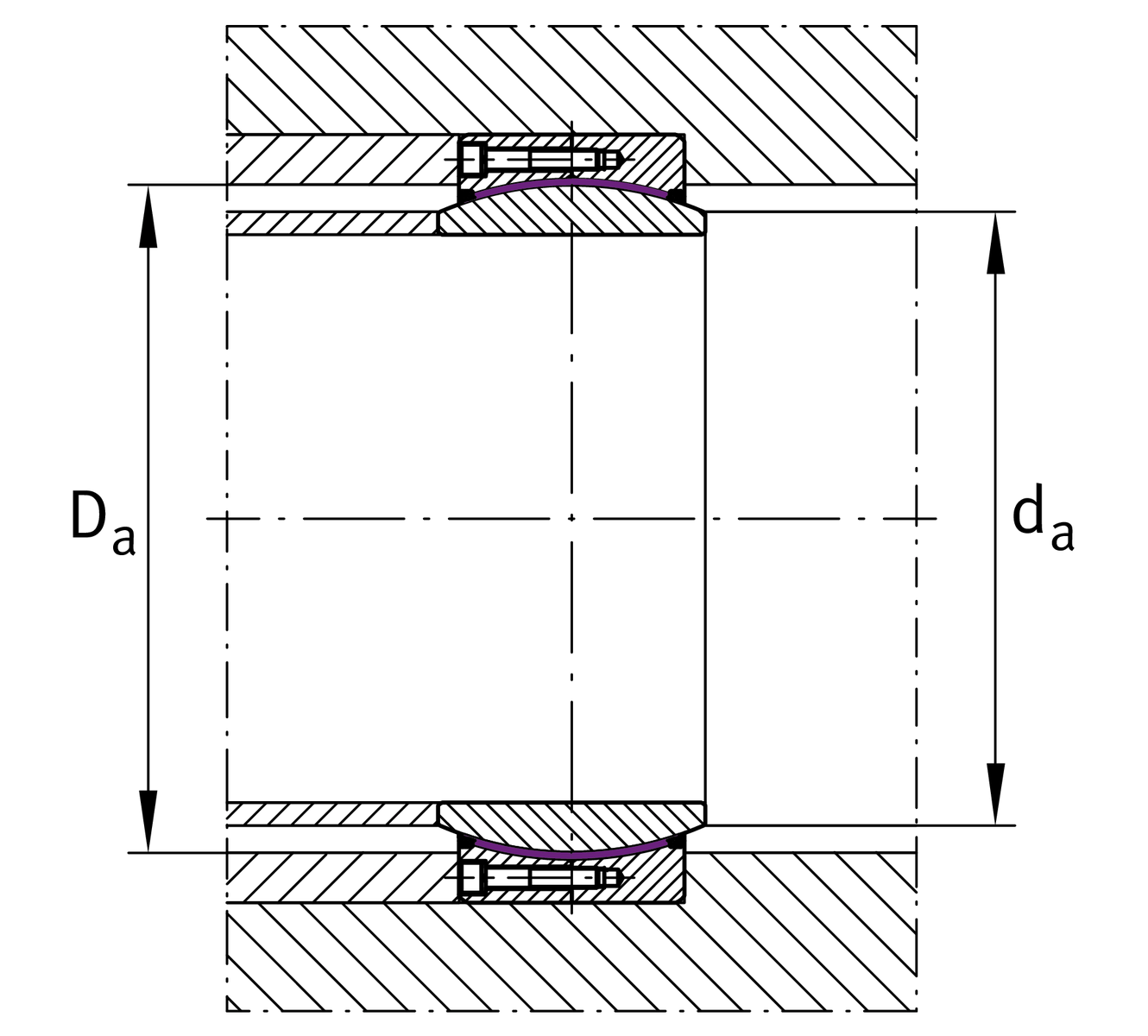

Mounting dimensions
| r1smin | 3 mm | Edge Spacing |
| r2smin | 6 mm | Edge Spacing |
| Da min | 746 mm | Housing Connection Diameter |
| damax | 722 mm | Connection measurement, inner ring |
Dimensions
| dK | 785 mm | Ball diameter |
| α | 3.7 ° | Tilt angle |
| DOT | 0.018 mm | Outside diameter, upper tolerance |
| DUT | -0.09 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| dUT | -0.075 mm | Bore diameter bearing, lower tolerance |
| BUT | -0.75 mm | Width inner ring, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -1.2 mm | Width outer ring, lower tolerance |
| Gr | 0 - 0,16 | Radial Clearance |
| Grmax | 0.16 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -40 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Sealing | 2RS2 | lip seals with increased sealing action on both sides |
| Bore lining | Without | |
| Coating | G8 | Outer ring with Corrotect ZN Coating, curved and end surfaces of inner ring with hard chromium coating |
| Material | Steel | Steel |
| Fabric | W11 | For low contact pressures (starting as low as 1 N/mm²) and minimal friction |
