FAG INA Schaeffler
INA
811/670-M
Axial cylindrical roller bearing 811/670-M
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
670 mm
Bore diameter
T
105 mm
Height
Ca
2,950,000 N
Basic dynamic load rating, axial
C0a
15,300,000 N
Basic static load rating, axial
Cua
1,070,000 N
Fatigue load limit, axial
nG
390 1/min
Limiting speed
nϑr
119 1/min
Reference speed
D
800 mm
Outside diameter
≈m
108.82 kg
Weight

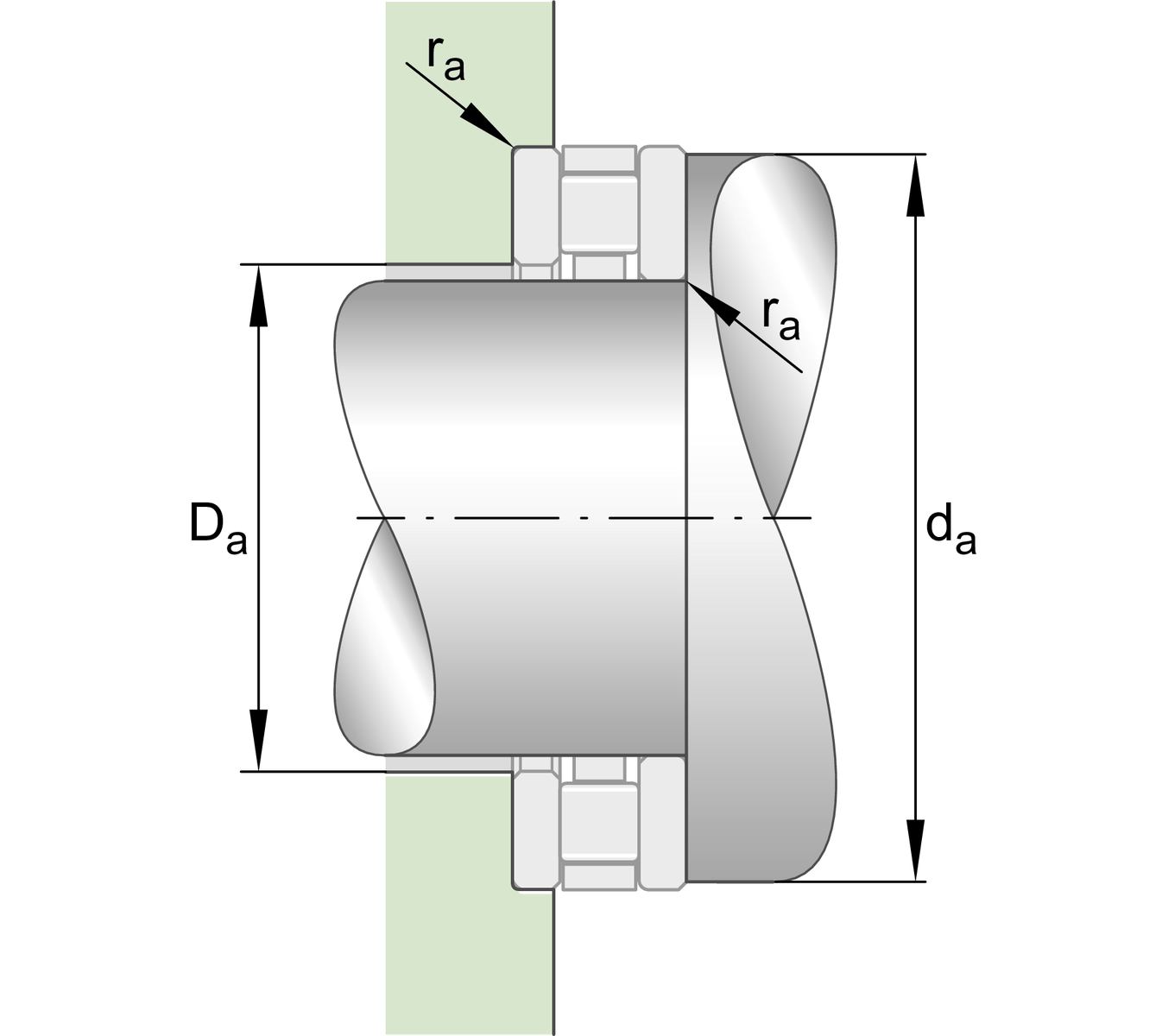

Mounting dimensions
ra max
4 mm
Maximum recess radius

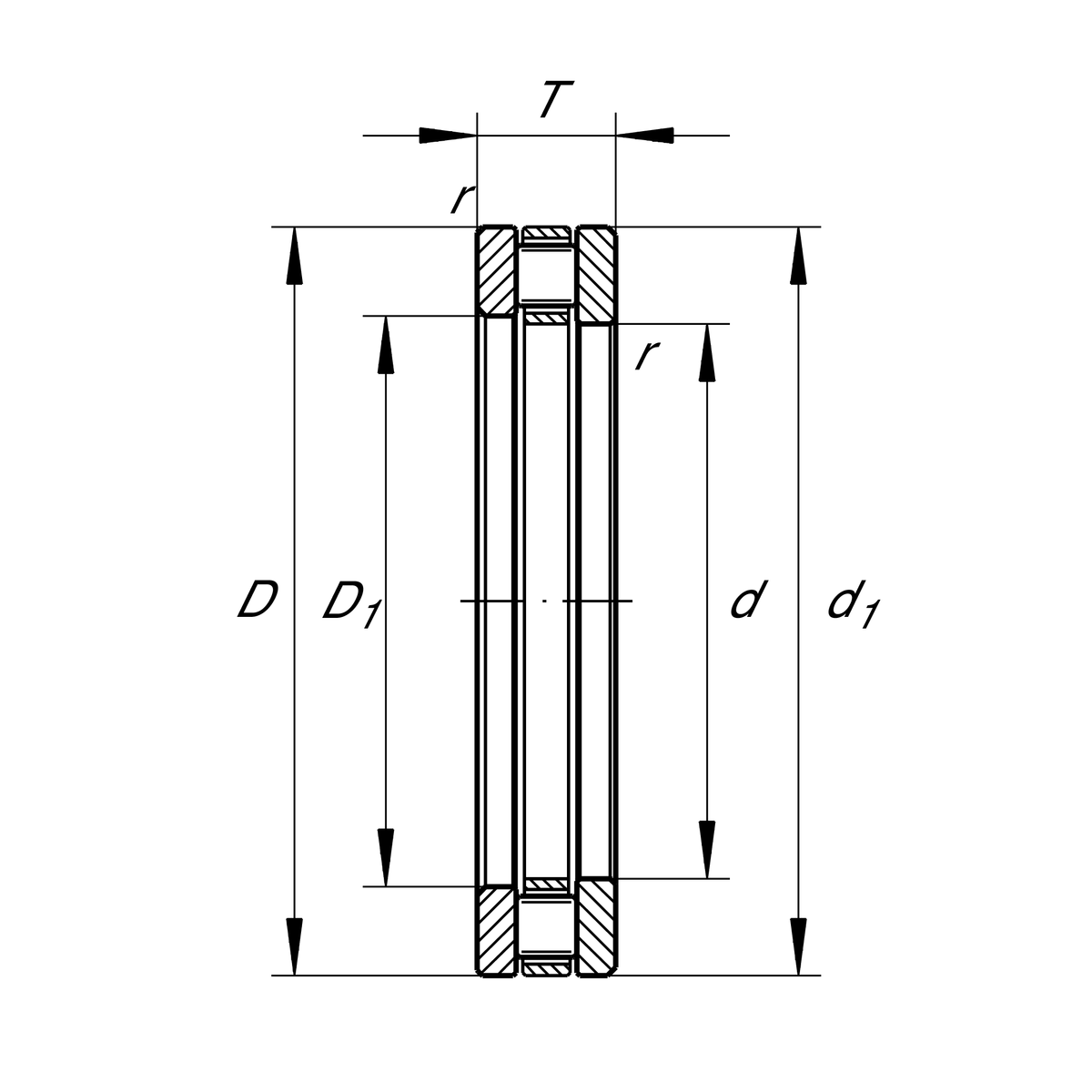

Dimensions
D1
675 mm
Bore diameter housing washer
d1
795 mm
Rip diameter shaft washer
rmin
4 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Additional information
K811/670-M
Axial roller and cage assembly
GS811/670
Housing Washer
WS811/670
Shaft washer

Your current product variant
CageMBrass Cage
