Main Dimensions & Performance Data
| Fw | 16 mm | Under roller diameter |
| D | 24 mm | Outside diameter |
| B | 22 mm | Width |
| Cr | 18,100 N | Basic dynamic load rating, radial |
| C0r | 21,600 N | Basic static load rating, radial |
| Cur | 3,850 N | Fatigue load limit, radial |
| nG | 23,200 1/min | Limiting speed |
| nG Grease | 13,900 1/min | Limiting speed for grease lubrication |
| nϑr | 14,300 1/min | Reference speed |
| ≈m | 31.2 g | Weight |

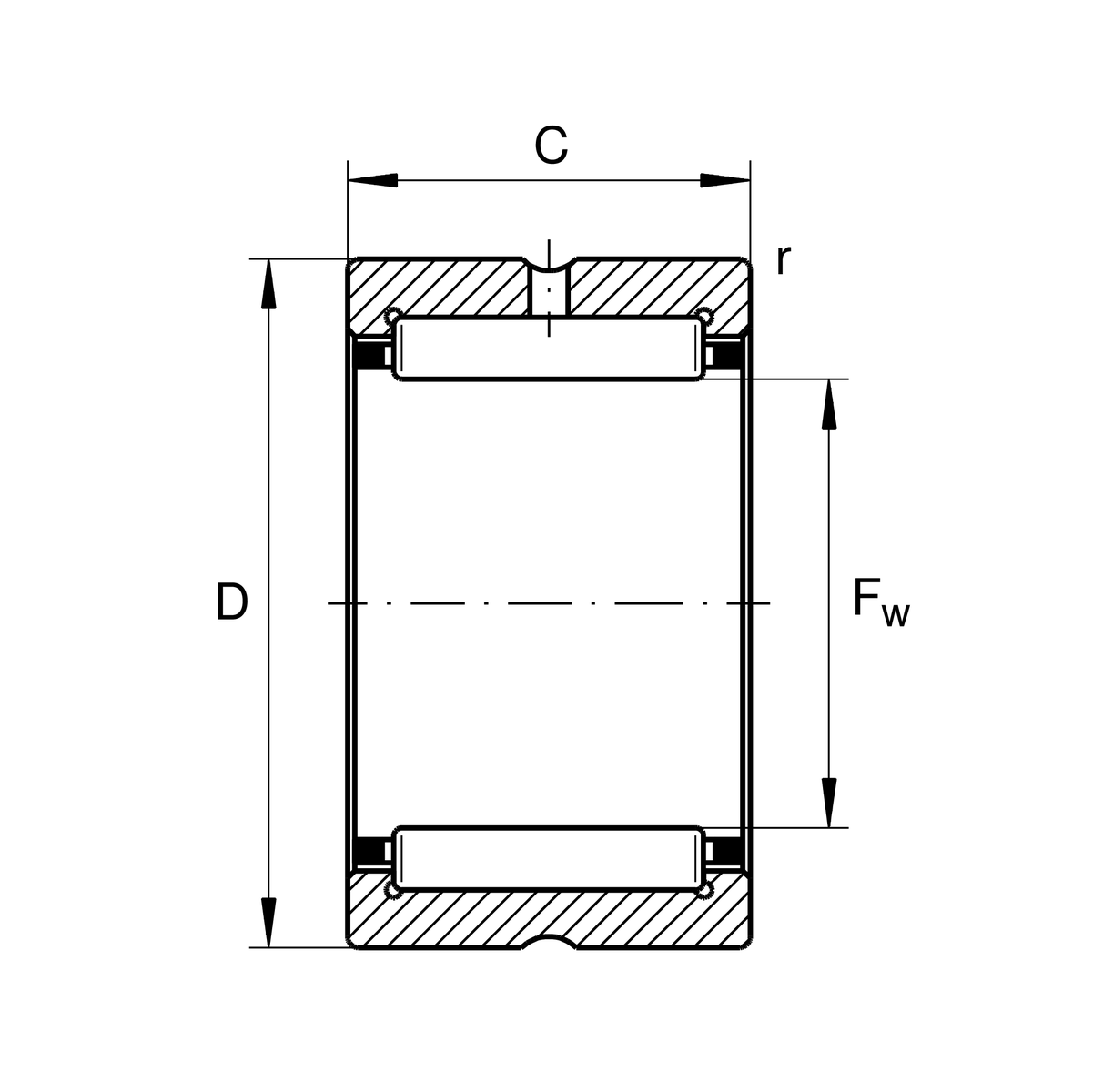

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| C | 22 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
G16X24X3 | Sealing ring | |
SD16X24X3 | Sealing ring 2 |
Your current product variant
| Cage | Standard | Standard |
| Lubrication hole | with | with |
| Coating | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
