FAG INA Schaeffler
INA
G1010-KRR-B-AS2/V
Radial insert ball bearing G1010-KRR-B-AS2/V
Thêm vào yêu cầu báo giá

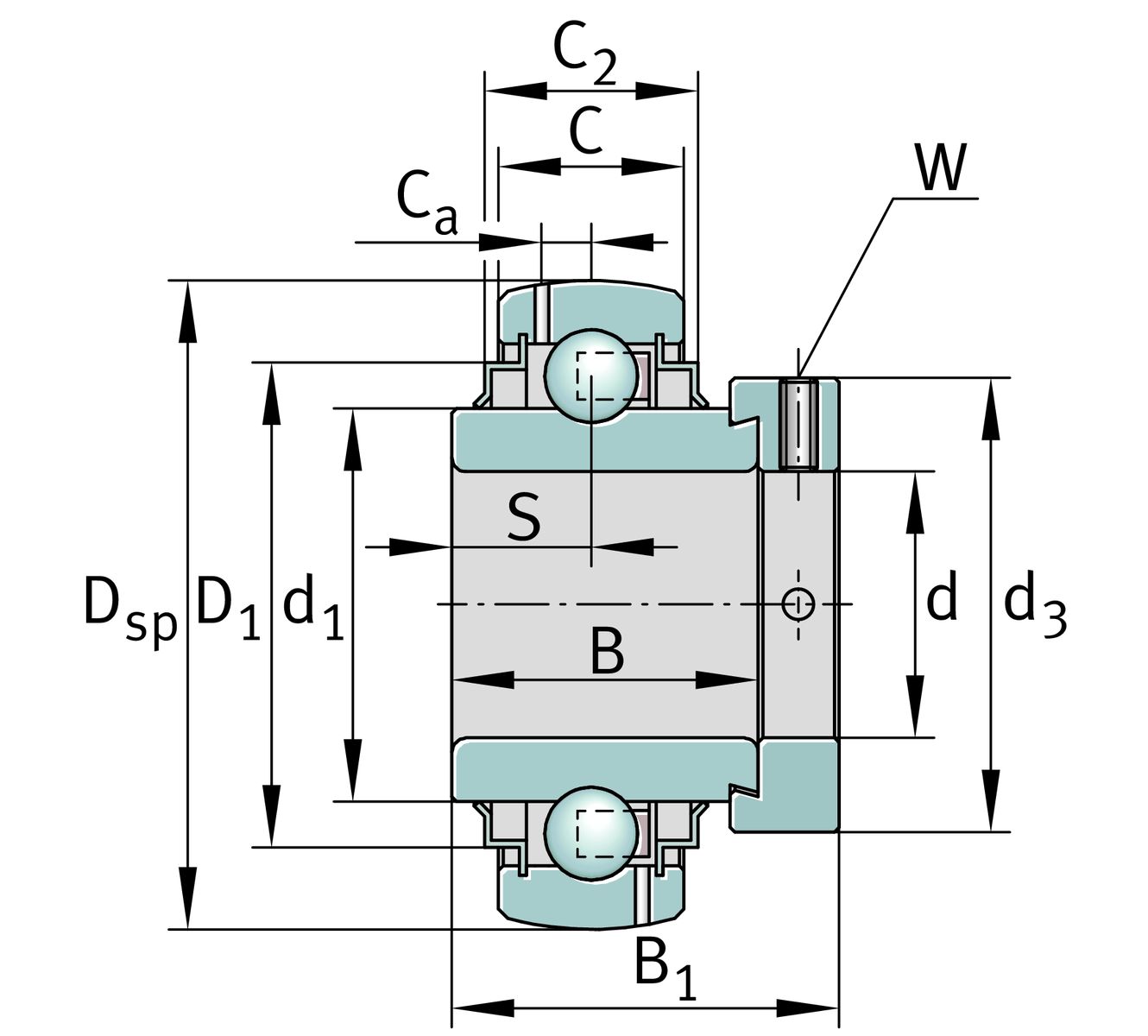

Main Dimensions & Performance Data
d
15.875 mm
Bore diameter
d
15.875 mm
Bore diameter, inch
DSP
40 mm
Outside diameter
B
27.7 mm
Width
Cur
219 N
Fatigue load limit, radial
B1
37.3 mm
Locking collar total width
Cr
9,800 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
132.163 g
Weight

Dimensions
C
12 mm
Width, outer ring
S
13.9 mm
Distance raceway
d1
23.9 mm
Rib diameter inner ring
Ca
3.4 mm
Distance to lubrication hole
d3
28 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
