FAG INA Schaeffler
INA
GYE75-XL-KRR-B
Radial insert ball bearing GYE75-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
75 mm
Bore diameter
DSP
130 mm
Outside diameter
B
77.8 mm
Width
Cur
1,880 N
Fatigue load limit, radial
Cr
62,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
≈m
1.96 kg
Weight

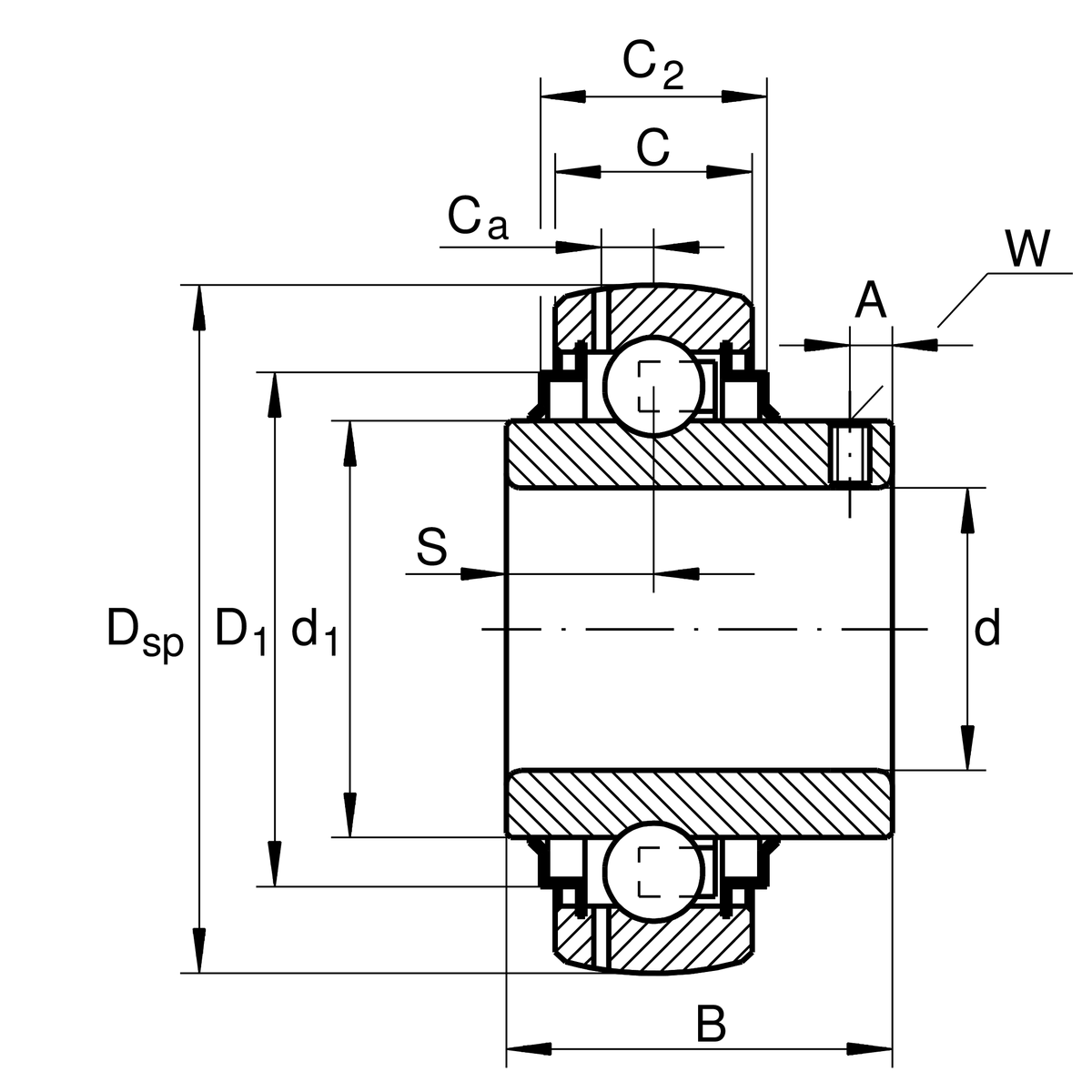

Dimensions
C
28 mm
Width, outer ring
C2
30.5 mm
Sealing total width
S
33.3 mm
Distance raceway
d1
90 mm
Rib diameter inner ring
D1
113 mm
Outside diameter seal
Ca
8.5 mm
Distance to lubrication hole
A
12.7 mm
Distance thread
W
5 mm
Width of flats

Calculation factors
f0
14.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
