Inner ring IR15X19X20-XL
Thêm vào yêu cầu báo giá

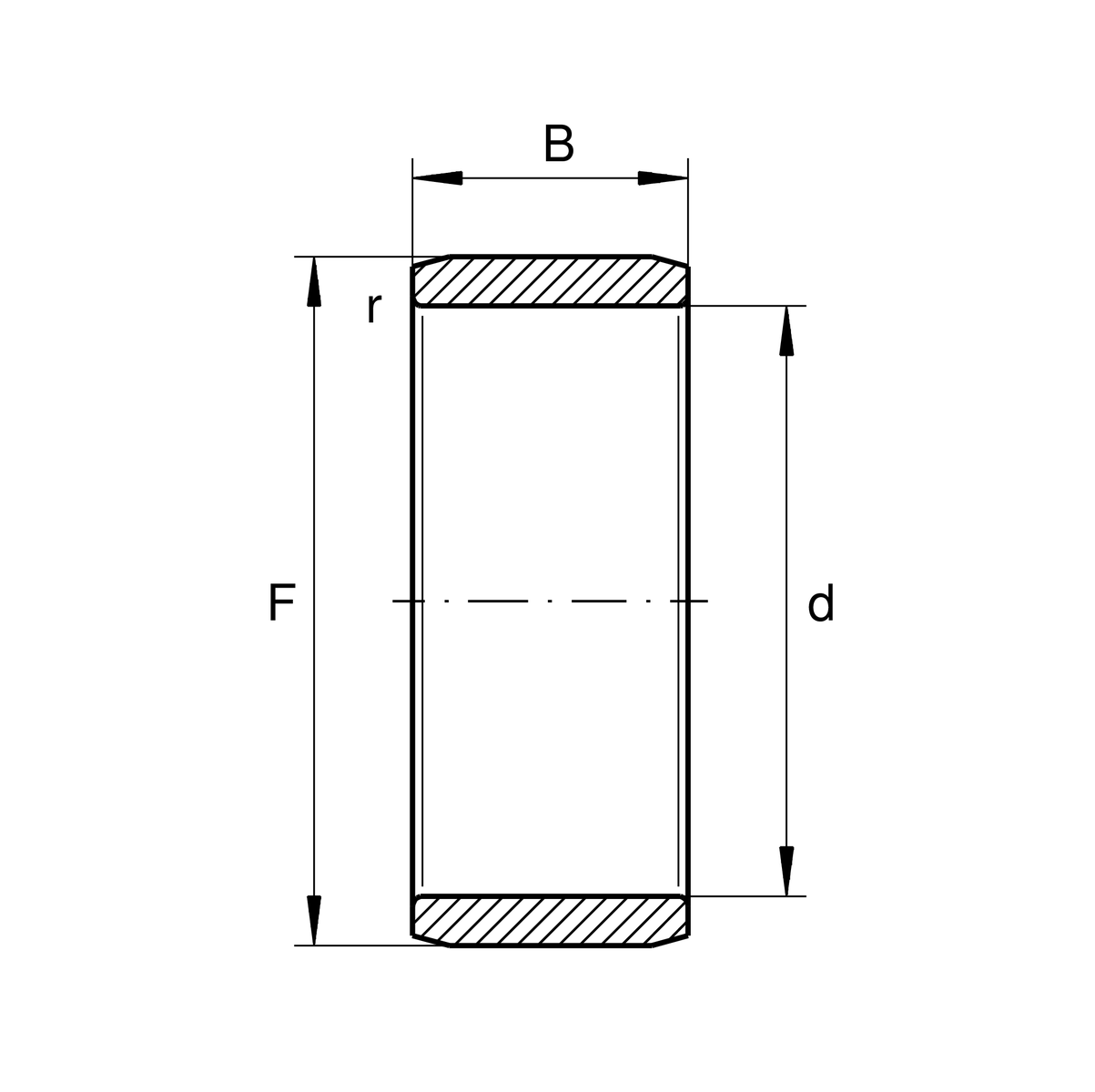

Main Dimensions & Performance Data
d
15 mm
Bore diameter
F
19 mm
Raceway diameter inner ring
B
20 mm
Width
0 µm
Raceway diameter upper tolerance
-0.012 µm
Raceway diameter lower tolerance
rmin
0.3 mm
Minimum chamfer dimension
≈m
16.4 g
Weight

Your current product variant
Lubrication holeWithout
Special featuresWithout
