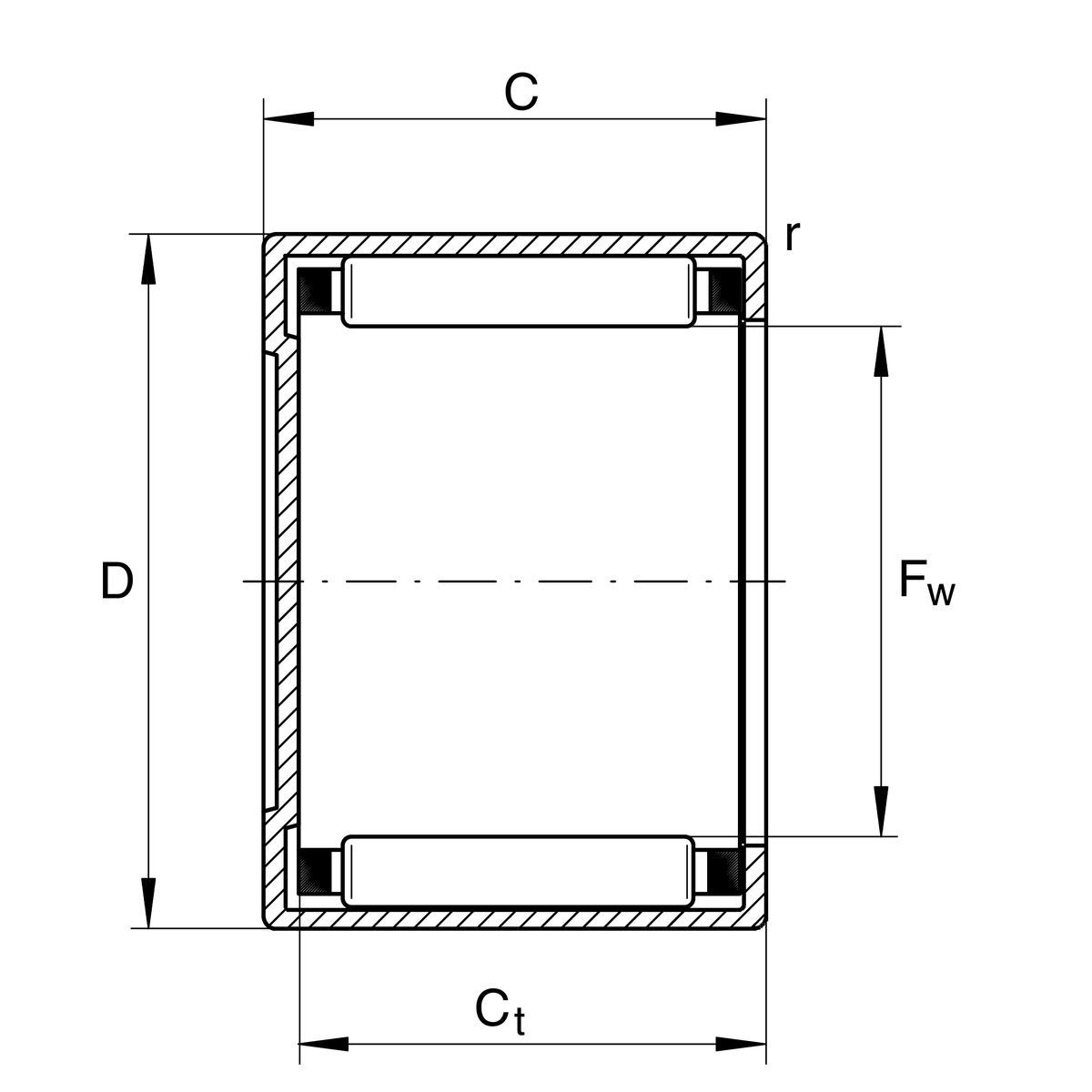

Main Dimensions & Performance Data
| Fw | 8 mm | Under roller diameter |
| D | 12 mm | Outside diameter |
| C | 10 mm | Width, outer ring |
| Cr | 3,800 N | Basic dynamic load rating, radial |
| C0r | 3,950 N | Basic static load rating, radial |
| Cur | 510 N | Fatigue load limit, radial |
| nG Grease | 17,700 1/min | Limiting speed for grease lubrication |
| nG | 29,500 1/min | Limiting speed |
| nϑr | 23,200 1/min | Reference speed |
| ≈m | 3.4 g | Weight |
Dimensions
| rmin | 0.4 mm | Minimum chamfer dimension |
| Ct min | 8.4 mm | Minimum width to base of drawn cup with closed end |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Additional information
G8X12X3 | Sealing ring 2 | |
IR5X8X12-XL | Suitable inner rings IR |
Your current product variant
| Lubricant | L271 | Grease (L271/customer specific) |
| Lubrication hole | Without | |
| Coating | Without | |
| Sealing | Without |
