FLCTE15-XL
Flanged housing unit FLCTE15-XL
Thêm vào yêu cầu báo giá

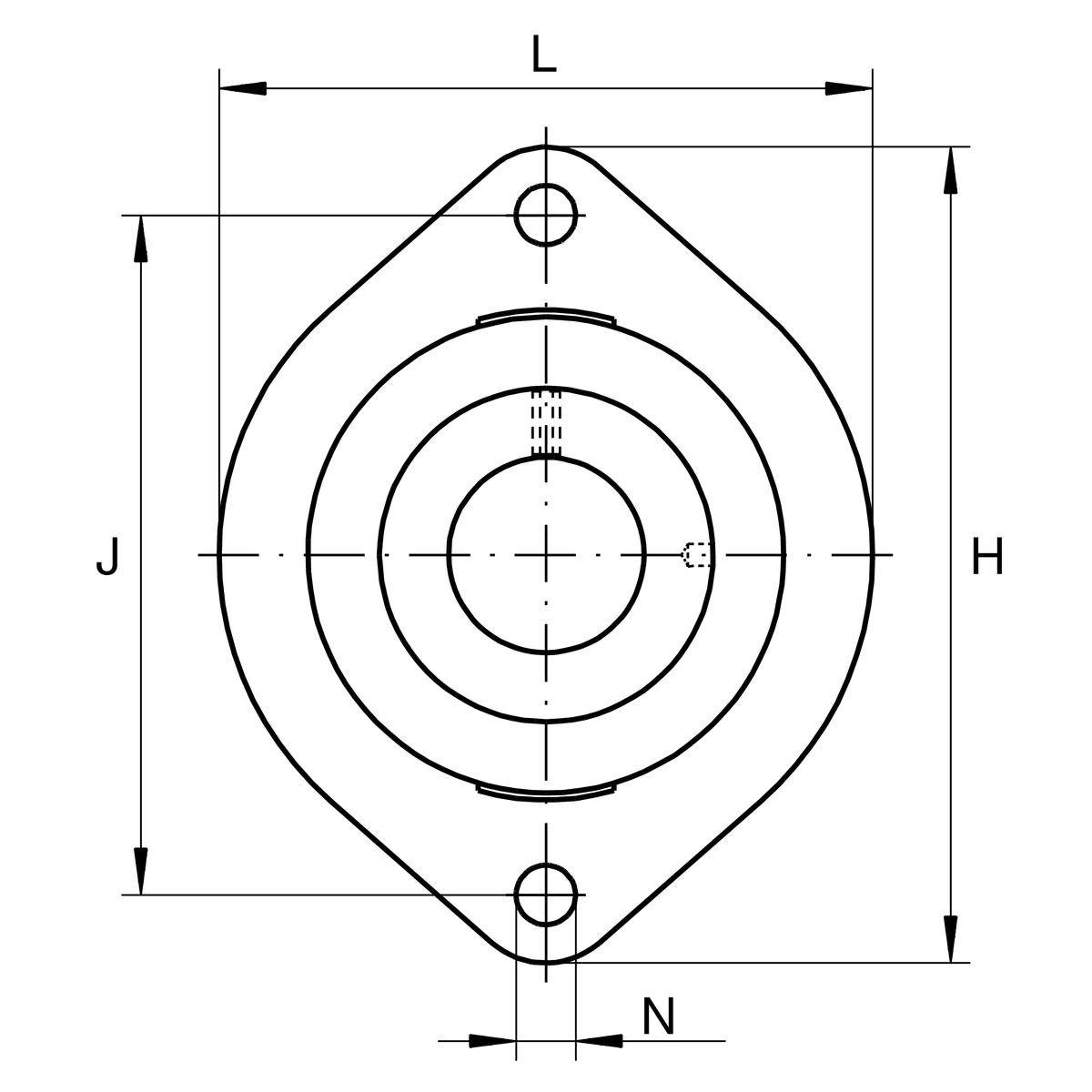

Main Dimensions & Performance Data
d
15 mm
Bore diameter
L
58.7 mm
Flange width
H
81 mm
Height flange
U
30.5 mm
Total height unit
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
Cur
248 N
Fatigue load limit, radial
≈m
0.3 kg
Weight

Mounting dimensions
J
63.5 mm
Distance fixing bore
N
6.6 mm
Fixing bore
W
3 mm
Width across flats
n
2
Number of screwing holes

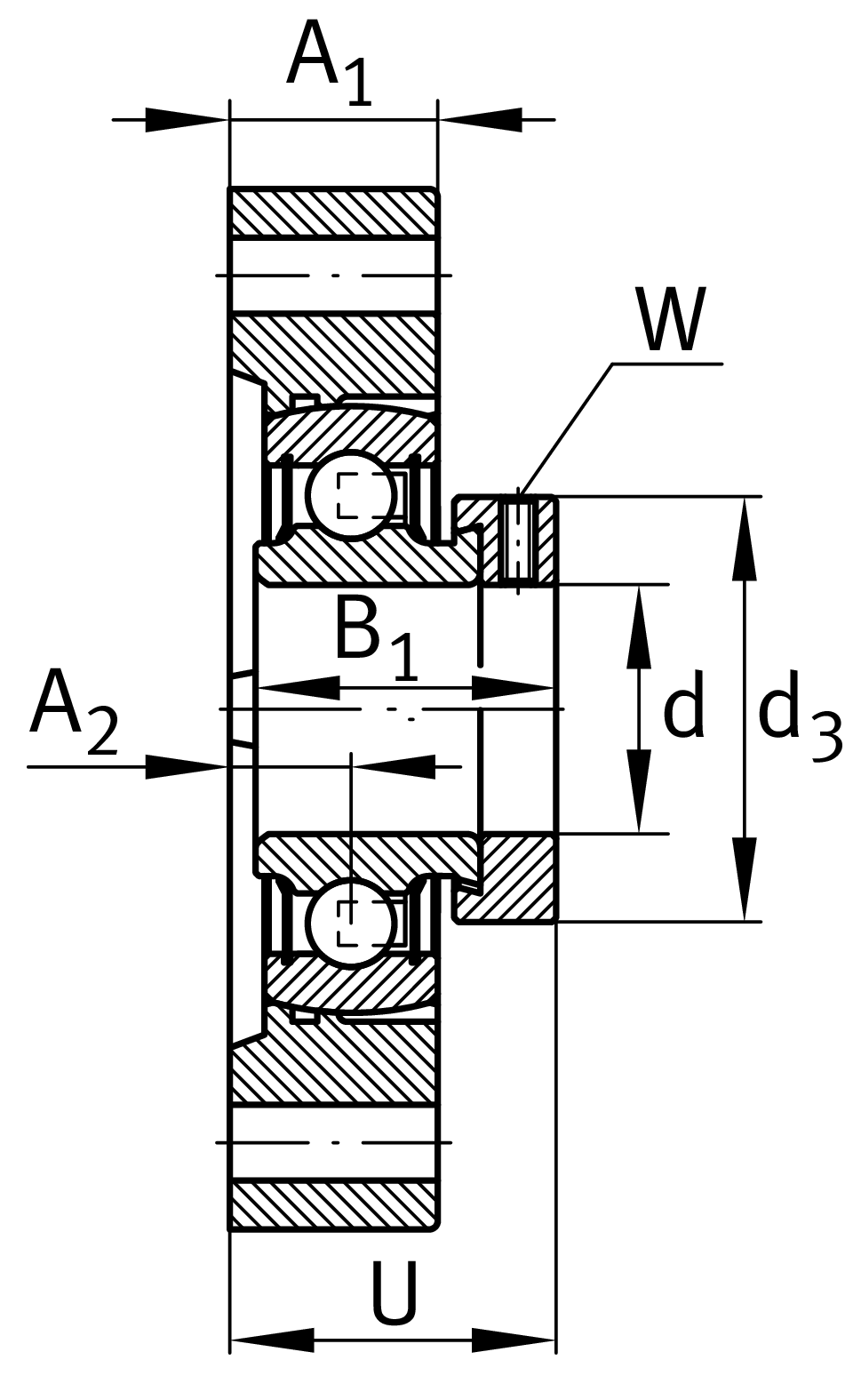

Dimensions
A1
15 mm
Thickness of flange
A2
8.4 mm
Distance raceway
B1
28.6 mm
Locking collar total width
d3
28.4 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
LCTE03
Housing
RAE15-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
