Main Dimensions & Performance Data
| Fw | 6 mm | Under roller diameter |
| D | 10 mm | Outside diameter |
| C | 8 mm | Width |
| Cr | 2,030 N | Basic dynamic load rating, radial |
| C0r | 1,650 N | Basic static load rating, radial |
| Cur | 187 N | Fatigue load limit, radial |
| nG | 36,500 1/min | Limiting speed |
| nG Grease | 21,900 1/min | Limiting speed for grease lubrication |
| nϑr | 31,500 1/min | Reference speed |
| ≈m | 2.09 g | Weight |

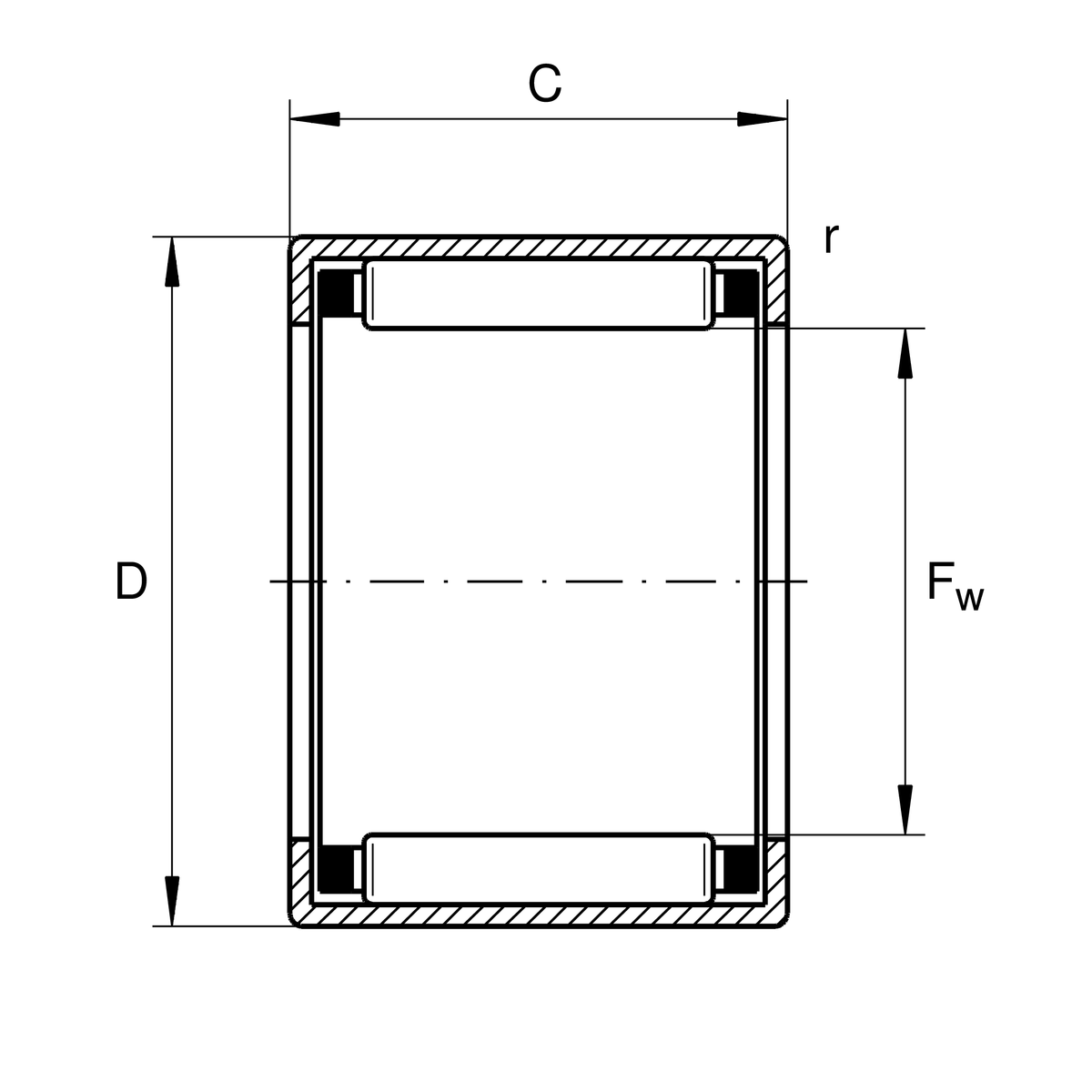

Dimensions
| C1 | 8 mm | Width, outer ring |
| rmin | 0.4 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 140 °C | Operating temperature max. |
Additional information
GR6X10X2 | Sealing ring |
Your current product variant
| Lubricant | L271 | Grease (L271/standart specific) |
| Lubrication hole | Without | |
| Coating | Without | |
| Sealing | Without |
