G1215-KRR-B-AS2/V
Radial insert ball bearing G1215-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
74.6125 mm
Bore diameter
d
74.612 mm
Bore diameter, inch
DSP
130 mm
Outside diameter
B
49.5 mm
Width
Cur
2,300 N
Fatigue load limit, radial
B1
67 mm
Locking collar total width
Cr
62,000 N
Basic dynamic load rating, radial
C0r
44,500 N
Basic static load rating, radial
≈m
2.049 kg
Weight

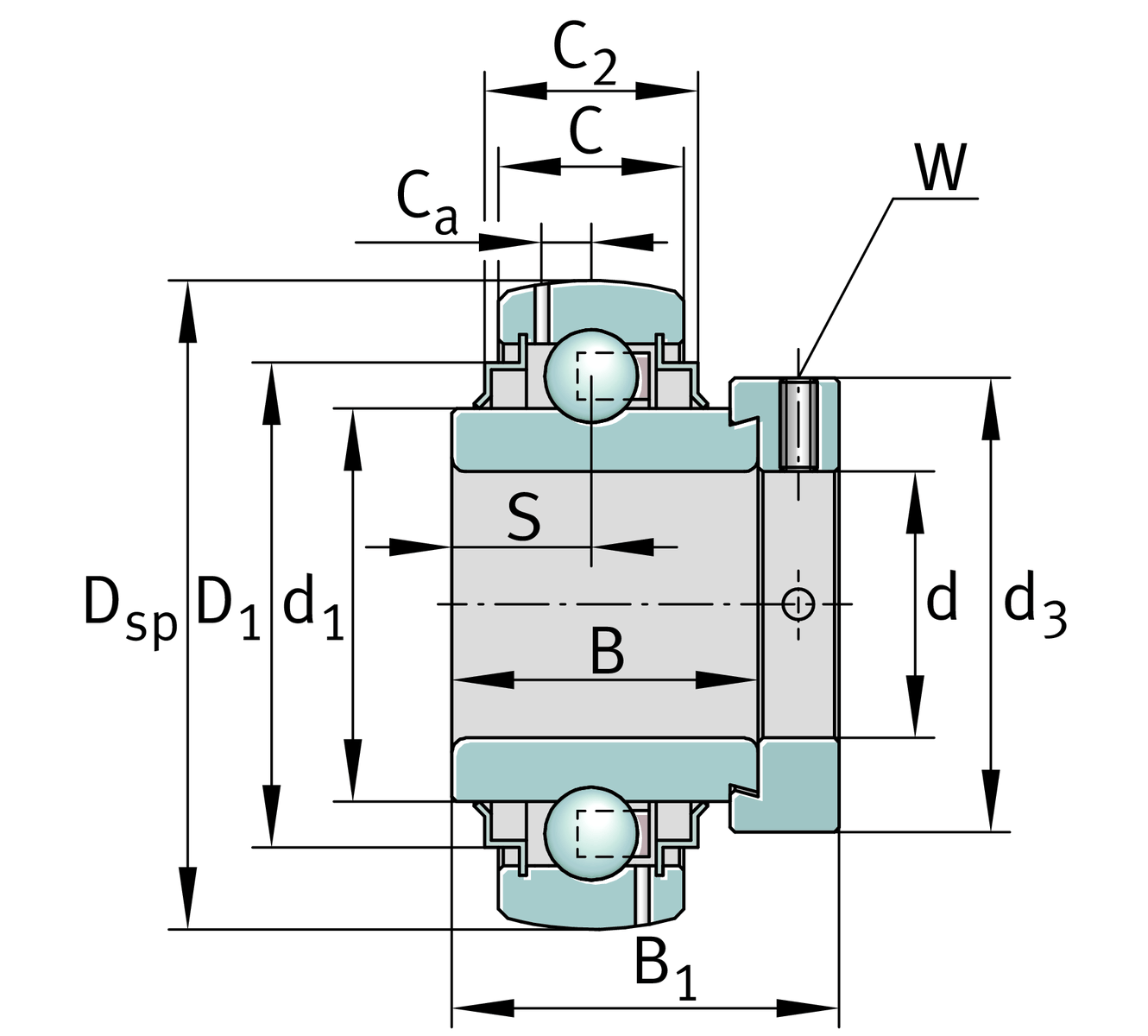

Dimensions
C
28 mm
Width, outer ring
C2
30.5 mm
Sealing total width
S
21.5 mm
Distance raceway
d1
99 mm
Rib diameter inner ring
D1
112.9 mm
Outside diameter seal
Ca
8.56 mm
Distance to lubrication hole
d3
100.5 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
14.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
