Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| D | 35 mm | Outside diameter |
| B | 14 mm | Width |
| Cr | 7,700 N | Basic dynamic load rating, radial |
| C0r | 1,750 N | Basic static load rating, radial |
| Cur | 111 N | Fatigue load limit, radial |
| nG | 13,700 1/min | Limiting speed |
| ≈m | 60 g | Weight |

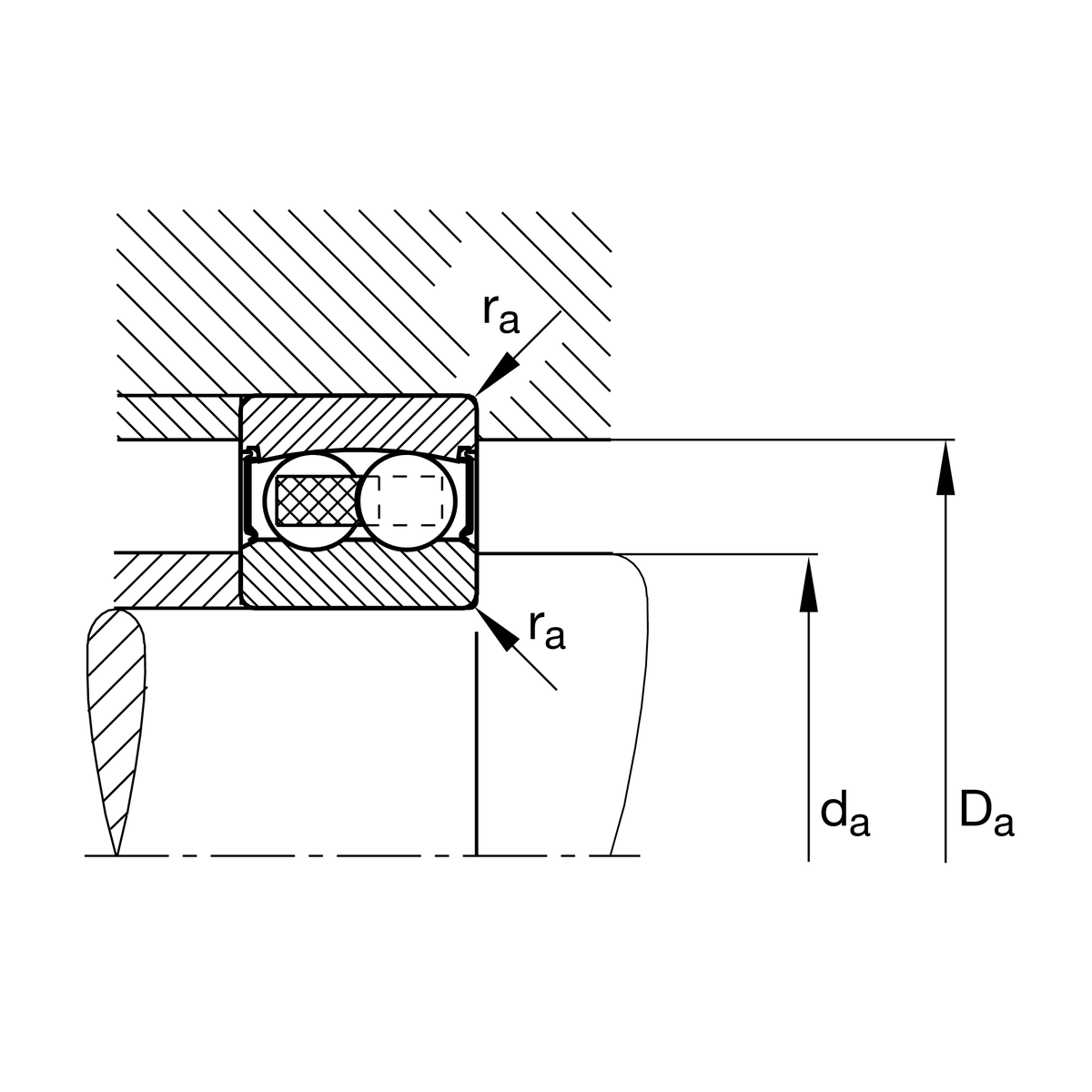

Mounting dimensions
| da min | 19.2 mm | Minimum diameter shaft shoulder |
| Da max | 30.8 mm | Maximum diameter of housing shoulder |
| ra max | 0.6 mm | Maximum fillet radius |

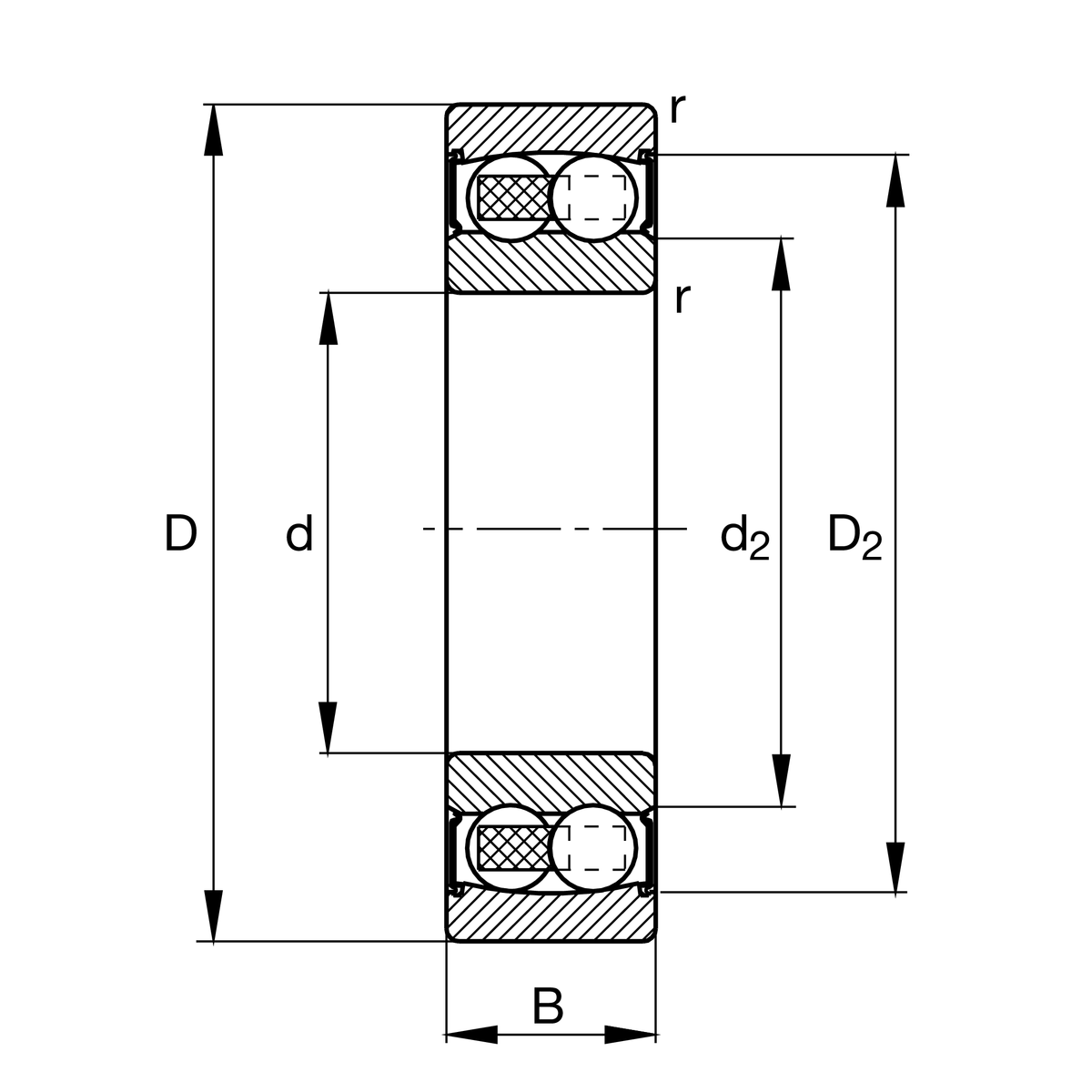

Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
| D1 | 28.793 mm | Shoulder diameter outer ring |
| D2 | 30.22 mm | Caliber diameter outer ring |
| d1 | 20.15 mm | Shoulder diameter inner ring |
| d2 | 19 mm | Caliber diameter inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| e | 0.34 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 1.86 | Dynamic axial load factor |
| Y2 | 2.88 | Dynamic axial load factor |
| Y0 | 1.95 | Static axial load factor |
Your current product variant
| Bore type | Z | Cylindrical |
| Sealing | 2RS | Contact seal on both sides |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Lubricant | GA14 | Ball bearing grease, low noise, standard for D<=62mm |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
