RRTR35-XL
Flanged housing unit RRTR35-XL
Thêm vào yêu cầu báo giá

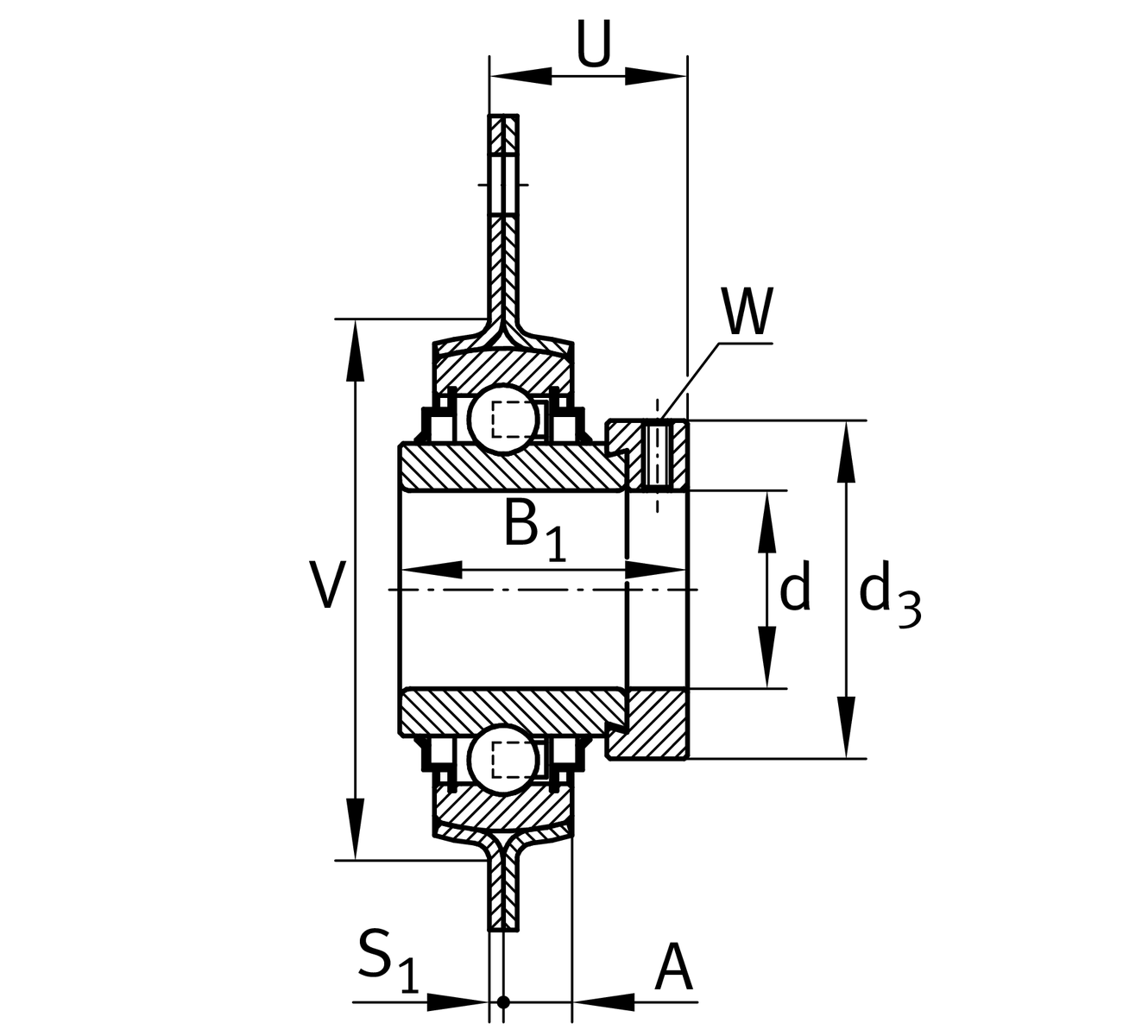

Main Dimensions & Performance Data
d
35 mm
Bore diameter
H2
105.6 mm
Height flange
H
122 mm
Flange width
U
34.8 mm
Total height unit
Cr
25,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
C0r G
6,400 N
Load carrying capacity (housing)
≈m
0.78 kg
Weight

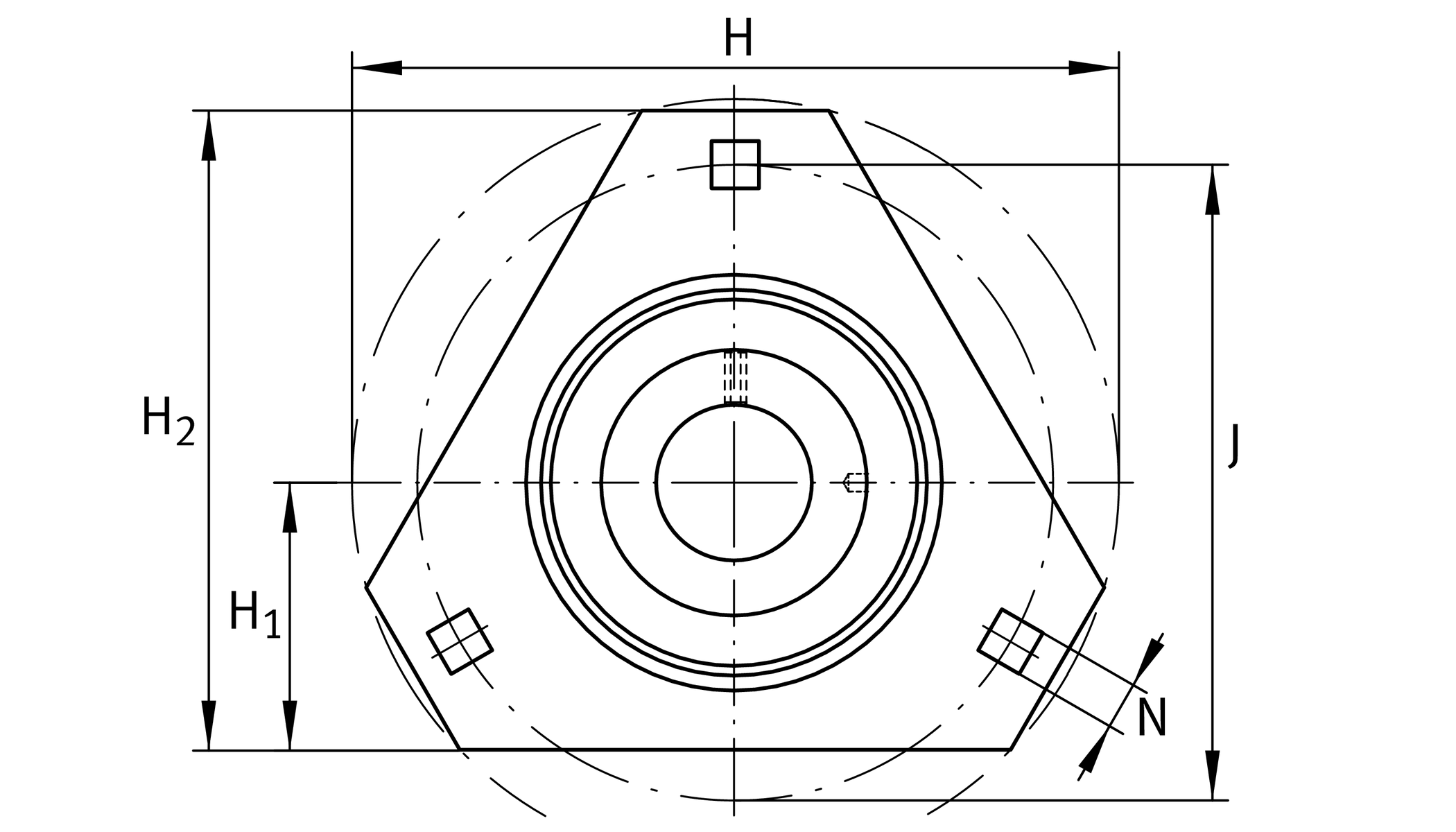

Mounting dimensions
J
100 mm
Distance fixing bore
J
100 mm
Pitch circle diameter (holes)
N
10.5 mm
Fixing square
n
3
Number of screwing holes

Dimensions
A
9.5 mm
Height housing
H1
44.5 mm
Distance shaft axis
S1
2.5 mm
Thickness of flange
S
2.5 mm
Thickness of flange
V
81 mm
Shoulder diameter housing

Additional information
2
Number of housings
FLAN72-MSTR
Housing
E35-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialStahlblechSteel sheet
