HF1416-RR
Drawn cup roller clutch HF1416-RR
Thêm vào yêu cầu báo giá

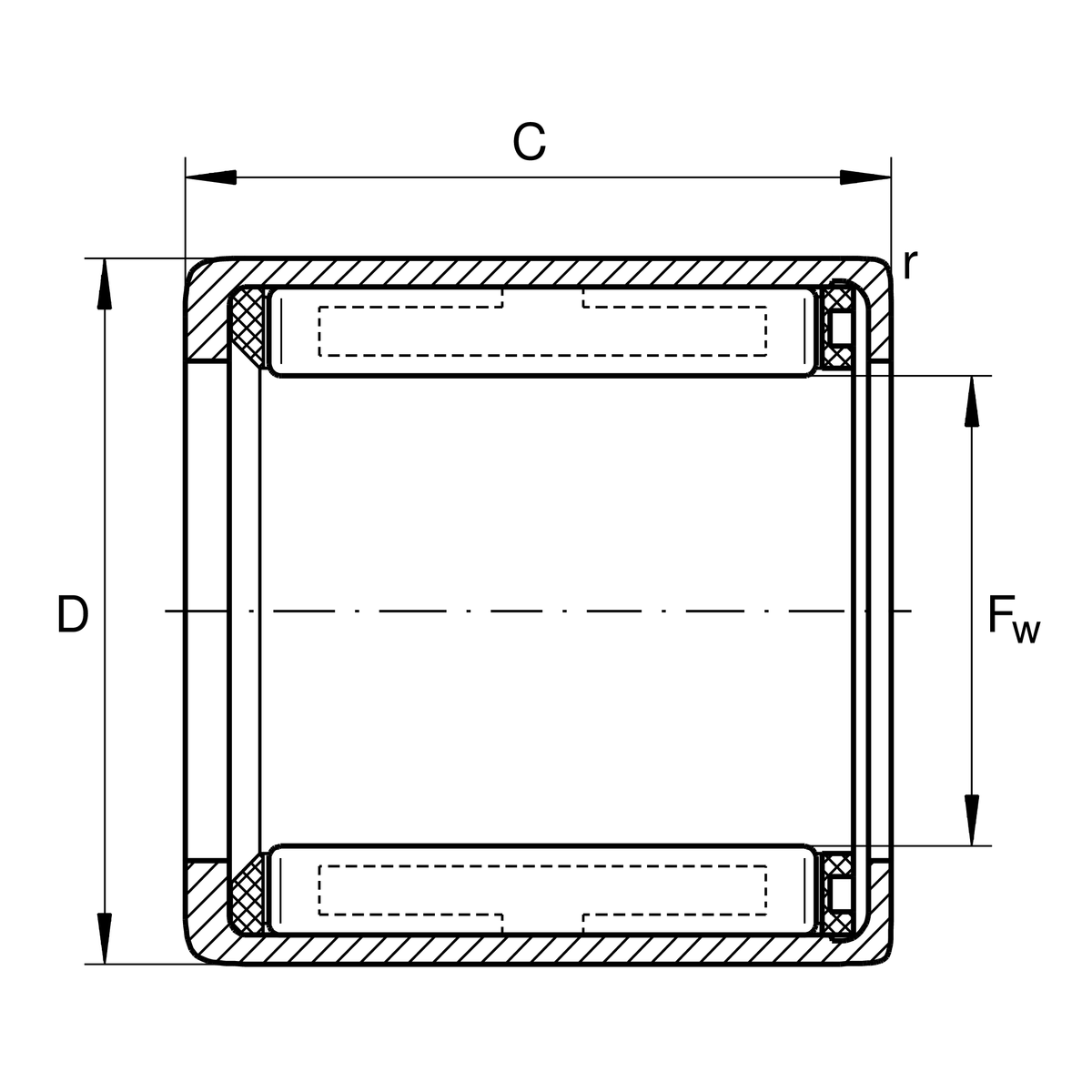

Main Dimensions & Performance Data
Fw
14 mm
Under roller diameter
D
20 mm
Outside diameter
C
16 mm
Width, outer ring
rmin
0.3 mm
Minimum chamfer dimension
Md per
17.3 Nm
Permissible torque
nGW
9,500 1/min
Limiting speed for rotating shaft
nGA
8,000 1/min
Limiting speed for rotating outer ring
≈m
13 g
Weight

Temperature range
Tmin
-10 °C
Operating temperature min.
Tmax
70 °C
Operating temperature max.

Additional information
HK1412
Drawn cup needle roller bearings for radial bearing arrangement

Your current product variant
LubricantL564Grease (L564/standart specific - dynamic)
CoatingRRProtected against corrosion by Corrotect special coating
Outer shapeWithoutSmooth outside surface
Spring designStandardSteel pressure springs
