Main Dimensions & Performance Data
| d | 12.7 mm | Bore diameter |
| H | 89 mm | Height |
| L | 94 mm | Length total |
| ≈m | 0.76 kg | Weight |

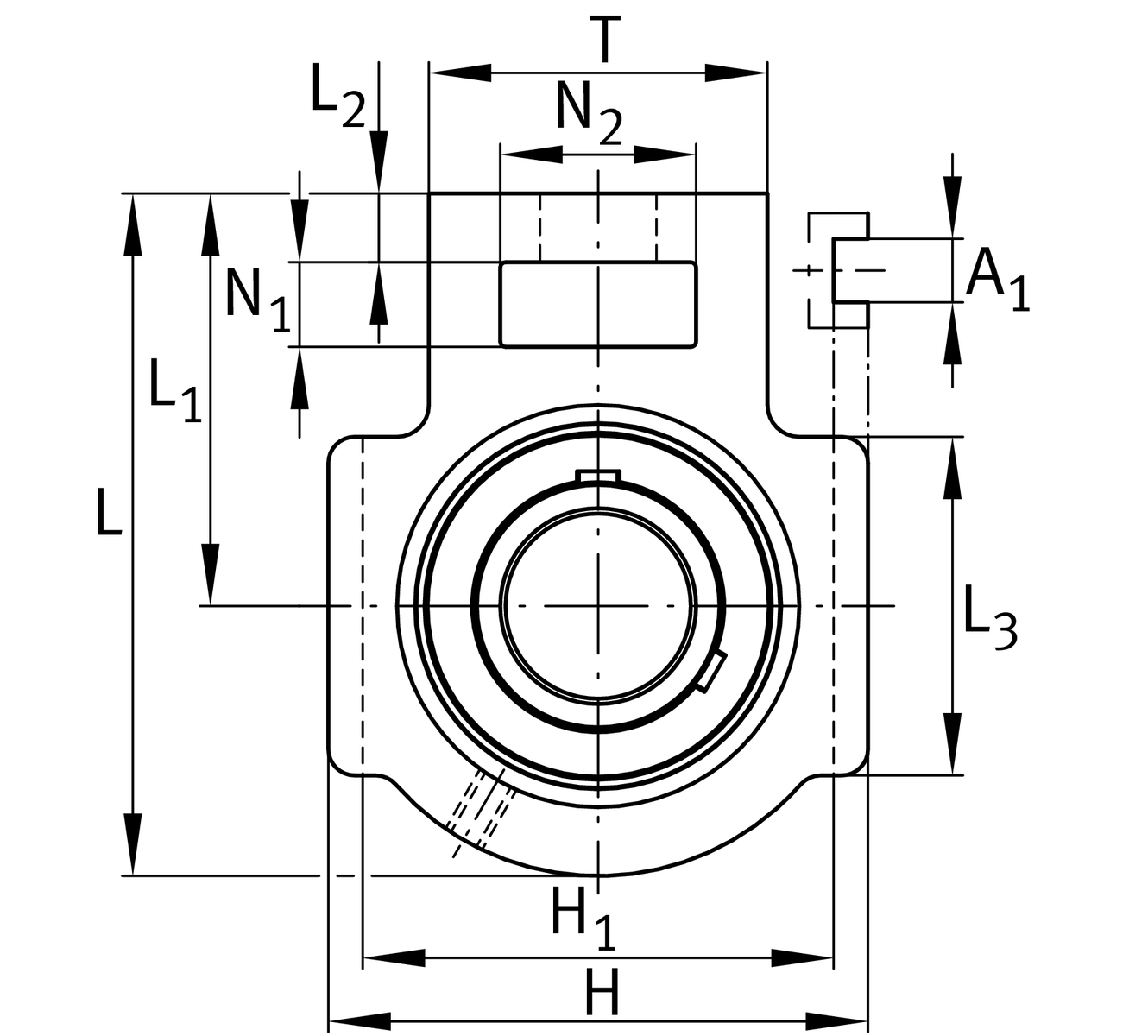

Mounting dimensions
| A1 | 12 mm | Width guidance groove |
0.2 mm | Upper width guidance groove tolerance | |
0 mm | Lower width guidance groove tolerance | |
| H1 | 76 mm | Distance guidance grooves |
0 mm | Upper distance guidance groove tolerance | |
-0.5 mm | Lower distance guidance groove tolerance | |
| N | 19 mm | Fixing bore |

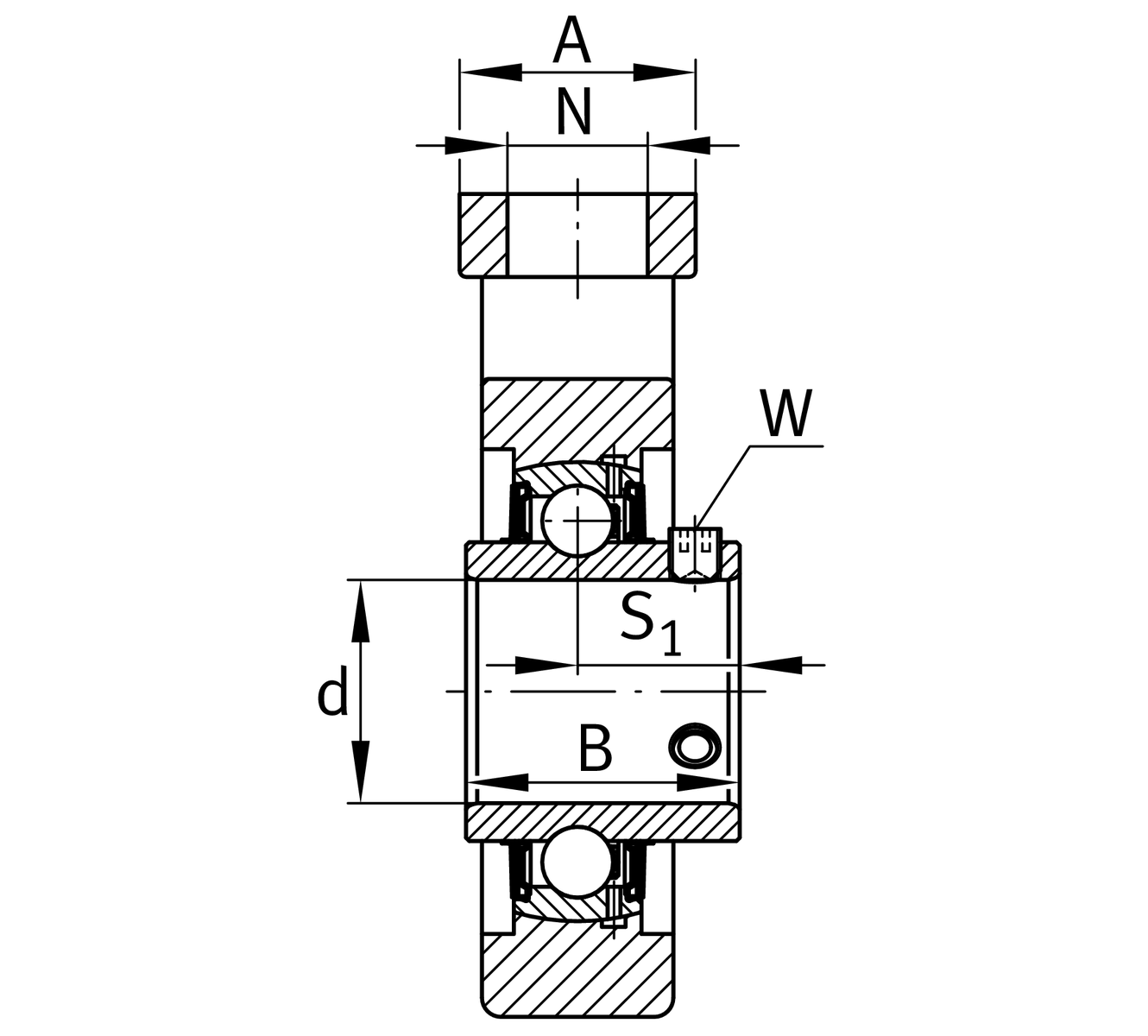

Dimensions
| L1 | 61 mm | Distance shaft axis |
| L2 | 10 mm | Length fixed link |
| L3 | 51 mm | Length guidance groove |
| A | 32 mm | Width housing fixing side |
| N1 | 16 mm | Width recess |
| N2 | 32 mm | Height recess |
| B | 31 mm | Width inner ring |
| S1 | 18.3 mm | Distance of raceway to locking collar |
| T | 51 mm | Height housing fixing side |
| Q | M6 | Connection thread for lubrication |
| A2 | 21 mm | Width housing |
Additional information
T204 | Housing | |
UC201-08 | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
