Main Dimensions & Performance Data
| Fw | 12 mm | Under roller diameter |
| D | 22 mm | Outside diameter |
| B | 12 mm | Width |
| Cr | 10,000 N | Basic dynamic load rating, radial |
| C0r | 9,900 N | Basic static load rating, radial |
| Cur | 1,430 N | Fatigue load limit, radial |
| nG | 26,000 1/min | Limiting speed |
| nG Grease | 15,500 1/min | Limiting speed for grease lubrication |
| nϑr | 19,700 1/min | Reference speed |
| ≈m | 17.5 g | Weight |

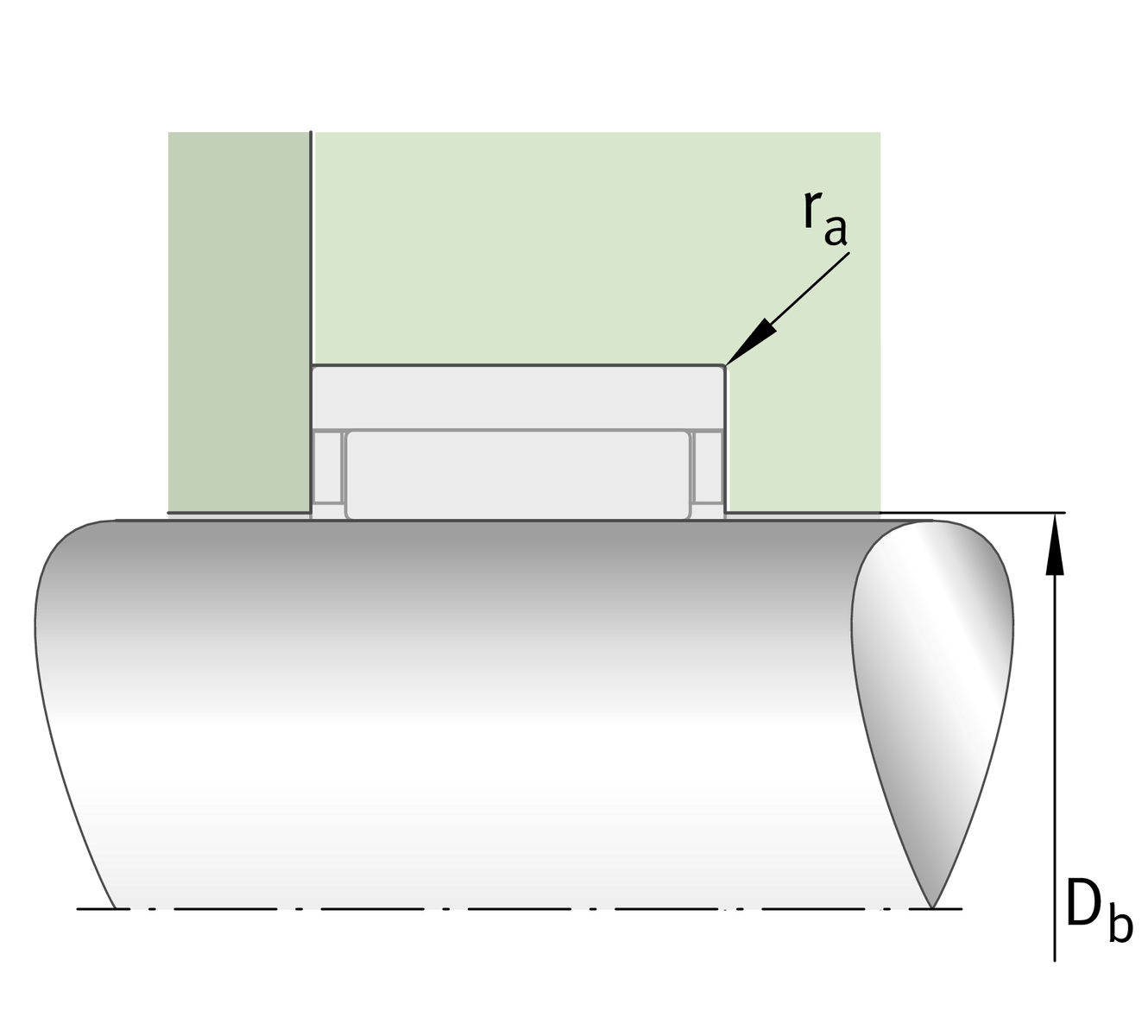

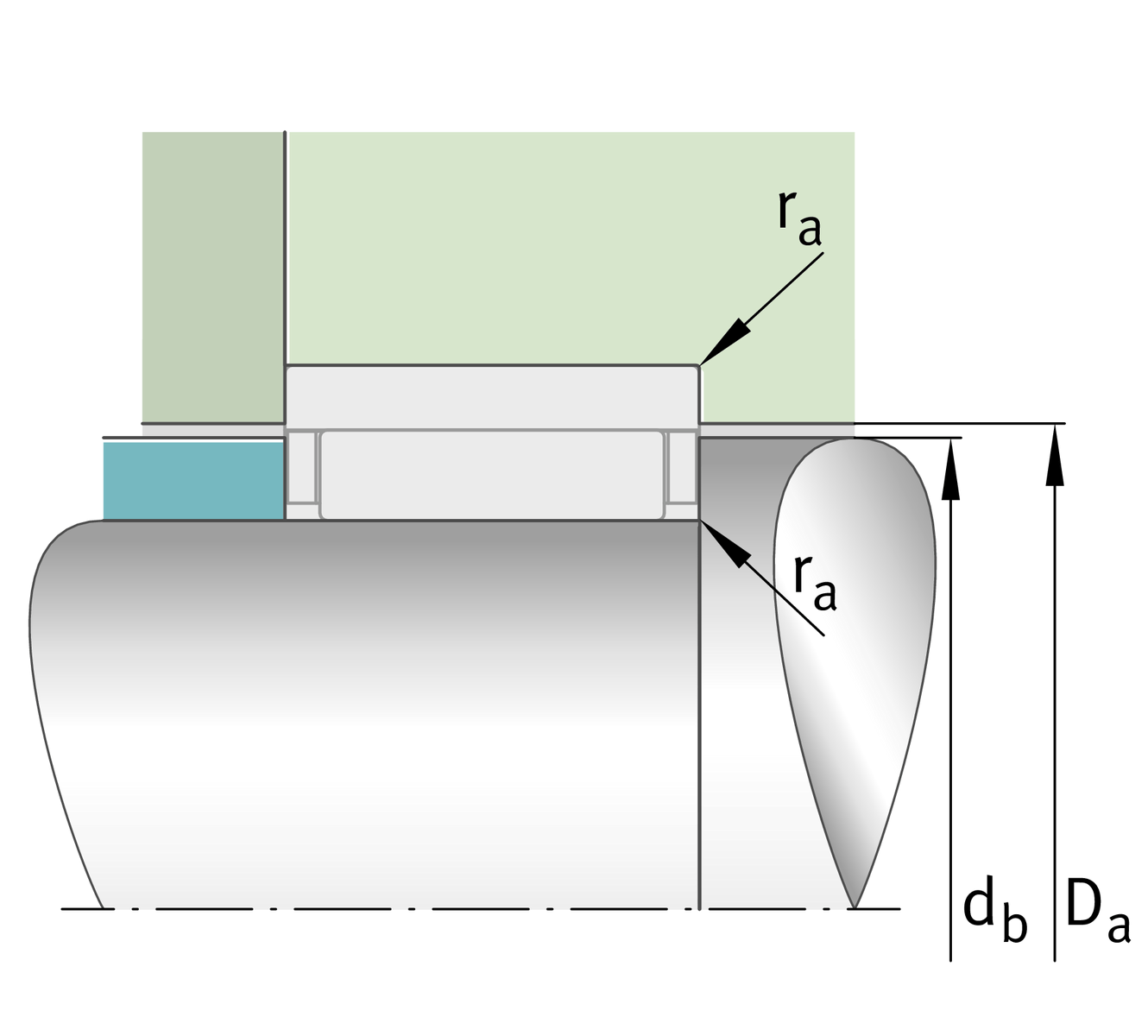

Mounting dimensions
| ra max | 0.3 mm | Maximum recess radius |
| db | 17.6 mm | Shoulder diameter axial guidance NK/shaft |
| Da | 18.3 mm | Shoulder diameter outer ring |
| Db | 12.3 mm | Shoulder diameter axial guidance NK/housing |

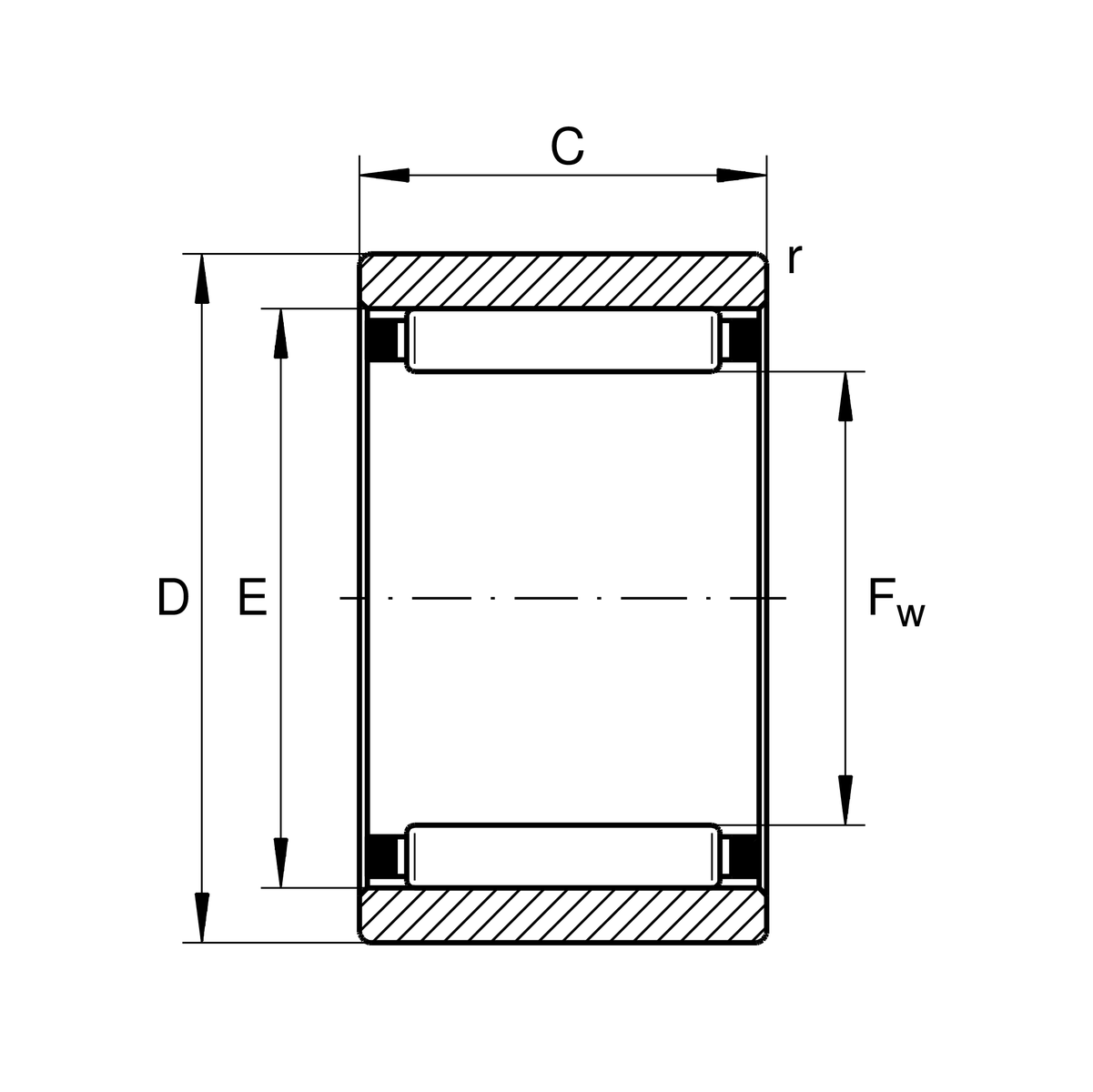

Dimensions
| rmin | 0.3 mm | Minimum chamfer dimension |
| E | 18 mm | Raceway diameter outer ring |
| C | 12 mm | Width, outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
| Lubrication hole | without | without |
| Coating | Without | |
| Sealing | Without | |
| Special features | Without | |
| Number of rolling element rows | 1 | Single-row design |
