Main Dimensions & Performance Data

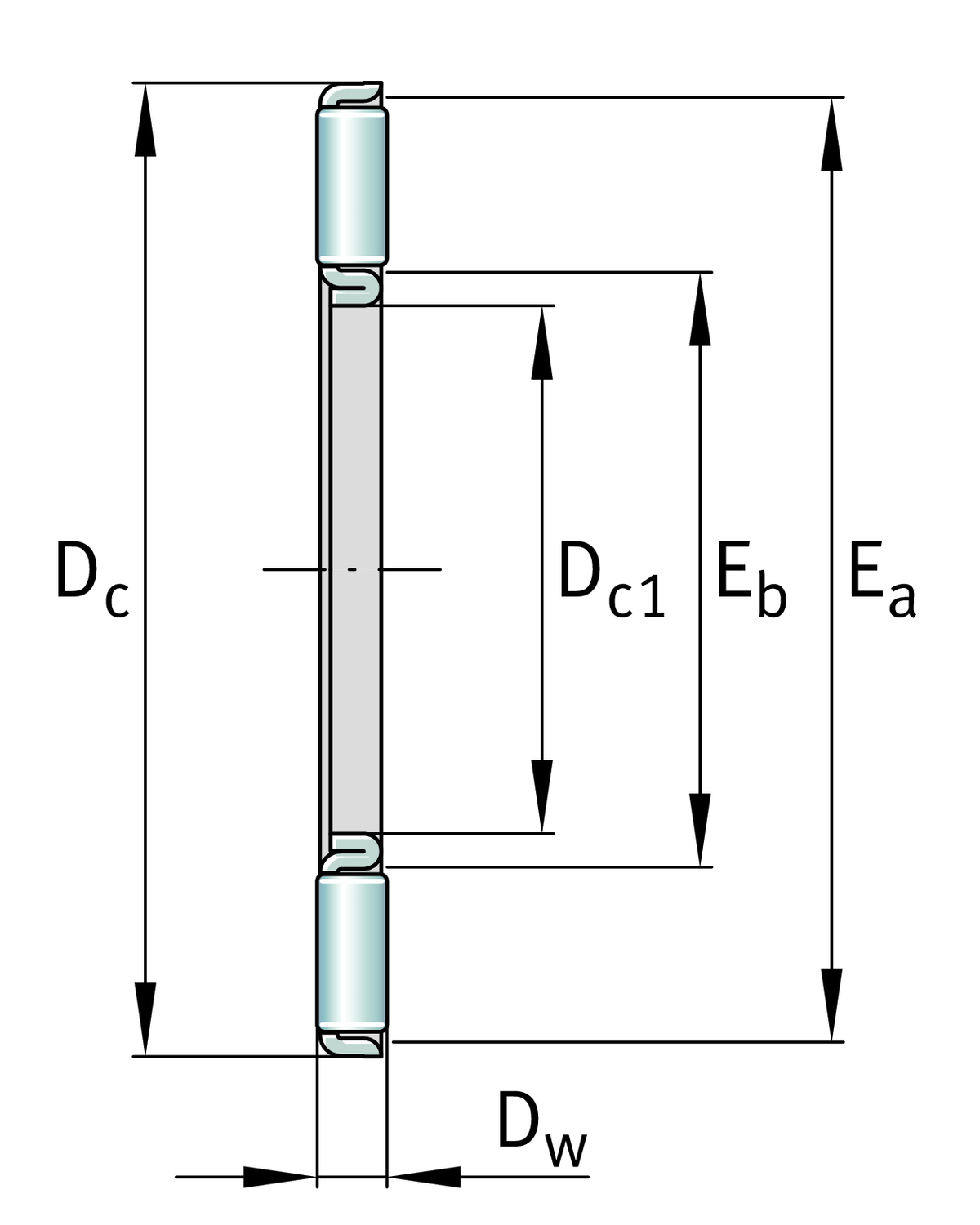

| Dc1 | 70 mm | Bore diameter cage |
| Dc | 95 mm | Outside diameter |
| Dw | 4 mm | Rolling element diameter |

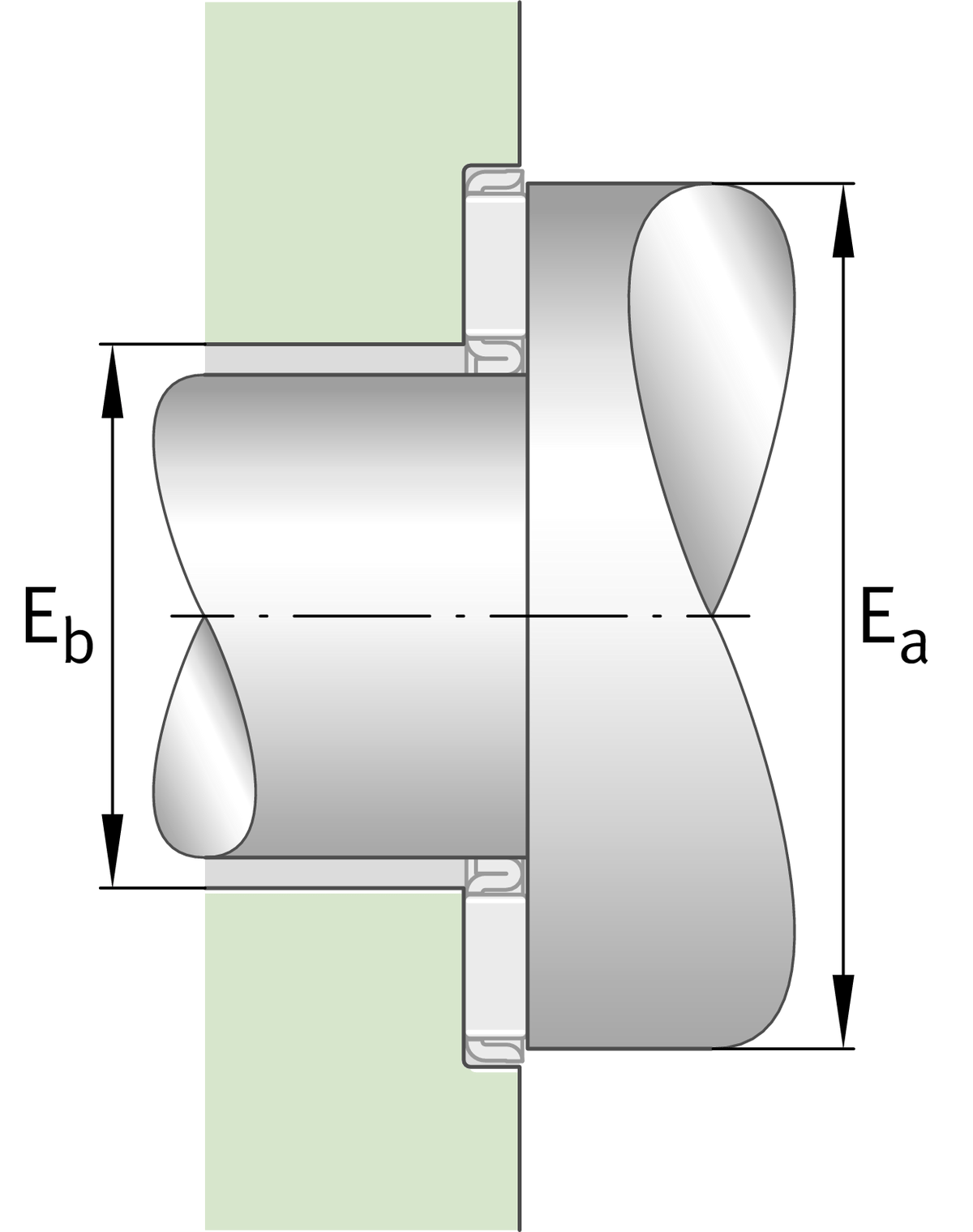

| Ea | 93 mm | Raceway dimension |
| Eb | 74 mm | Raceway dimension |
| ca | 54,000 N | Basic dynamic load rating, axial |
| c0a | 255,000 N | Basic static load rating, axial |
| cua | 27,000 N | Fatigue load limit, axial |
| nG | 3,500 1/min | Limiting speed |
| nϑr | 1,430 1/min | Reference speed |
| ≈m | 49.15 g | Weight |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
AS7095 | Axial bearing washer |
