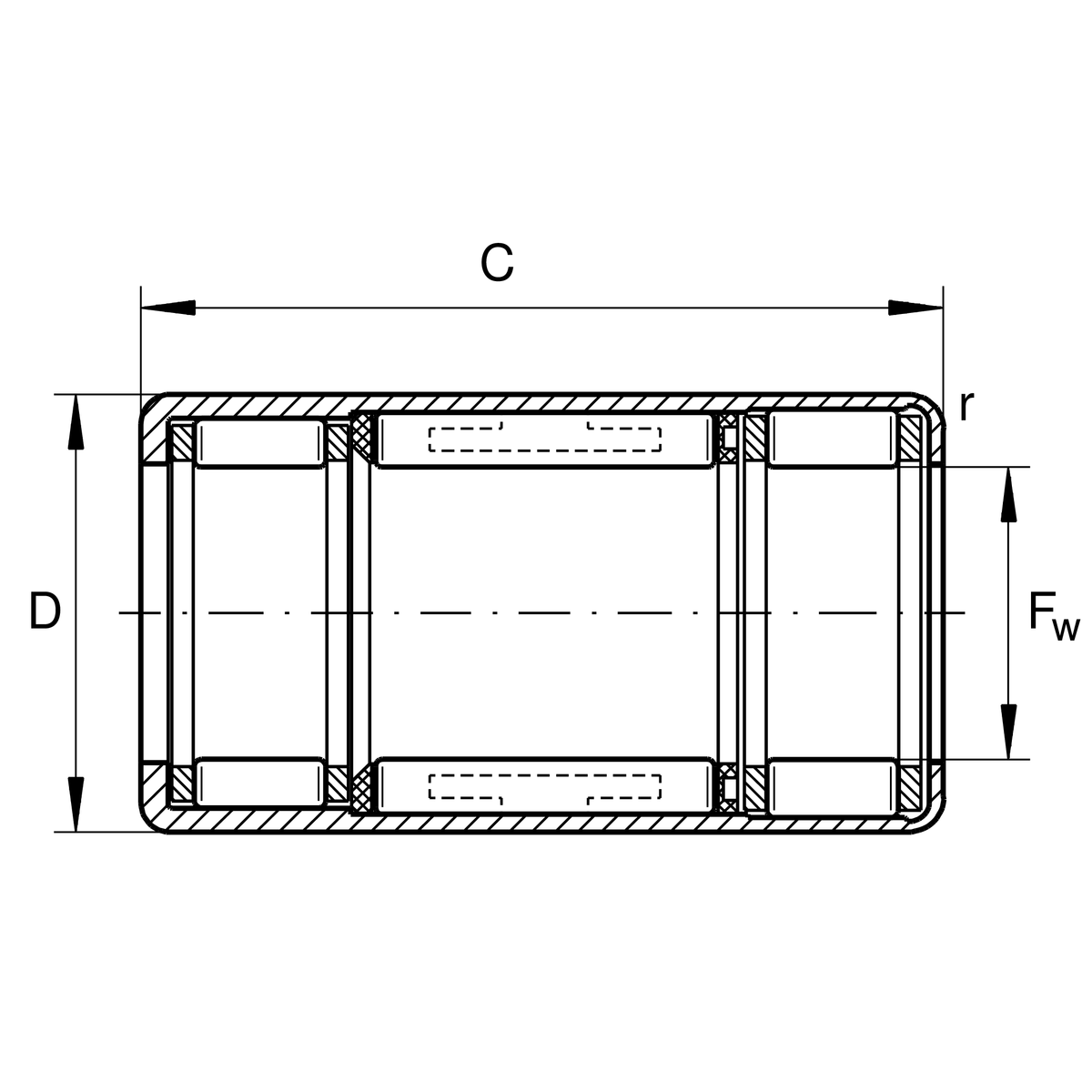

Main Dimensions & Performance Data
| Fw | 12 mm | Under roller diameter |
| D | 18 mm | Outside diameter |
| C | 26 mm | Width, outer ring |
| Cr | 6,300 N | Basic dynamic load rating, radial |
| C0r | 6,700 N | Basic static load rating, radial |
| rmin | 0.3 mm | Minimum chamfer dimension |
| Cur | 930 N | Fatigue load limit, radial |
| nGA | 8,000 1/min | Limiting speed for rotating outer ring |
| nGW | 11,000 1/min | Limiting speed for rotating shaft |
| ≈m | 17.77 g | Weight |
Mounting dimensions
| Md per | 12.2 Nm | Permissible torque |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 70 °C | Operating temperature max. |
Your current product variant
| Lubricant | L564 | Grease (L564/standart specific - dynamic) |
| Coating | Without | |
| Shape of outer surface | Without | Smooth outside surface |
| Spring design | Standard | Steel pressure springs |
