GE12-AW

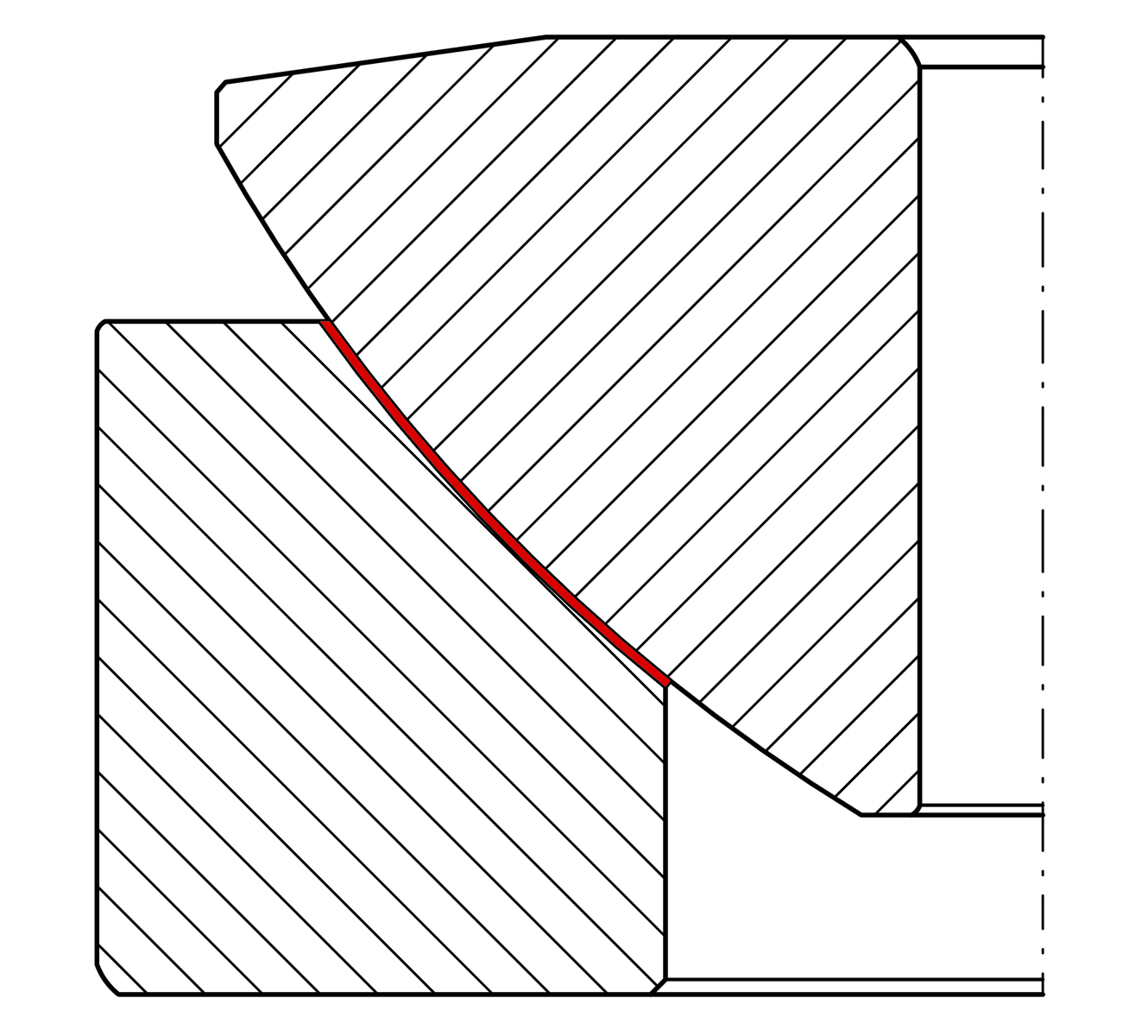

Spherical plain bearing GE12-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
12 mm
Bore diameter bearing
D
35 mm
Outside diameter bearing
T
13 mm
Height
B
9.3 mm
Width Inner ring
Ca
97,300 N
Basic dynamic load rating, axial
C0a
162,000 N
Basic static load rating, axial
≈m
72 g
Weight

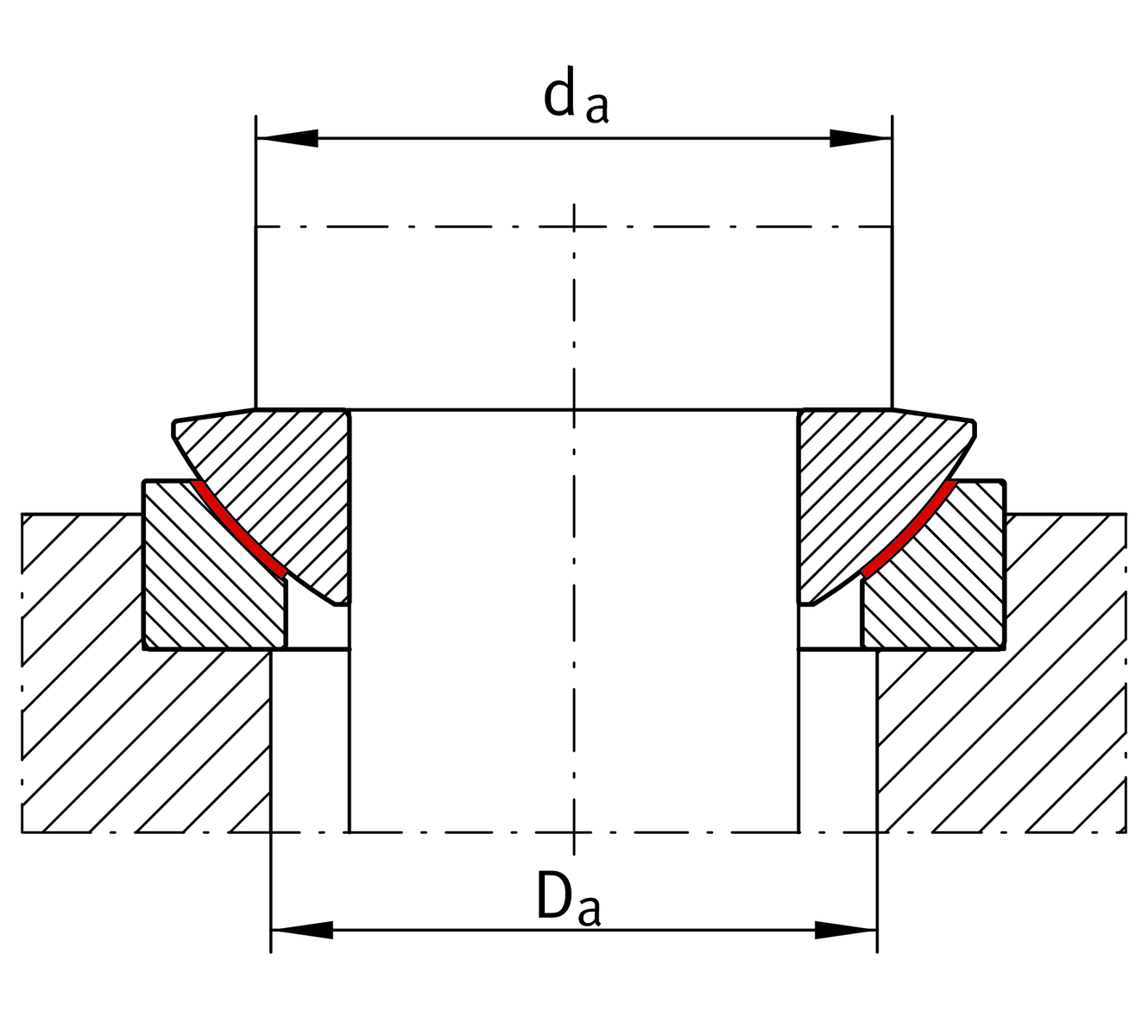

Mounting dimensions
r1smin
0.6 mm
Edge Spacing
r2smin
0.2 mm
Edge Spacing
da max
24 mm
Connection measure Inner ring
Da min
21.5 mm
Housing Connection Diameter

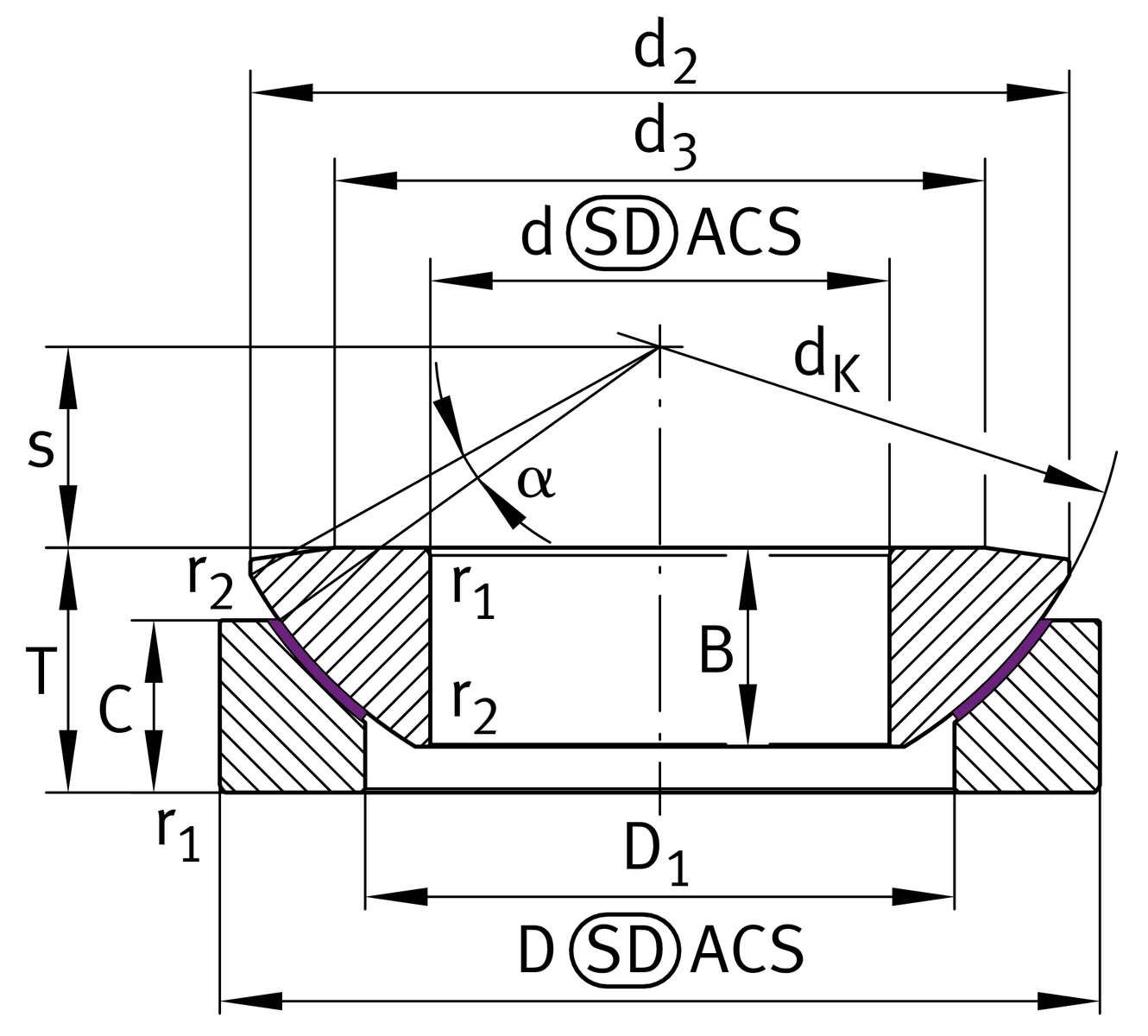

Dimensions
dK
37 mm
Ball diameter
d2
32 mm
Outer eye diameter
d3
24 mm
Front surface diameter of shaft washer
D1
19.5 mm
Bore diameter of housing washer
C
9 mm
Width Outer ring
s
8 mm
Plane Surface Spacing
α
9 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.008 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.011 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.5 mm
Height, lower tolerance
BUT
-0.24 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.24 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.
