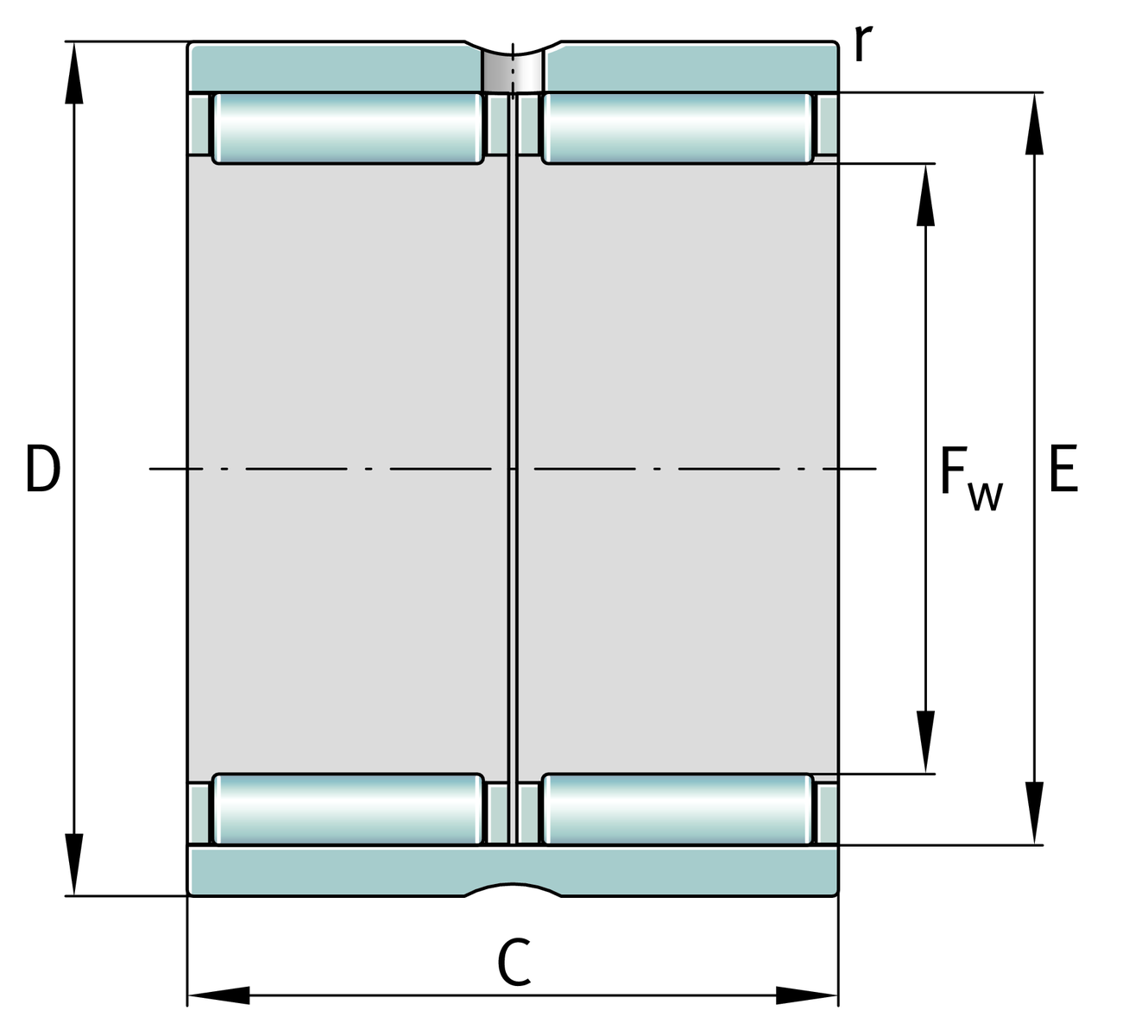

Main Dimensions & Performance Data
| Fw | 60 mm | Under roller diameter |
| D | 78 mm | Outside diameter |
| C | 40 mm | Width, outer ring |
| Cr | 85,000 N | Basic dynamic load rating, radial |
| C0r | 171,000 N | Basic static load rating, radial |
| Cur | 28,000 N | Fatigue load limit, radial |
| nG | 7,700 1/min | Limiting speed |
| nϑr | 4,650 1/min | Reference speed |
| ≈m | 435 g | Weight |

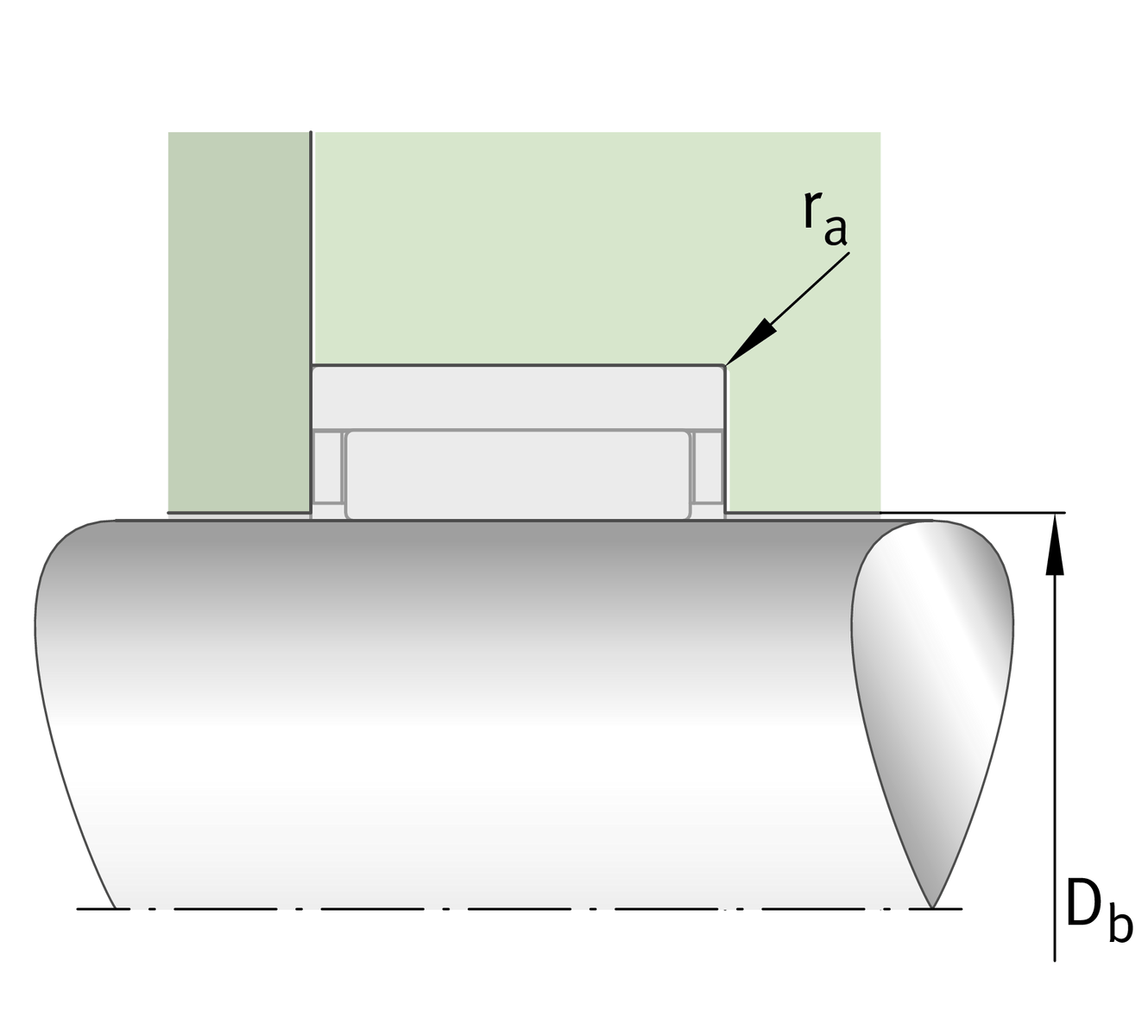

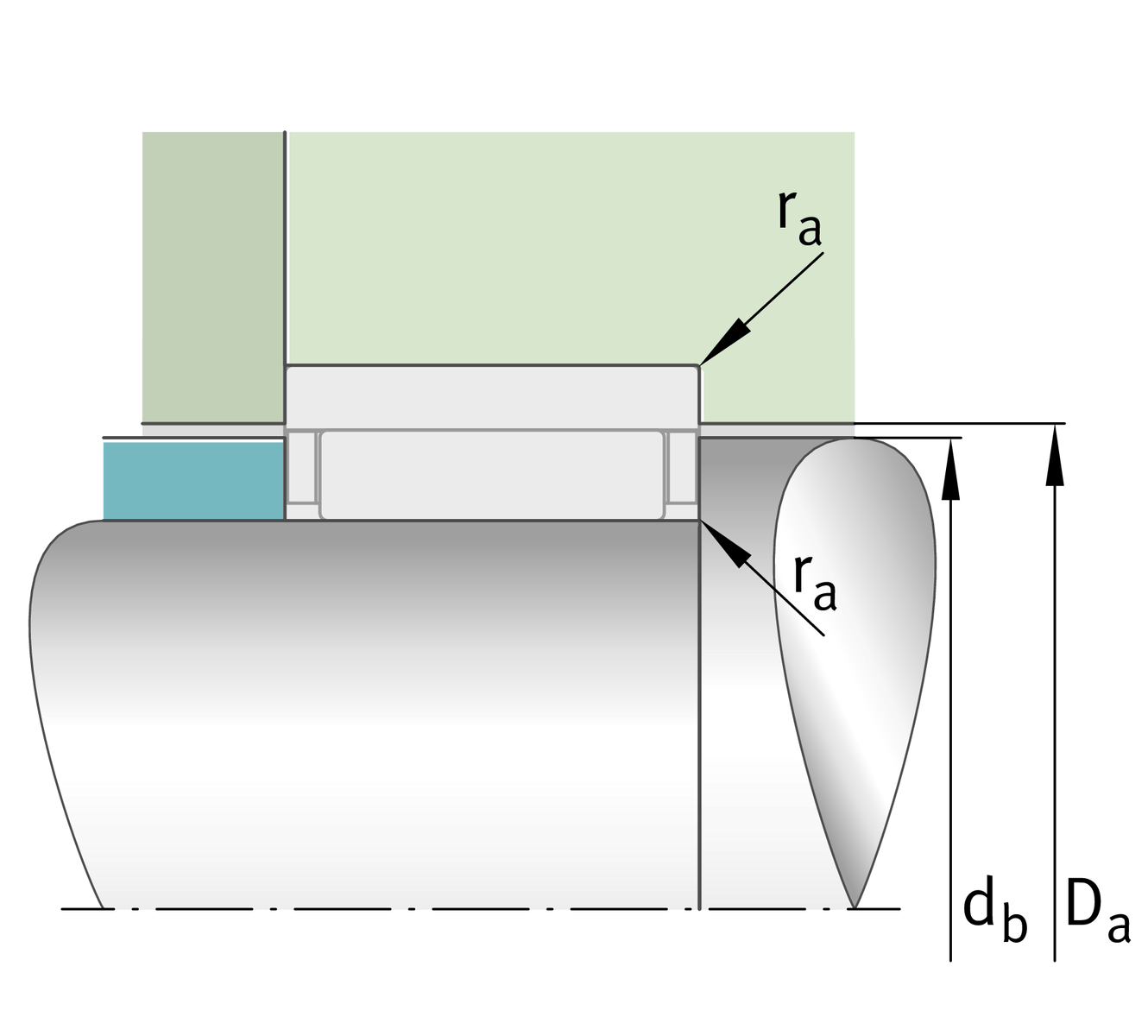

Mounting dimensions
| Db | 60.8 mm | Shoulder diameter axial guidance NK/housing |
| db | 67.2 mm | Shoulder diameter axial guidance NK/shaft |
| Da | 68.8 mm | Shoulder diameter outer ring |
| ra max | 1 mm | Maximum recess radius |
Dimensions
| E | 68 mm | Raceway diameter outer ring |
| rmin | 1 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Lubrication hole | ASR1 | ASR1 |
| Number of rolling element rows | ZW | Double-row design |
