GE65-214-XL-KRR-B-FA164
Radial insert ball bearing GE65-214-XL-KRR-B-FA164
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
65 mm
Bore diameter
DSP
125 mm
Outside diameter
B
48.5 mm
Width
Cur
2,090 N
Fatigue load limit, radial
B1
66 mm
Locking collar total width
Cr
62,000 N
Basic dynamic load rating, radial
C0r
44,000 N
Basic static load rating, radial
≈m
2.42 kg
Weight

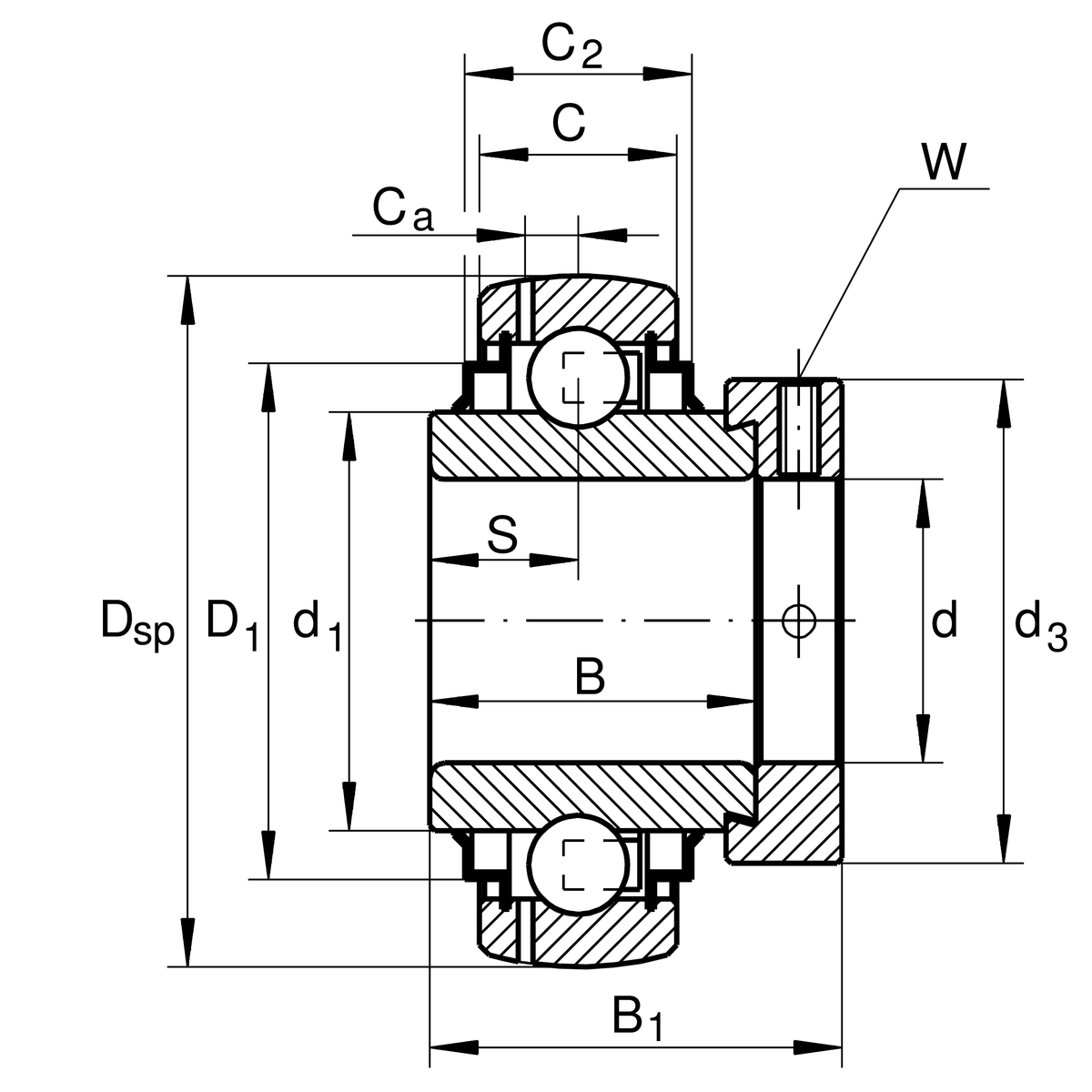

Dimensions
C
28 mm
Width, outer ring
C2
32 mm
Sealing total width
S
21.5 mm
Distance raceway
d1
85.2 mm
Rib diameter inner ring
D1
109 mm
Outside diameter seal
Ca
8.9 mm
Distance to lubrication hole
d3
96 mm
Outside diameter locking collar/locknut
W
6 mm
Width of flats

Calculation factors
f0
14.4
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Manufacturing instructionFA164High temperature design up to +250°C
