FAG INA Schaeffler
INA
RCJY55-XL
Flanged housing unit RCJY55-XL
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
55 mm
Bore diameter
L
162 mm
Flange width
U
64.4 mm
Total height unit
Cr
46,000 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
Cur
1,240 N
Fatigue load limit, radial
≈m
3.22 kg
Weight

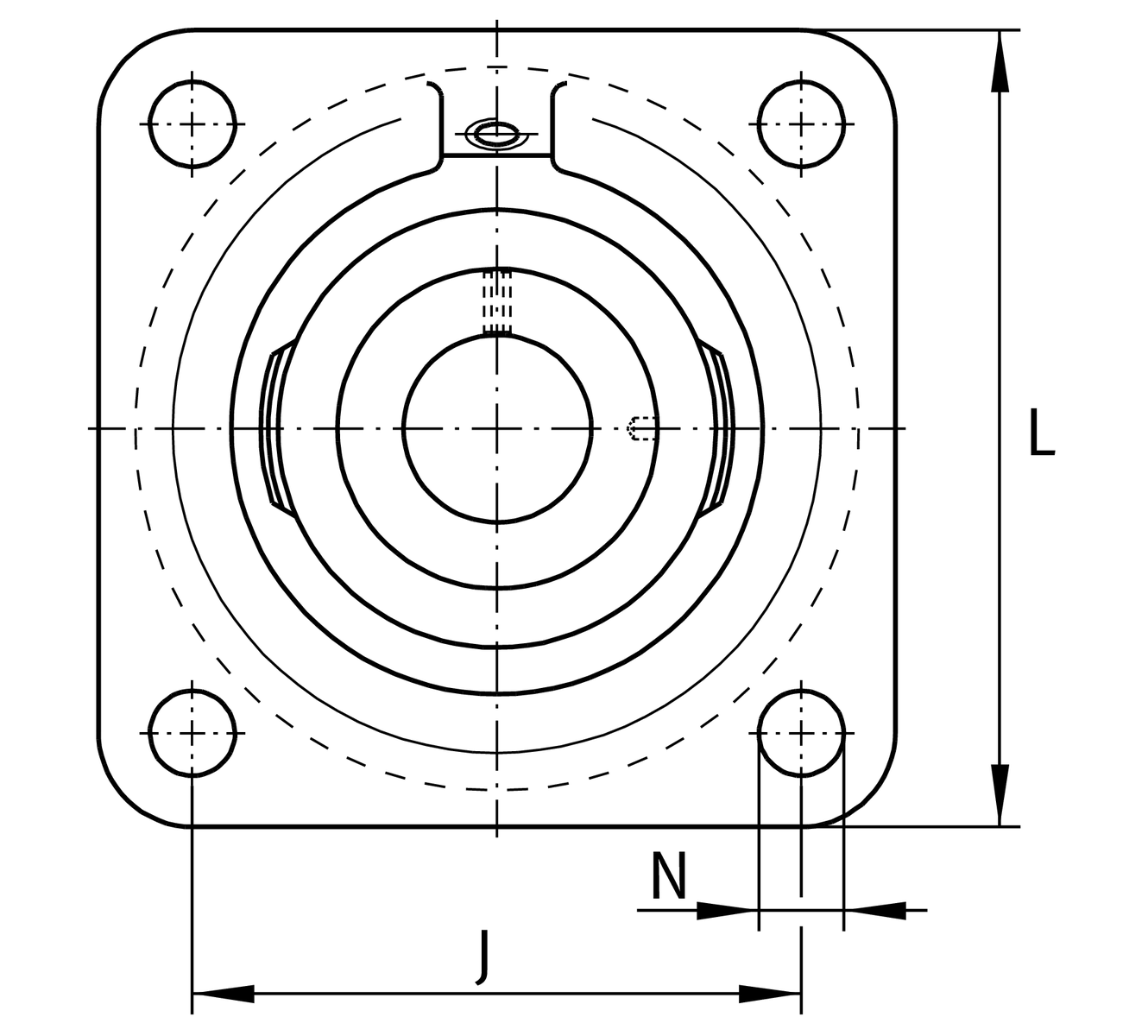

Mounting dimensions
J
130 mm
Distance fixing bore
N
18 mm
Fixing bore
n
4
Number of screwing holes

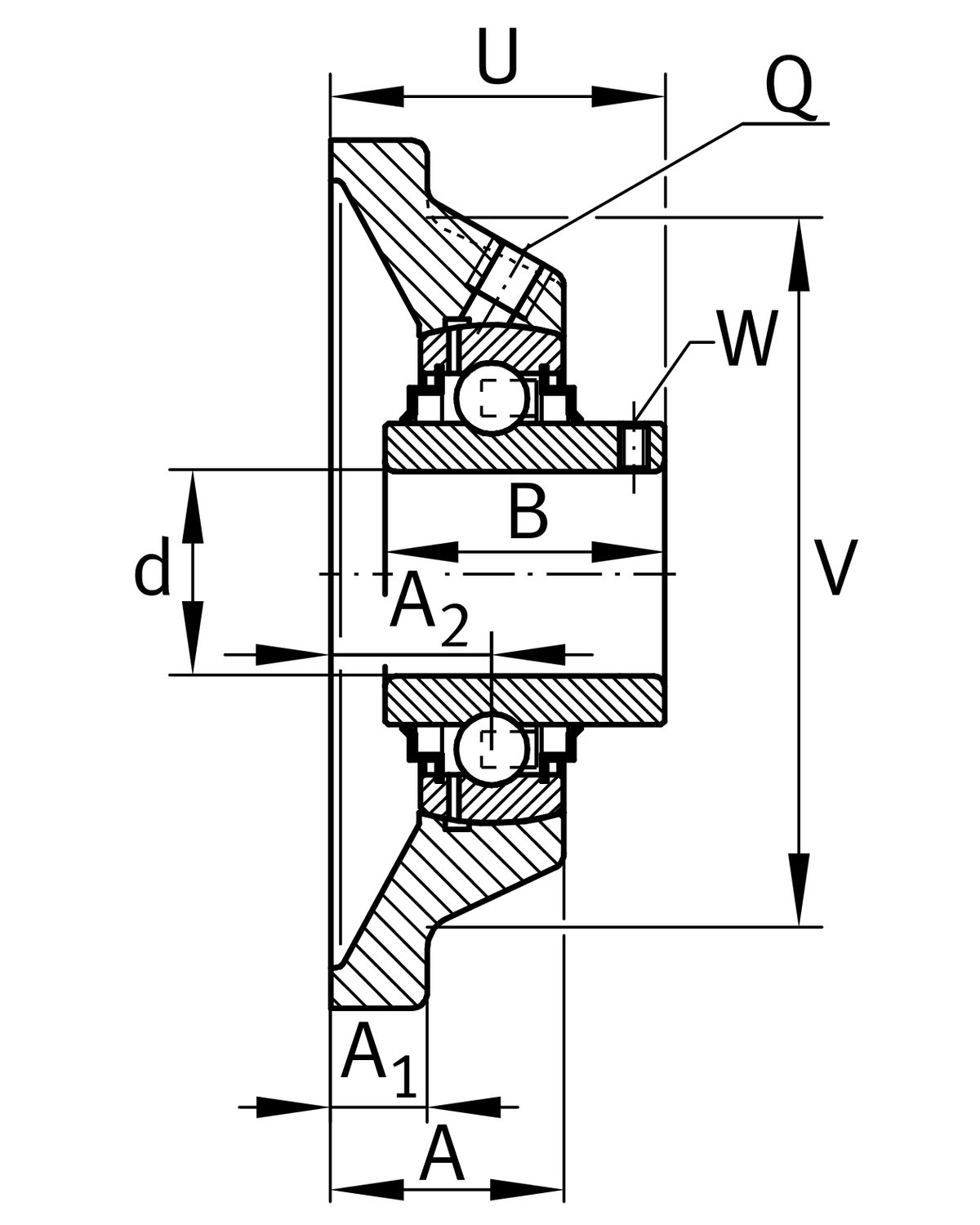

Dimensions
A
43.5 mm
Height housing
A1
15 mm
Thickness of flange
A2
31 mm
Distance raceway
B
55.6 mm
Width
V
140 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
CJ11
Housing
GYE55-XL-KRR-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
