Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| D | 170 mm | Outside diameter |
| T | 54 mm | Height |
| Ca | 560,000 N | Basic dynamic load rating, axial |
| C0a | 1,770,000 N | Basic static load rating, axial |
| Cua | 183,000 N | Fatigue load limit, axial |
| nG | 2,300 1/min | Limiting speed |
| nϑr | 950 1/min | Reference speed |
| ≈m | 6.645 kg | Weight |

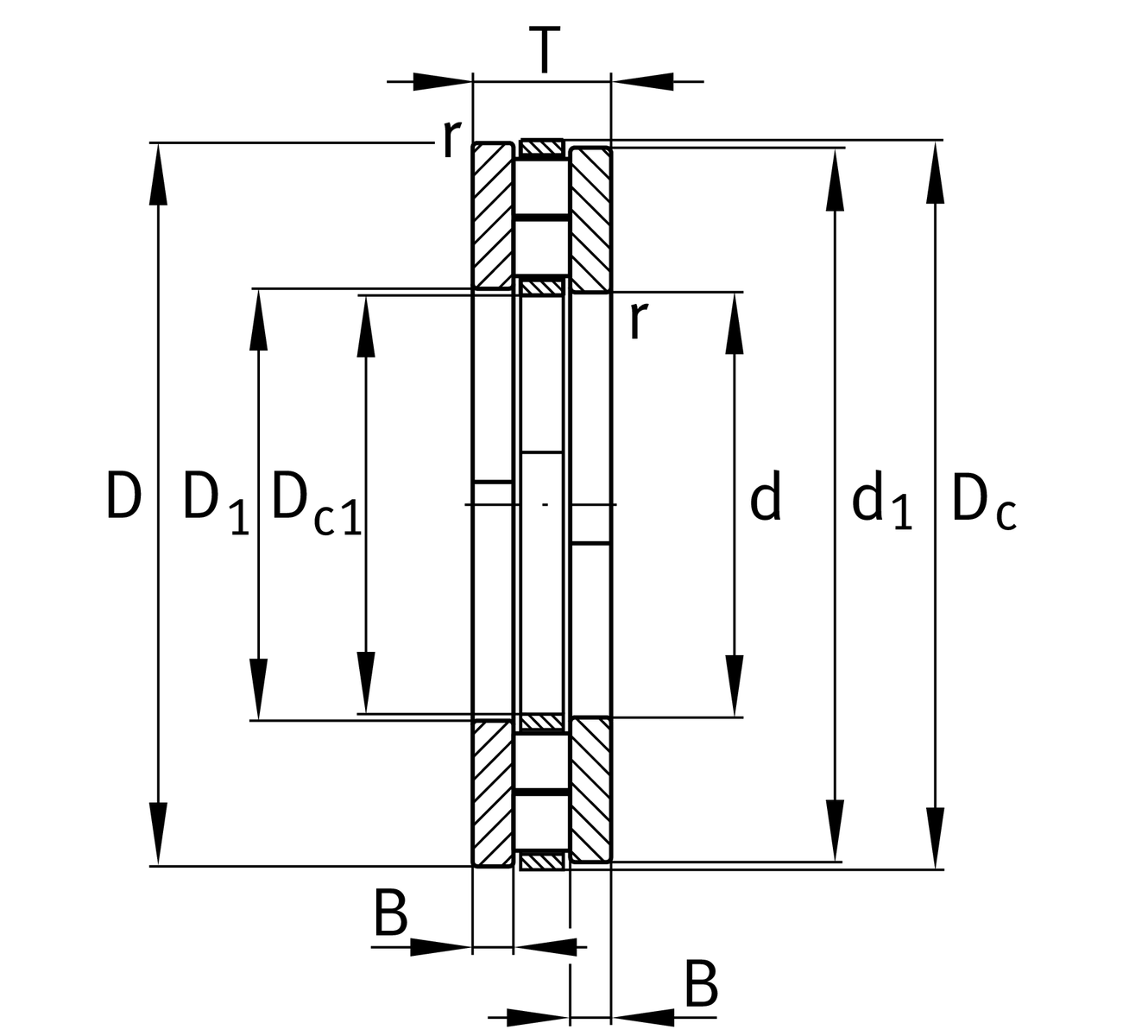

Dimensions
| D1 | 83 mm | Bore diameter housing washer |
| d1 | 170 mm | Rip diameter shaft washer |
| rmin | 2.1 mm | Minimum chamfer dimension |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
K89416-M | Axial roller and cage assembly | |
GS89416 | Housing Washer | |
WS89416 | Shaft washer |
