Main Dimensions & Performance Data
| d | 80 mm | Bore diameter |
| D | 100 mm | Outside diameter |
| B | 15 mm | Width |
| Cr | 19,200 N | Basic dynamic load rating, radial |
| C0r | 24,800 N | Basic static load rating, radial |
| Cur | 1,430 N | Fatigue load limit, radial |
| nG | 5,100 1/min | Limiting speed |
| nϑr | 3,650 1/min | Reference speed |
| ≈m | 0.23 kg | Weight |

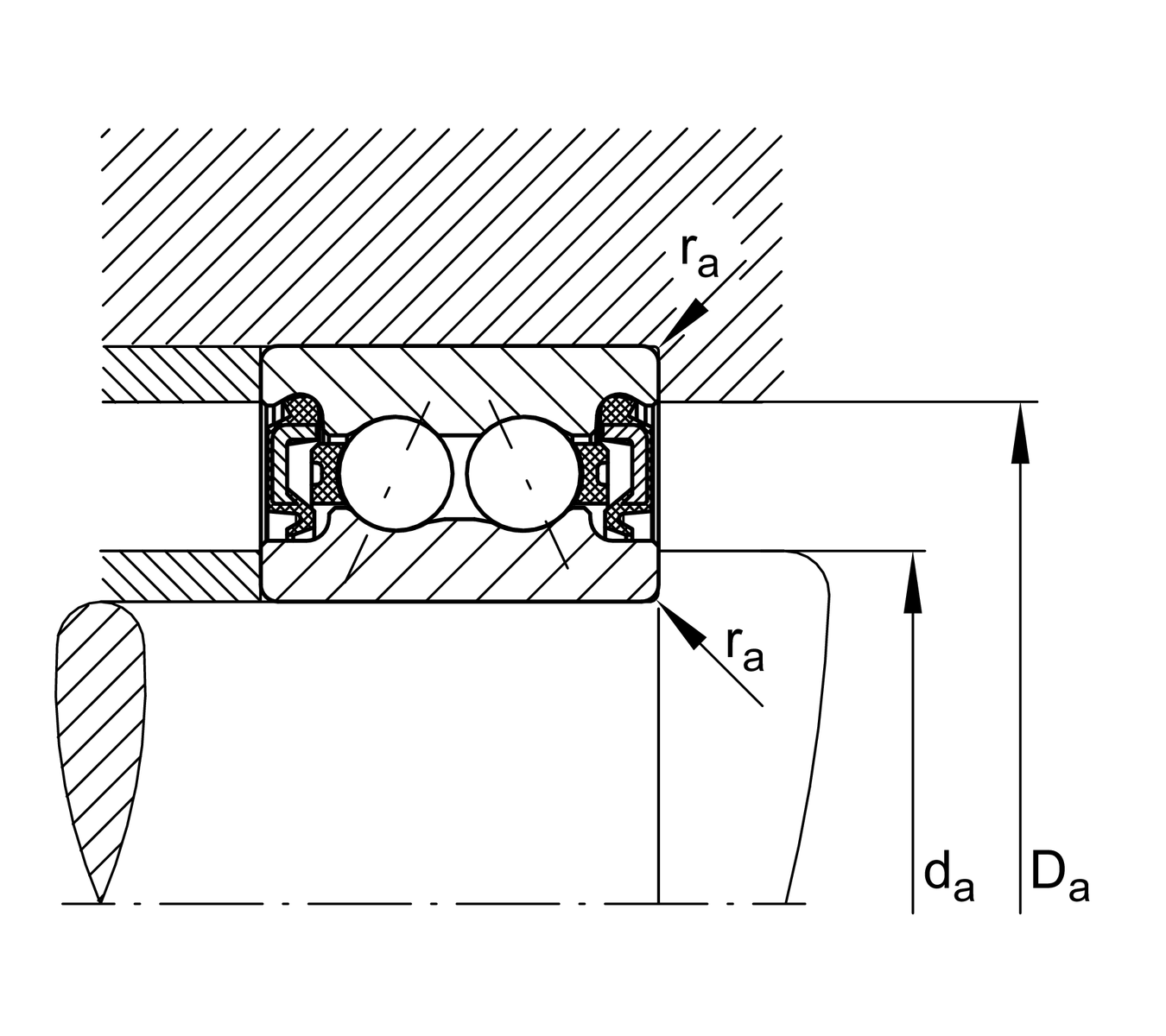

Mounting dimensions
| da min | 83.2 mm | Minimum diameter shaft shoulder |
| Da max | 96.8 mm | Maximum diameter of housing shoulder |
| ra max | 0.6 mm | Maximum fillet radius |

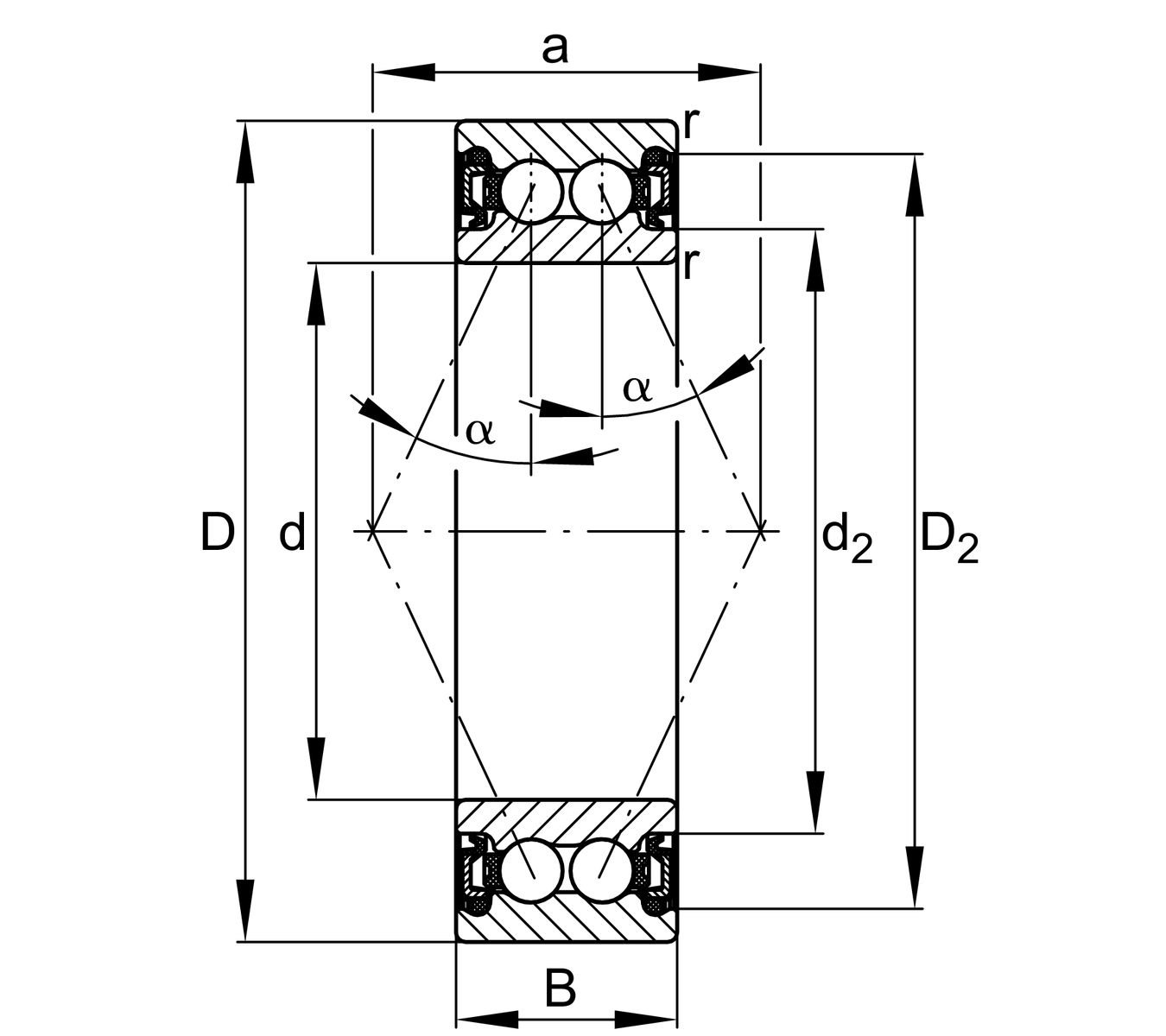

Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
| D1 | 93.47 mm | Shoulder diameter outer ring |
| D2 | 95.33 mm | Caliber diameter outer ring |
| d1 | 86.7 mm | Shoulder diameter inner ring |
| d2 | 85.53 mm | Caliber diamter inner ring |
| a | 47.8 mm | Distance between the apexes of the pressure cones |
| α | 25 ° | Contact angle |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Design variant | B | Bearing without filling slot |
| Sealing | 2RZ | Non-contact seal on both sides |
| Cage | TVH | solid cage made of glass-fiber reinforced polyamid PA66 |
| Tolerance class | PN | Normal (PN) |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | GA13 | Ball bearing and insert bearing grease, standard for D>62mm |
| Axial internal clearance | CN | Group N (CN) |
