WZ2-L-KD

Solid shaft WZ2-L-KD

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d_LW	50.8 mm	Diameter Shaft
dLW_Tol	L	Diameter tolerance shaft
L_Tol	-15 µm	Diameter Shaft tolerance high
L_Tol	-33 µm	Diameter tolerance low
≈m	15.912 kg/m	Weight

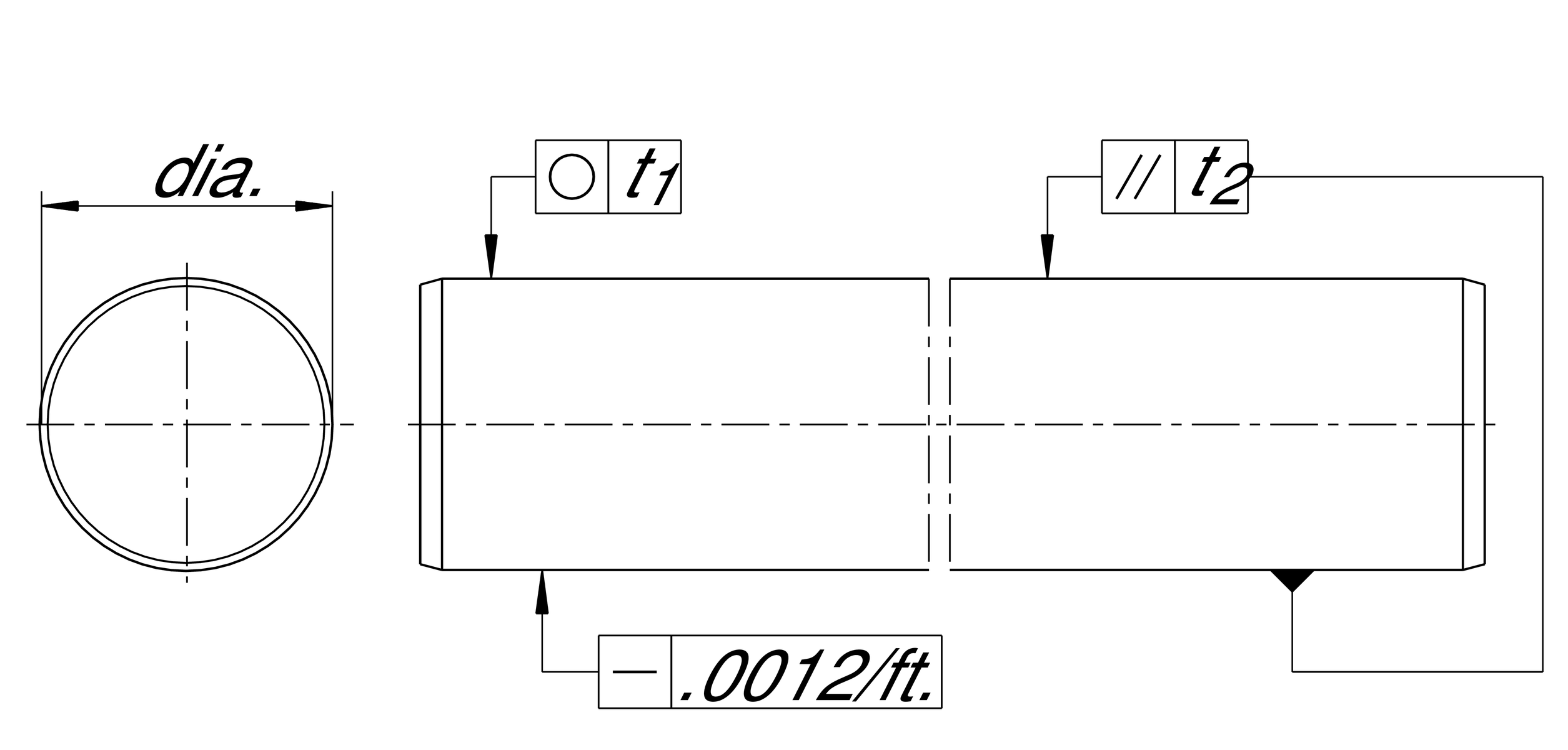

Mounting dimensions

t₁	7 µm	Roundness
t₂	11 mm	Parallelism ¹
SHD_min	2.2 mm	Surface Hardness Depth ²

Your current product variant

Size code	2"
Tolerance diameter	L	dLW Tol
Material	CF53	Heat treatable steel (material no.:1.1213)
Coating	KD	Thin dense chromium coating, protect A, anti-wear and anti-corrosion protection
Length	4000 mm	EWL max.
