WZ2-1/2-L-CF53

Solid shaft WZ2-1/2-L-CF53

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d_LW	63.5 mm	Diameter Shaft
dLW_Tol	L	Diameter tolerance shaft
L_Tol	-18 µm	Diameter Shaft tolerance high
L_Tol	-38 µm	Diameter tolerance low
≈m	24.86 kg/m	Weight

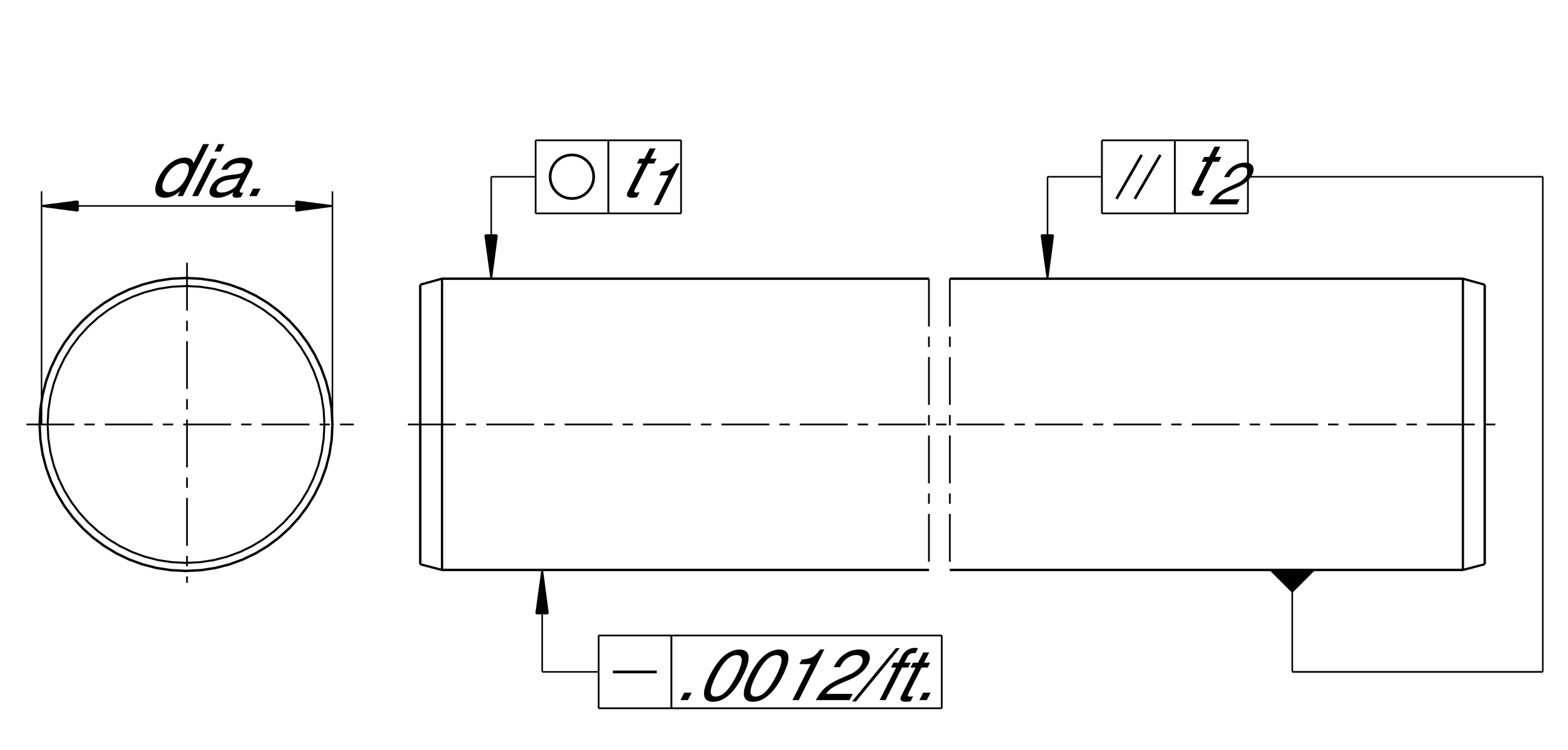

Mounting dimensions

t₁	8 µm	Roundness
t₂	13 mm	Parallelism ¹
SHD_min	2.2 mm	Surface Hardness Depth ²

Your current product variant

Size code	2-1/2"
Tolerance diameter	L	dLW Tol
Material	CF53	Heat treatable steel (material no.:1.1213)
Length	4000 mm	EWL max.
