Main Dimensions & Performance Data
| dLW | 6.35 mm | Diameter Shaft |
| dLWTol | L | Diameter tolerance shaft |
| LTol | -13 µm | Diameter Shaft tolerance high |
| LTol | -25 µm | Diameter tolerance low |
| ≈m | 0.25 kg/m | Weight |

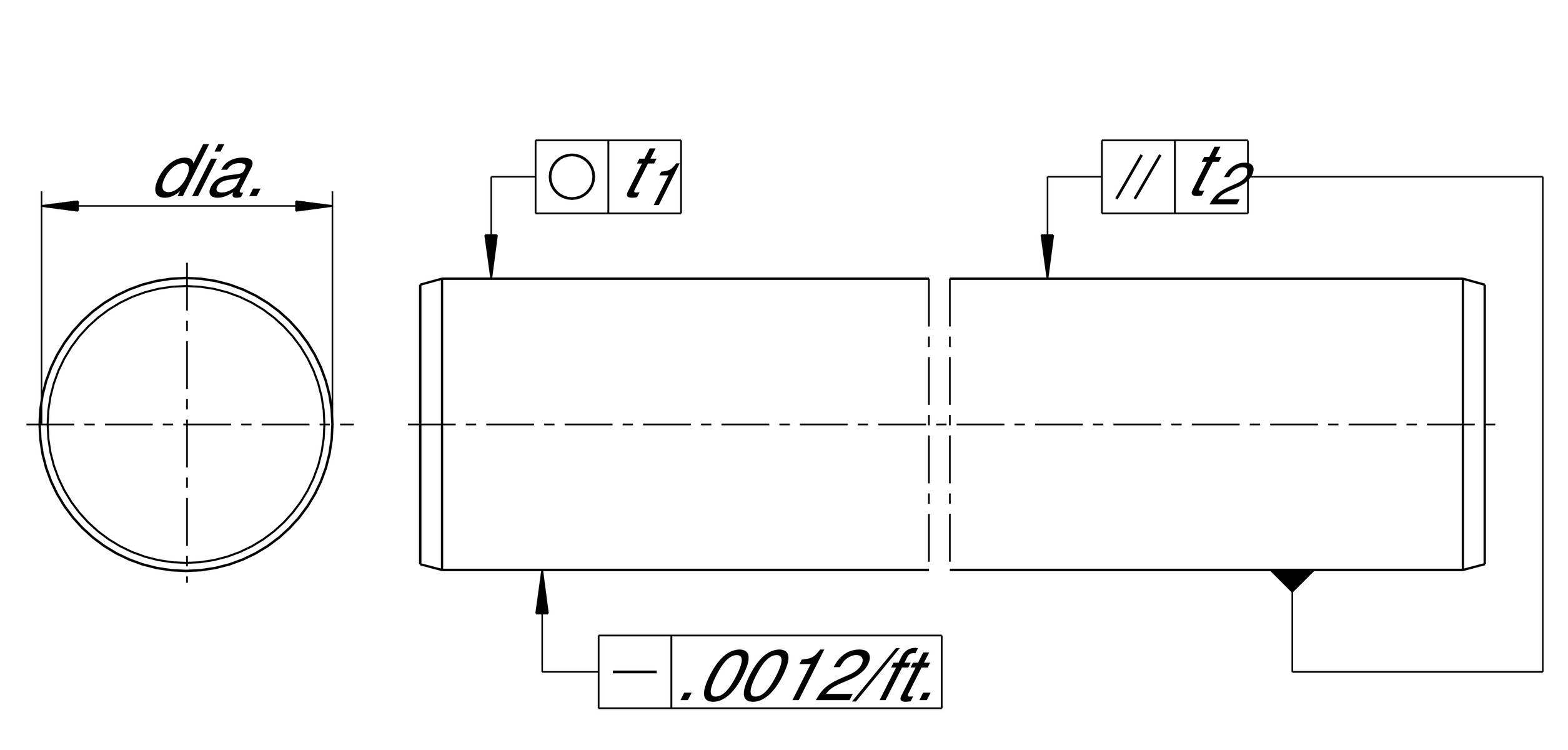

Mounting dimensions
| t1 | 4 µm | Roundness |
| t2 | 5 mm | Parallelism 1 |
| SHDmin | 0.4 mm | Surface Hardness Depth 2 |
Your current product variant
| Size code | 1/4" | |
| Tolerance diameter | L | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Coating | CR | Chrom |
| Length | 3850 mm | EWL max. |
