Main Dimensions & Performance Data
| dLW | 12.7 mm | Diameter Shaft |
| dLWTol | N | Diameter tolerance shaft |
| NTol | 0 µm | Diameter tolerance high |
| NTol | -5 µm | Diameter tolerance low |
| ≈m | 0.99 kg/m | Weight |

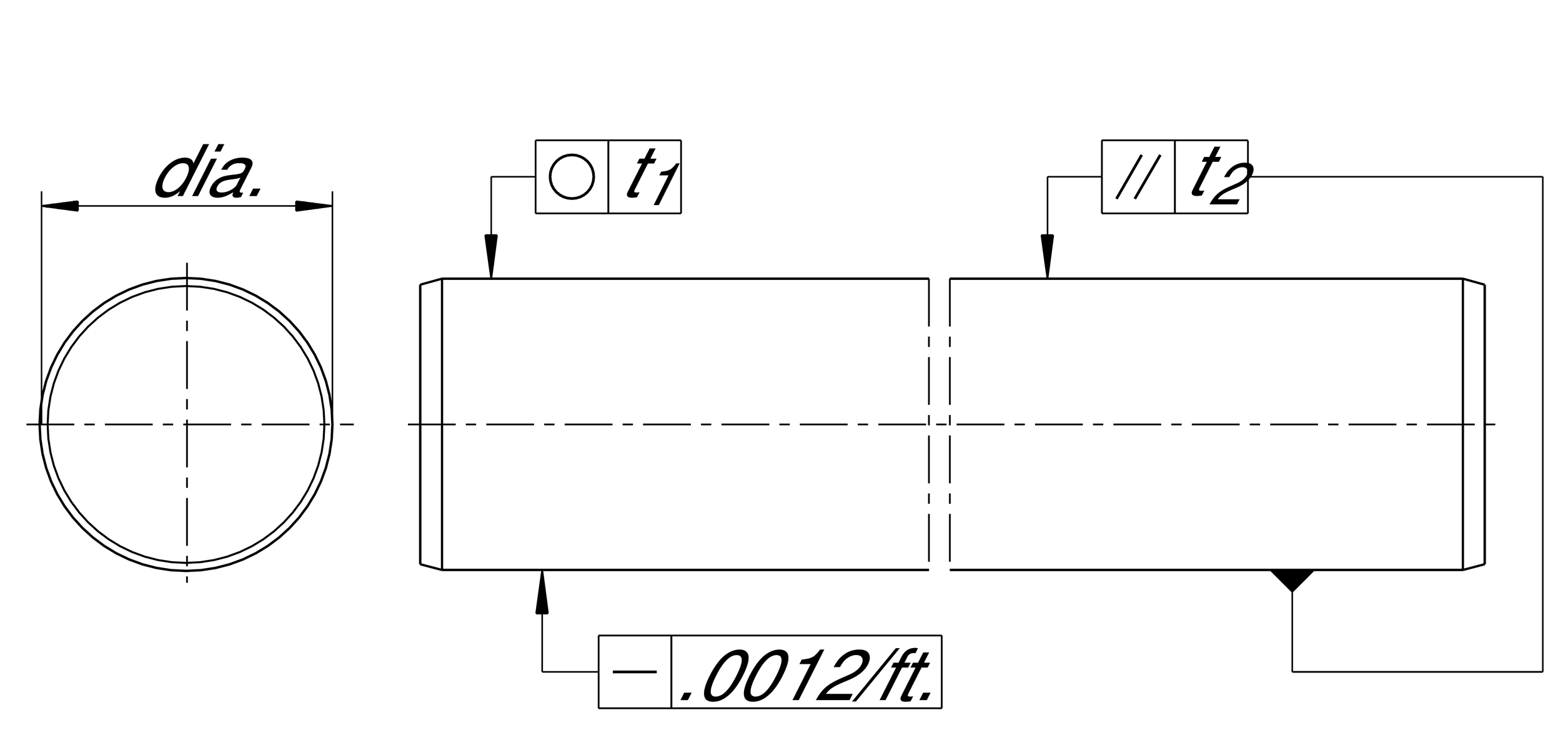

Mounting dimensions
| t1 | 5 µm | Roundness |
| t2 | 8 mm | Parallelism 1 |
| SHDmin | 0.6 mm | Surface Hardness Depth 2 |
Your current product variant
| Size code | 1/2" | |
| Tolerance diameter | N | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Length | 4268 mm | EWL max. |
