Main Dimensions & Performance Data
| dLW | 25.7 mm | Diameter Shaft |
| dLWTol | L | Diameter tolerance shaft |
| LTol | -13 µm | Diameter Shaft tolerance high |
| LTol | -25 µm | Diameter tolerance low |
| ≈m | 3.97 kg/m | Weight |

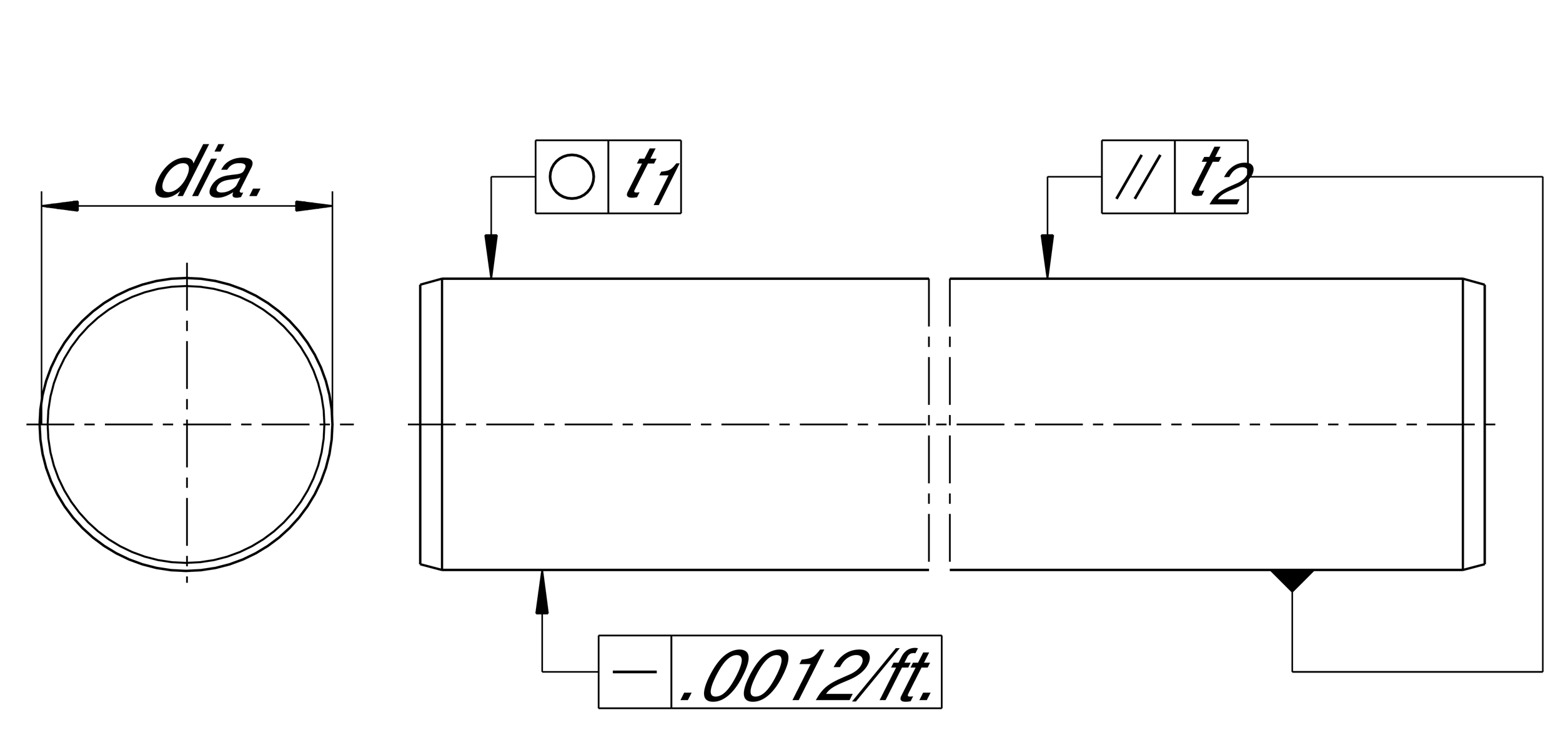

Mounting dimensions
| t1 | 6 µm | Roundness |
| t2 | 9 mm | Parallelism 1 |
| SHDmin | 0.9 mm | Surface Hardness Depth 2 |
Your current product variant
| Size code | 1" | |
| Tolerance diameter | L | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Coating | KD | Thin dense chromium coating, protect A, anti-wear and anti-corrosion protection |
| Length | 4000 mm | EWL max. |
