FAG INA Schaeffler
INA
HK0606
Drawn cup needle roller bearing open end HK0606
Thêm vào yêu cầu báo giá

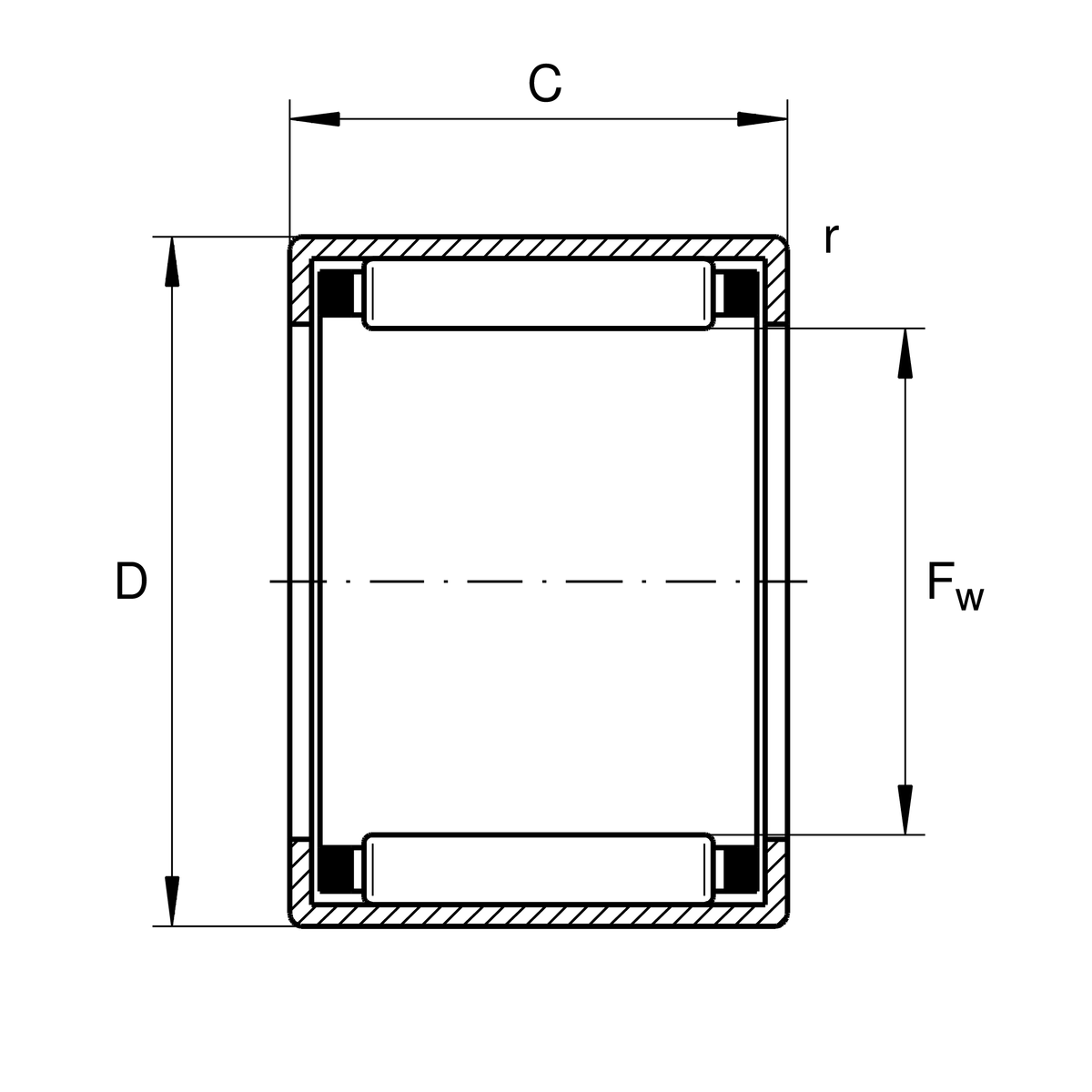

Main Dimensions & Performance Data
Fw
6 mm
Under roller diameter
D
10 mm
Outside diameter
C
6 mm
Width
Cr
1,610 N
Basic dynamic load rating, radial
C0r
1,220 N
Basic static load rating, radial
Cur
212 N
Fatigue load limit, radial
nG
36,500 1/min
Limiting speed
nG Grease
21,900 1/min
Limiting speed for grease lubrication
nϑr
31,500 1/min
Reference speed
≈m
1.512 g
Weight

Dimensions
C1
6 mm
Width, outer ring
rmin
0.4 mm
Minimum chamfer dimension

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
140 °C
Operating temperature max.

Additional information
GR6X10X2
Sealing ring

Your current product variant
CoatingWithout
SealingWithout
