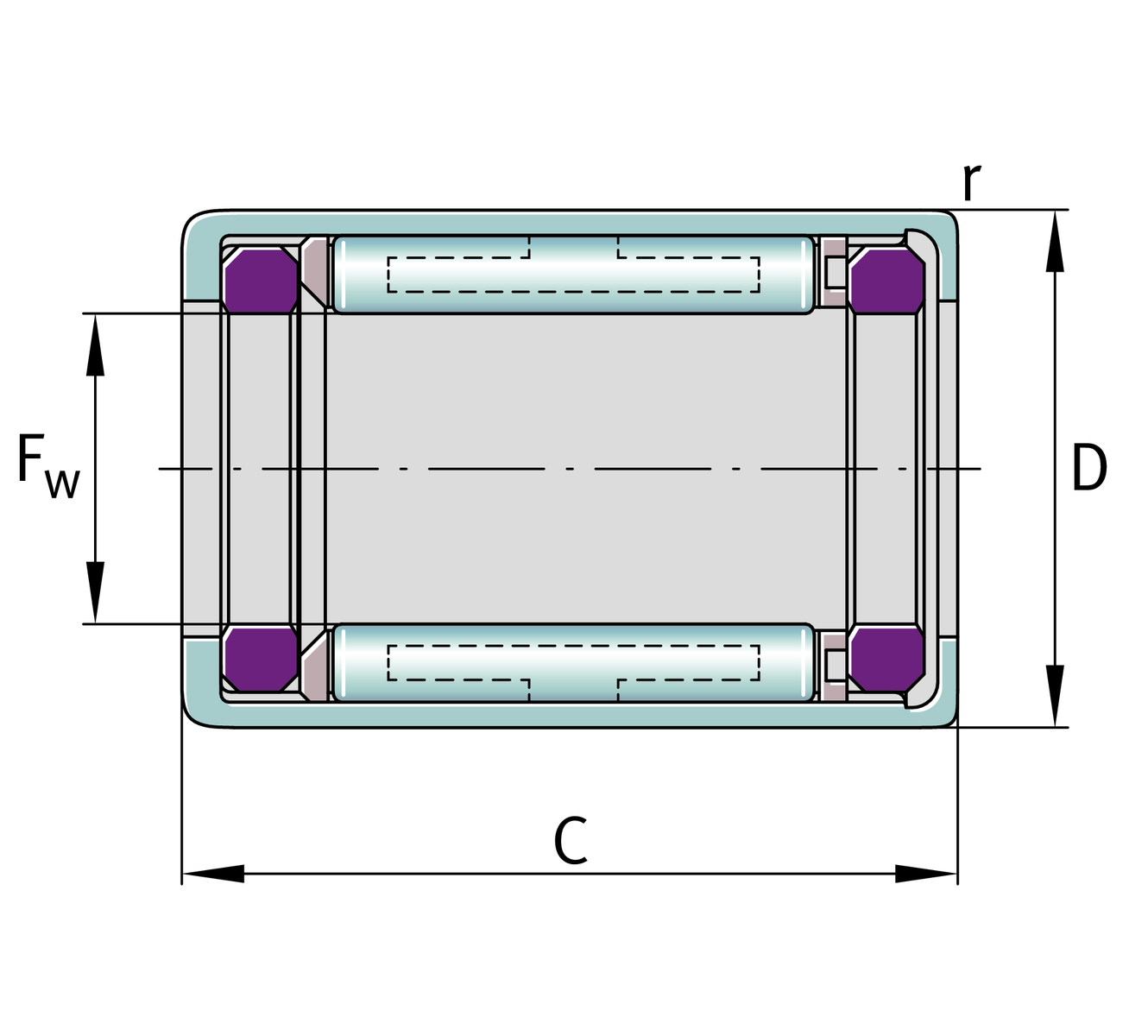

Main Dimensions & Performance Data
| Fw | 6 mm | Under roller diameter |
| D | 10 mm | Outside diameter |
| C | 15 mm | Width, outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| (Fr*n)max | 18,000 N/min | Limiting load |
| Fr max | 110 N | Permissible radial load |
| nGA | 13,000 1/min | Limiting speed for rotating outer ring |
| nGW | 23,000 1/min | Limiting speed for rotating shaft |
| ≈m | 3.815 g | Weight |
Mounting dimensions
| Md per | 1.76 Nm | Permissible torque |
Temperature range
| Tmin | -10 °C | Operating temperature min. |
| Tmax | 70 °C | Operating temperature max. |
Your current product variant
| Lubricant | L564 | Grease (L564/standart specific - dynamic) |
| Coating | Without | |
| Shape of outer surface | Without | Smooth outside surface |
| Spring design | Standard | Steel pressure springs |
