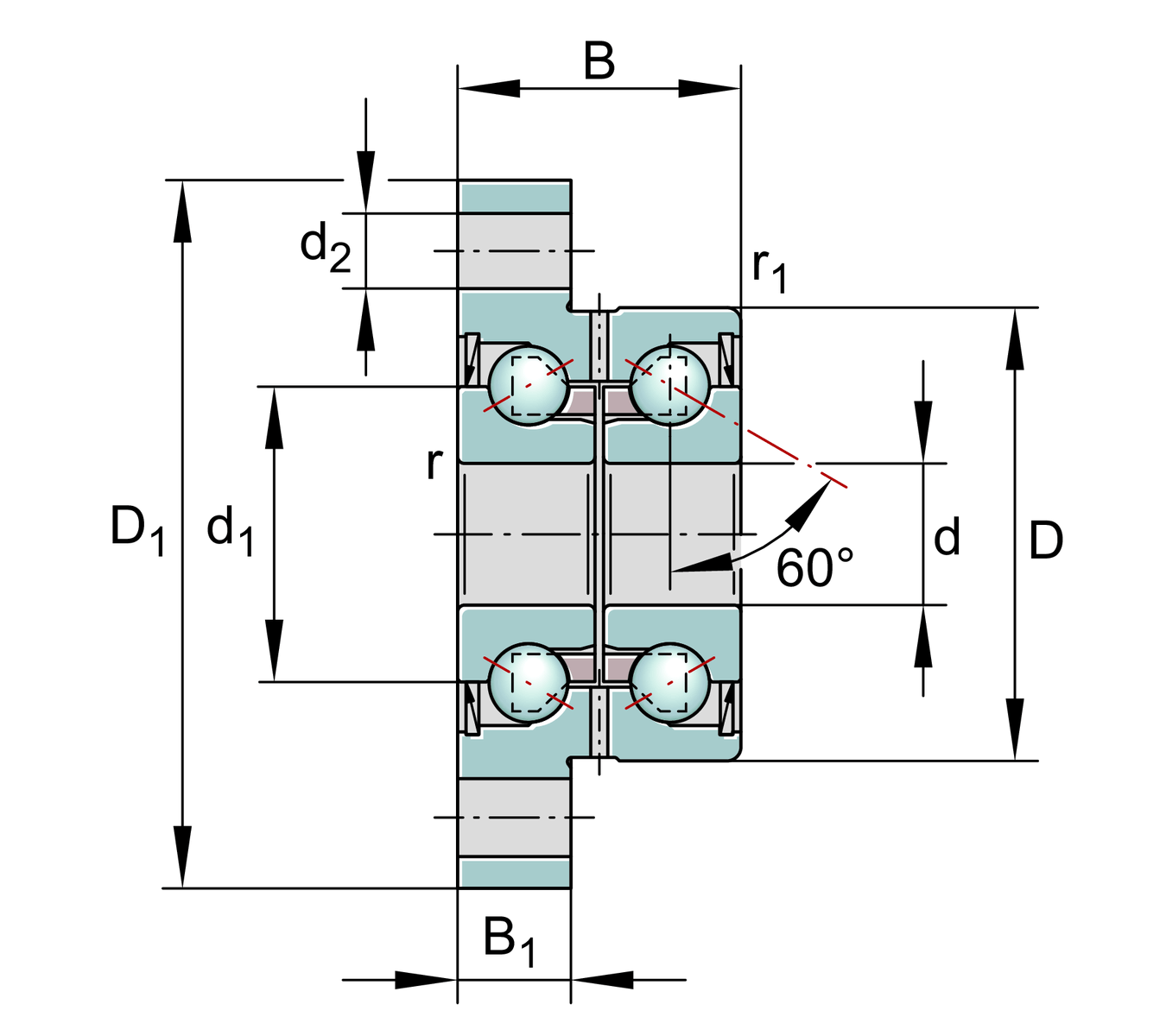

Main Dimensions & Performance Data
| d | 6 mm | Bore diameter |
0.002 mm | Bore diameter upper tolerance | |
-0.003 mm | Bore diameter lower tolerance | |
| D | 24 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.01 mm | Outside diameter lower tolerance | |
| B | 15 mm | Width |
0 mm | Width upper tolerance | |
-0.25 mm | Width lower tolerance | |
| Ca | 6,900 N | Basic dynamic load rating, axial |
| C0a | 8,500 N | Basic static load rating, axial |
| Cua | 385 N | Fatigue load limit, axial |
| nG Grease | 19,900 1/min | Limiting speed for grease lubrication |
| nϑ | 12,000 1/min | Thermally permissible speed |
| ≈m | 59 g | Weight |

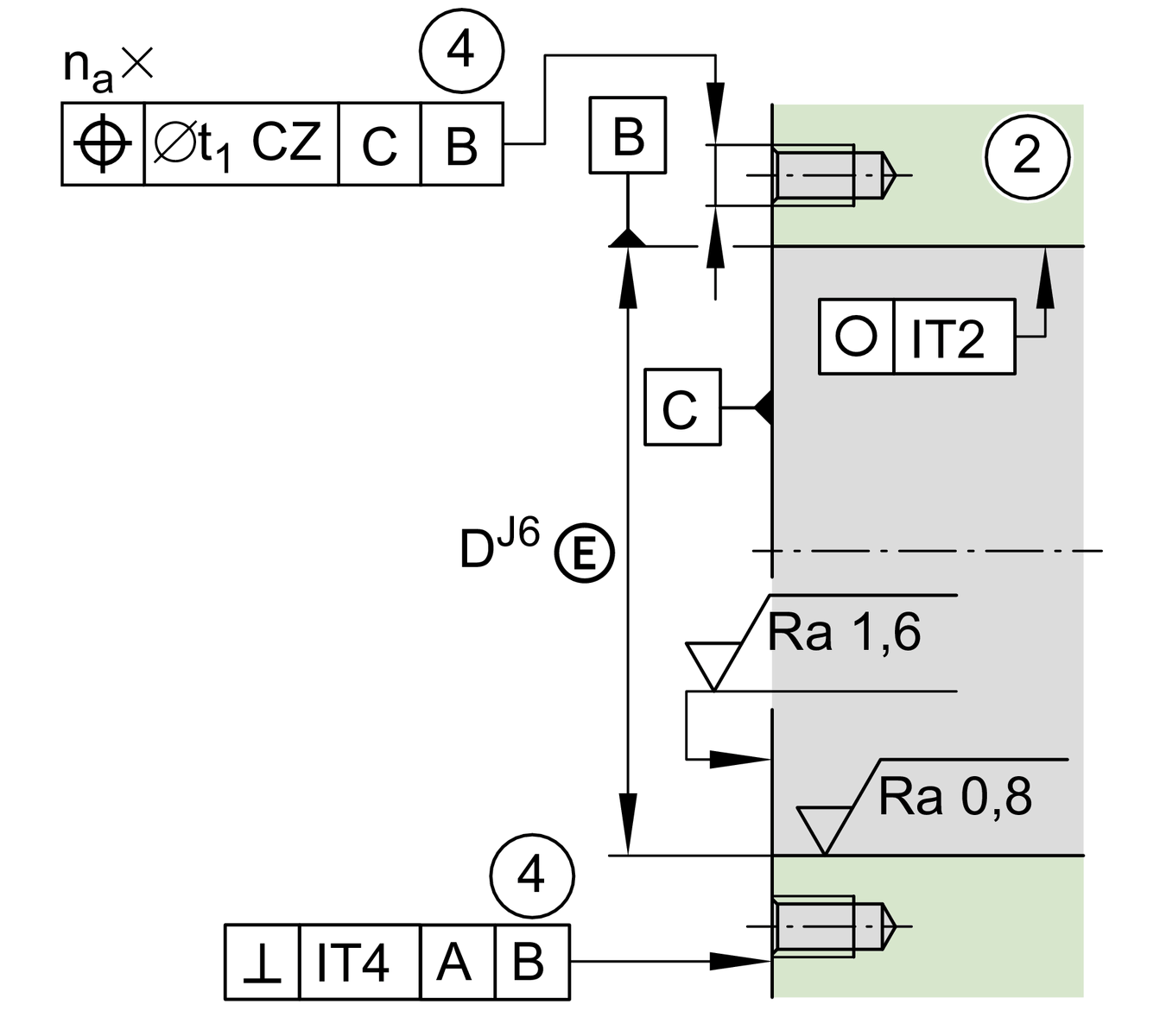

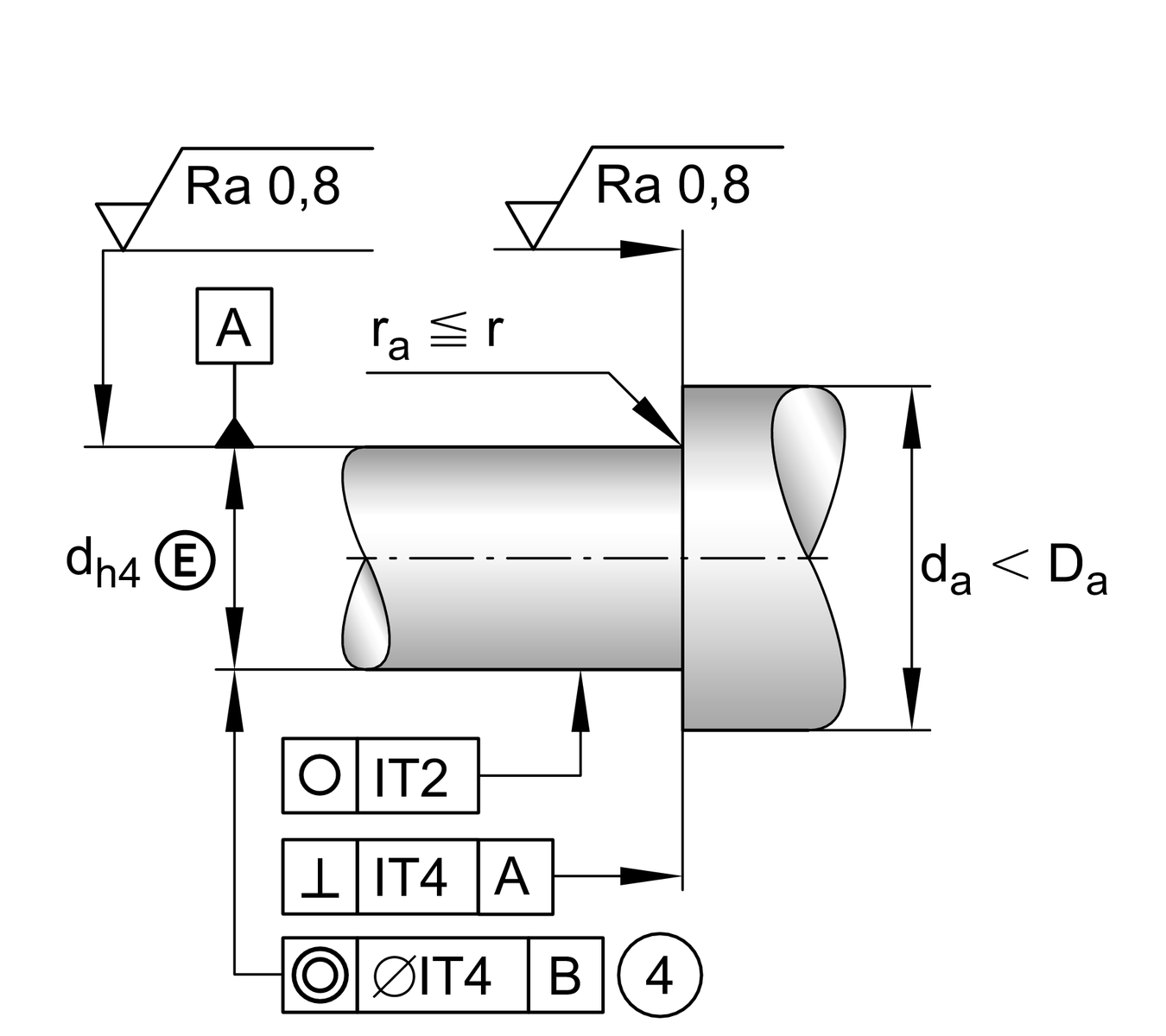

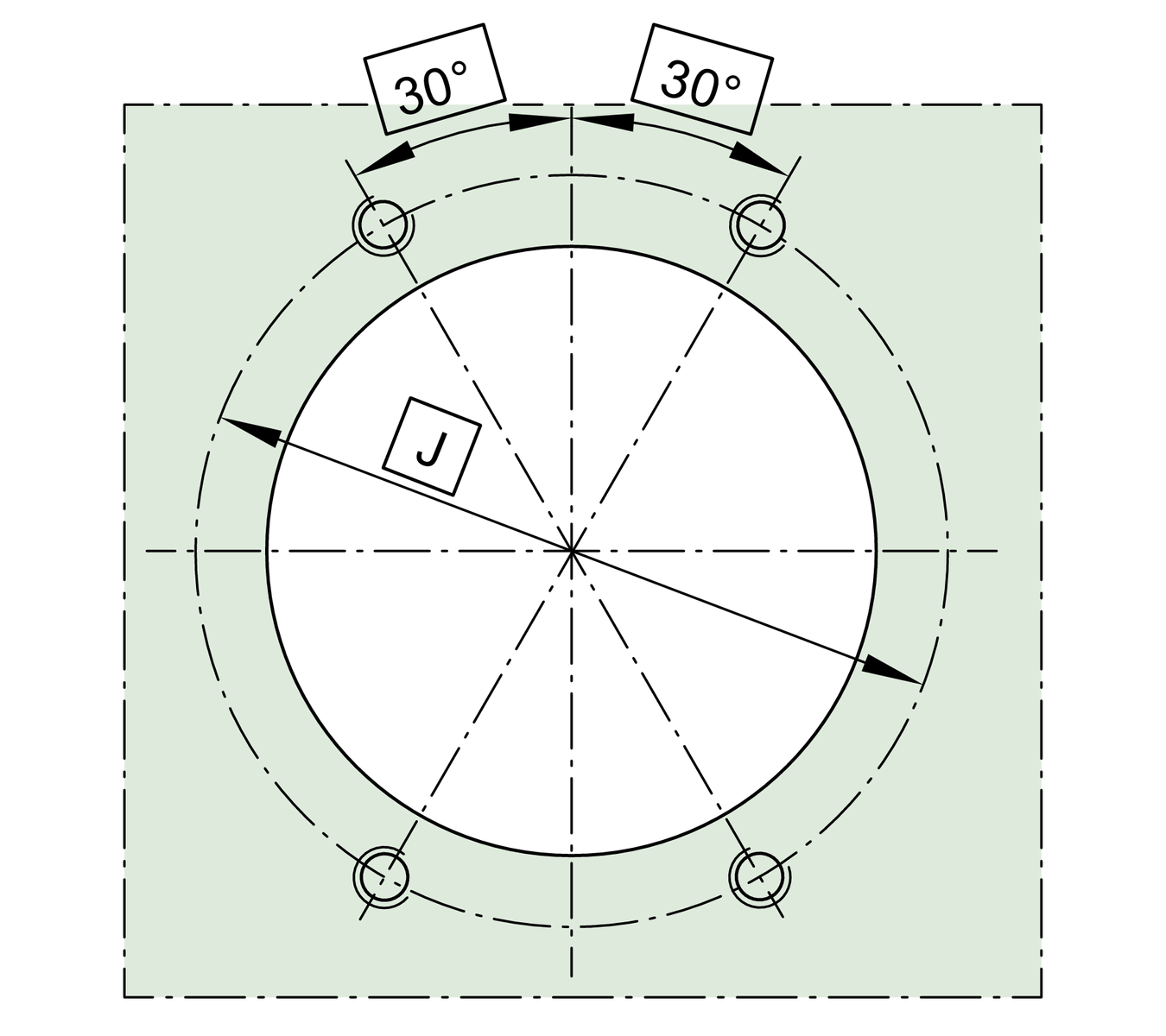

Mounting dimensions
| da min | 9 mm | Minimum diameter shaft shoulder |
| da max | 18 mm | Maximum diameter of shaft shoulder |
| t1 | 0.1 mm | position tolerance |
M4 | Screw size | |
| na | 4 | Number of screws |

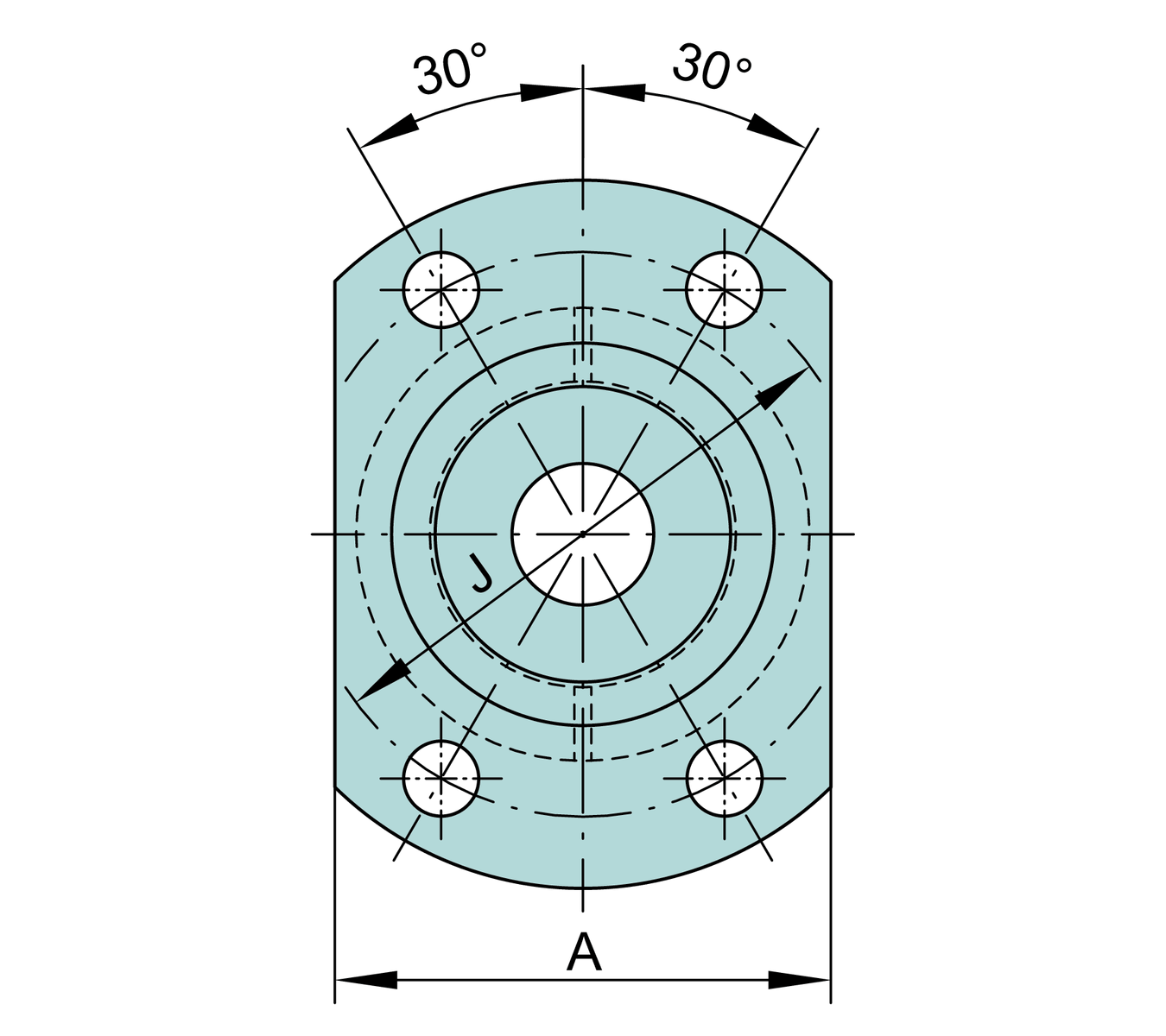

Dimensions
| d1 | 14 mm | Rib diameter inner ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| B1 | 6 mm | Thickness of flange |
| d2 | 4.5 mm | Fixing boring diameter |
| J | 32 mm | Pitch circle diameter (holes) |
| A | 27 mm | Flange width |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| MRL | 0.02 Nm | Bearing friction torque |
| caL | 200 N/µm | Rigidity axial |
| ckL | 8 Nm/mrad | Tilting stiffness |
| Mm | 0.0044 kg*cm2 | Mass moment of inertia |
2 µm | Axial runout | |
ZM06 | recommended INA precision locknut for radial locking (not included) | |
| MA | 2 Nm | Tightening torque nut |
2,404 N | Locknut force axial |
Your current product variant
| Sealing | 2Z | Minimal gap seals on both sides |
