Main Dimensions & Performance Data
| d | 290 mm | Bore diameter inner ring |
| D | 330 mm | Outside diameter |
| H | 20 mm | Height |
| Cr | 84,000 N | Basic dynamic load rating, radial |
| C0r | 217,000 N | Basic static load rating, radial |
| Ca | 203,000 N | Fatigue load limit, axial |
| Coa | 1,090,000 N | Basic static load rating, axial |
| Cur | 17,600 N | Fatigue limit load, radial |
| Cua | 72,000 N | Fatigue limit load, axial |
| nG | 200 1/min | Limiting speed |
| nϑr | 1,000 1/min | Reference speed |
| ≈m | 1.8 kg | Weight |

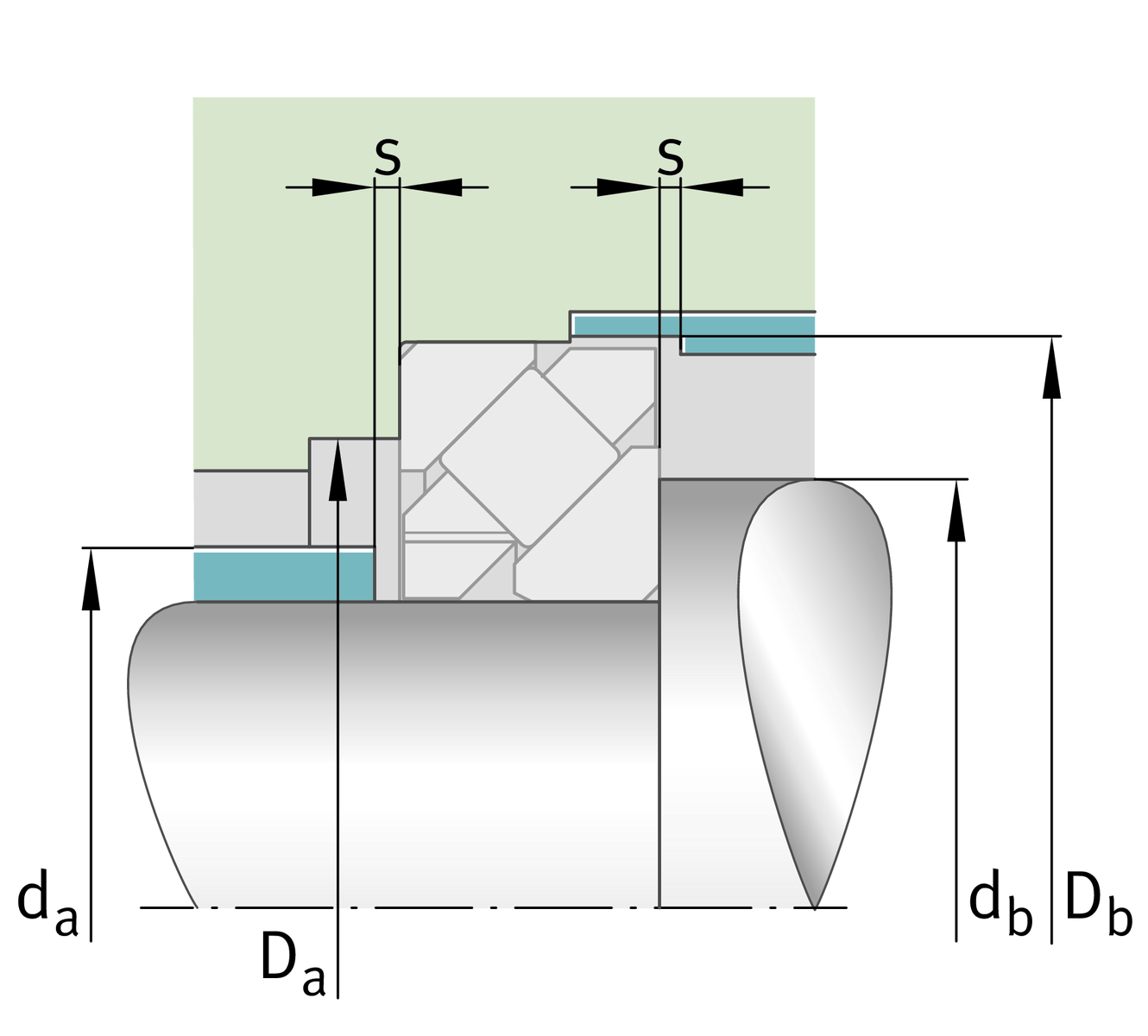

Mounting dimensions
| Da | 307.4 mm | Maximum diameter of housing shoulde |
| db | 312.6 mm | Minimum shaft shoulder |
| Dbmin | 331 mm | Housing undercut for cage |
| s | 2.5 mm | minimum distance |

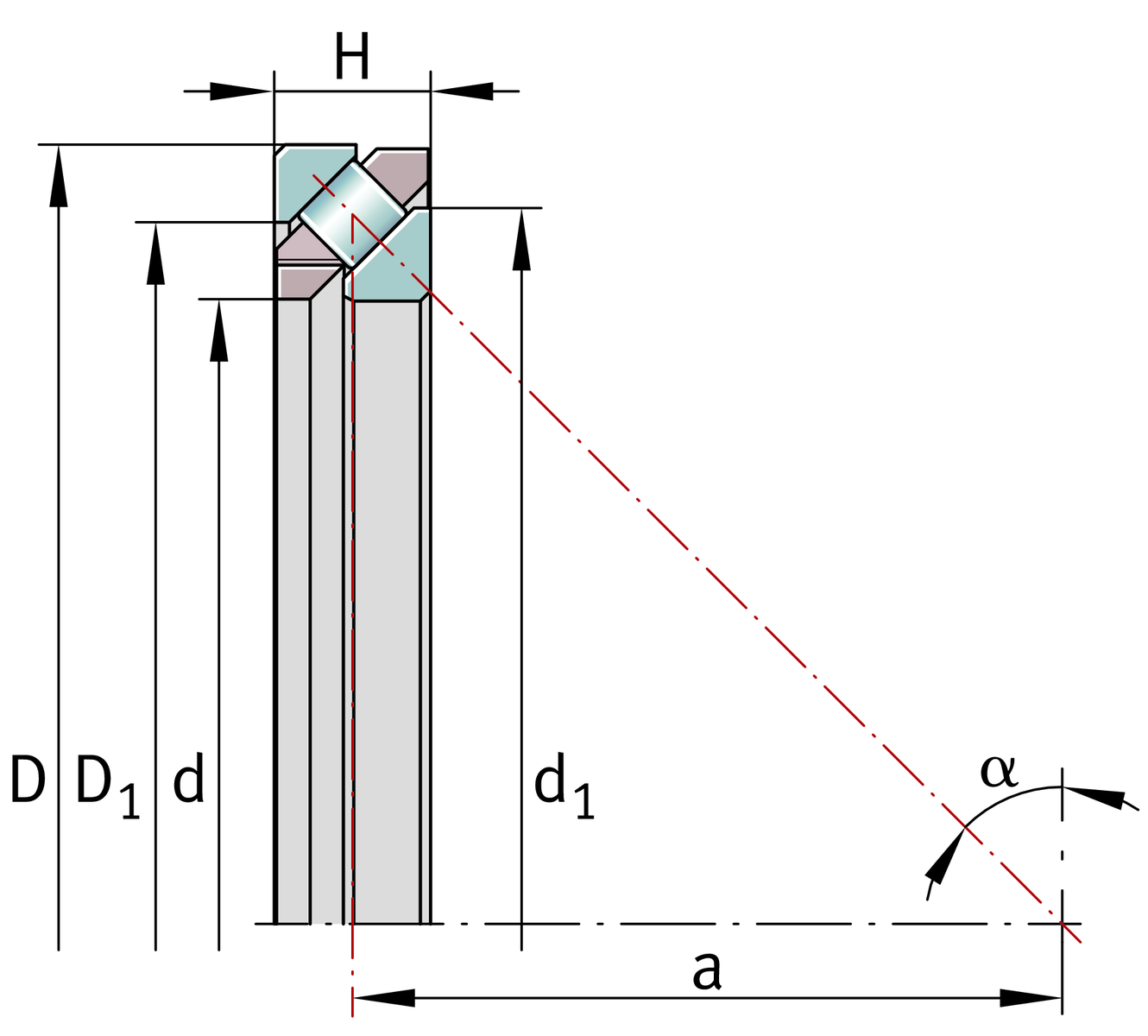

Dimensions
| D1 | 307.4 mm | Bore diameter outer ring |
| d1 | 312.6 mm | Outside diameter inner ring |
| a | 155 mm | Contact point distance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
