Main Dimensions & Performance Data
| d | 17 mm | Bore diameter inner ring |
| D | 30 mm | Outside diameter |
| H | 7 mm | Height |
| Cr | 3,500 N | Basic dynamic load rating, radial |
| C0r | 3,550 N | Basic static load rating, radial |
| Ca | 8,400 N | Fatigue load limit, axial |
| Coa | 17,700 N | Basic static load rating, axial |
| Cur | 610 N | Fatigue limit load, radial |
| Cua | 2,480 N | Fatigue limit load, axial |
| nG | 3,200 1/min | Limiting speed |
| nϑr | 7,000 1/min | Reference speed |
| ≈m | 6.52 g | Weight |

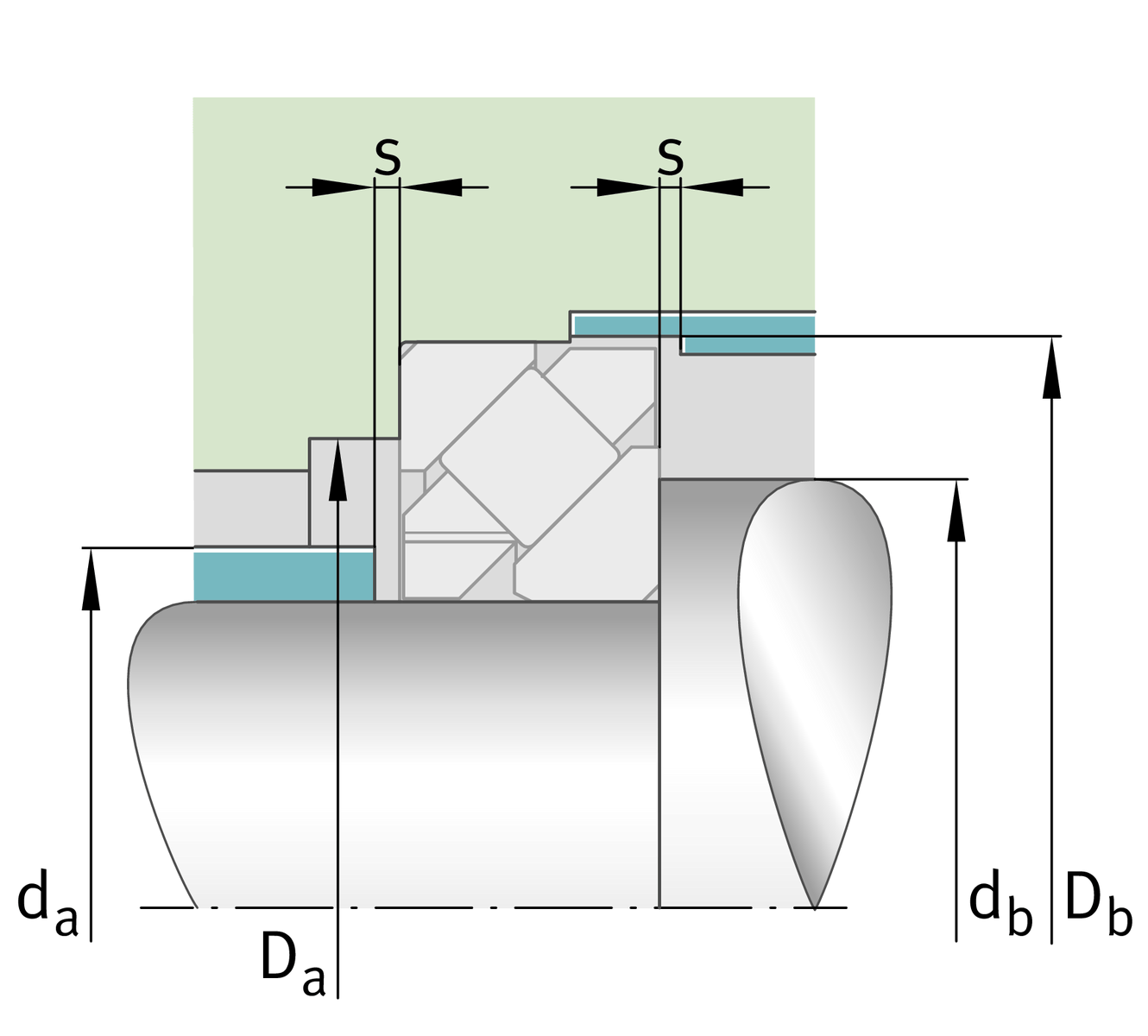

Mounting dimensions
| Da | 22.5 mm | Maximum diameter of housing shoulde |
| db | 24.5 mm | Minimum shaft shoulder |
| Dbmin | 31 mm | Housing undercut for cage |
| s | 1 mm | minimum distance |

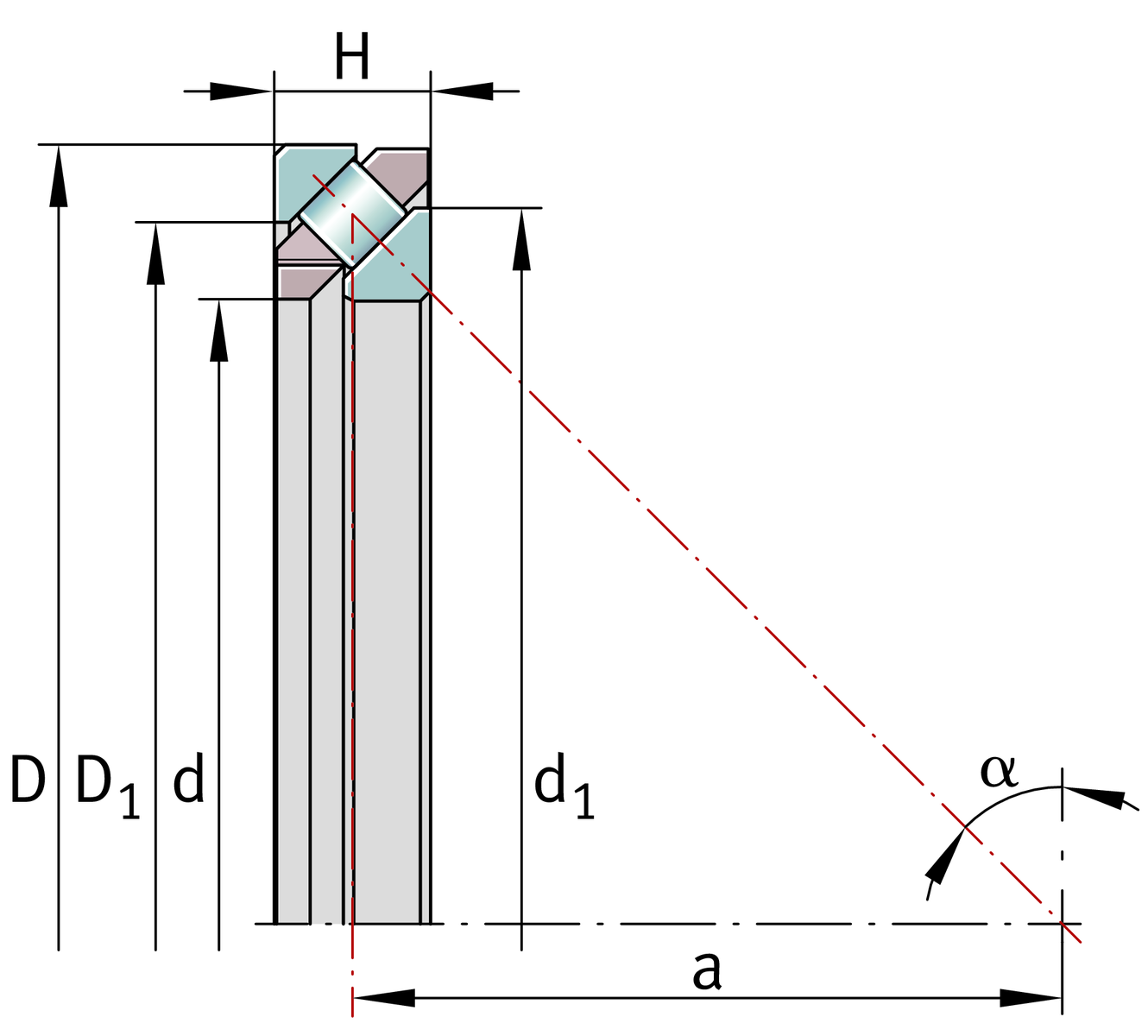

Dimensions
| D1 | 22.5 mm | Bore diameter outer ring |
| d1 | 24.5 mm | Outside diameter inner ring |
| a | 11.75 mm | Contact point distance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
